Description

FT232RL main control chip,fast speed and good stability
Support Windows XP/WIN7/WIN8/WIN10 32/64-bit system
Stable speed can reach 3Mbps(3 times of 921600)
Power supply VCC and signal level(including flow control pin CTS/RTS/DTR/RI/DCD)can be freely switched at 5V/3.3V/1.8V to adapt to different voltage systems
Integrated power(blue),receive(green),transmit(red)three indicators
On-board 500mA self-recovery fuse,automatic disconnection when overcurrent/short circuit,effectively protect computer security
Strong power supply capacity,maximum output of 500mA current,can drive most single-chip microcomputer system board
Integrated protection diode,the signal line occasionally abnormal voltage will not damage the module
Lead out CTS/RTS/DSR/RI/DCD signal pins,which can be easily controlled by hardware
Small size,high integration,PCB only 20*50mm,only occupy the width of a USB interface

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

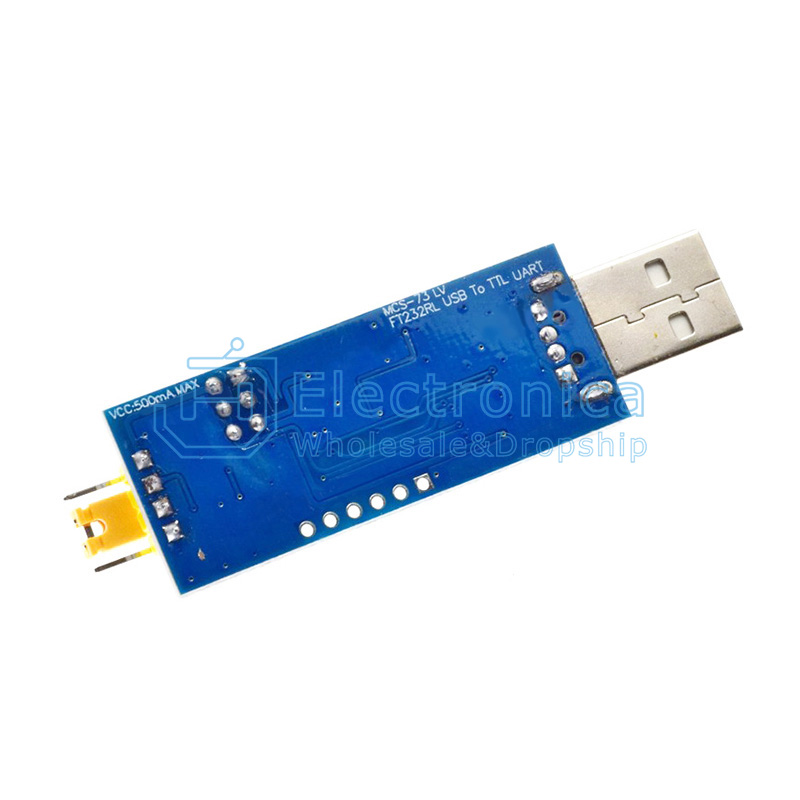

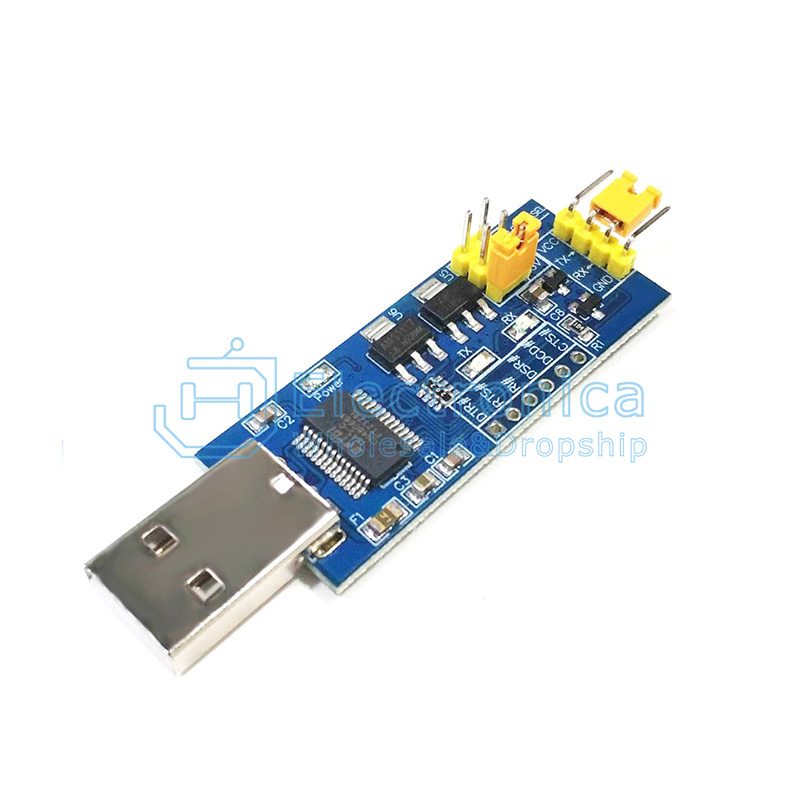

FT232RL USB to TTL Serial Port Module

SKU : YXS1355 Brand :

Price : $ 1.72

100 +: $1.72500 +: $1.721000 +: $1.72
