Description

1. Working voltage: DC 2.7-12v;
2. Static power consumption: < 0.1mA;
3. Delay time: 2 seconds;
4. Blocking time: 2 seconds;
5. Trigger mode: repeatable;
6. Sensing range: ≤ 100 degree cone angle, 3-5M（ According to the specific lens)
7. Working temperature: - 20 - + 60 ℃

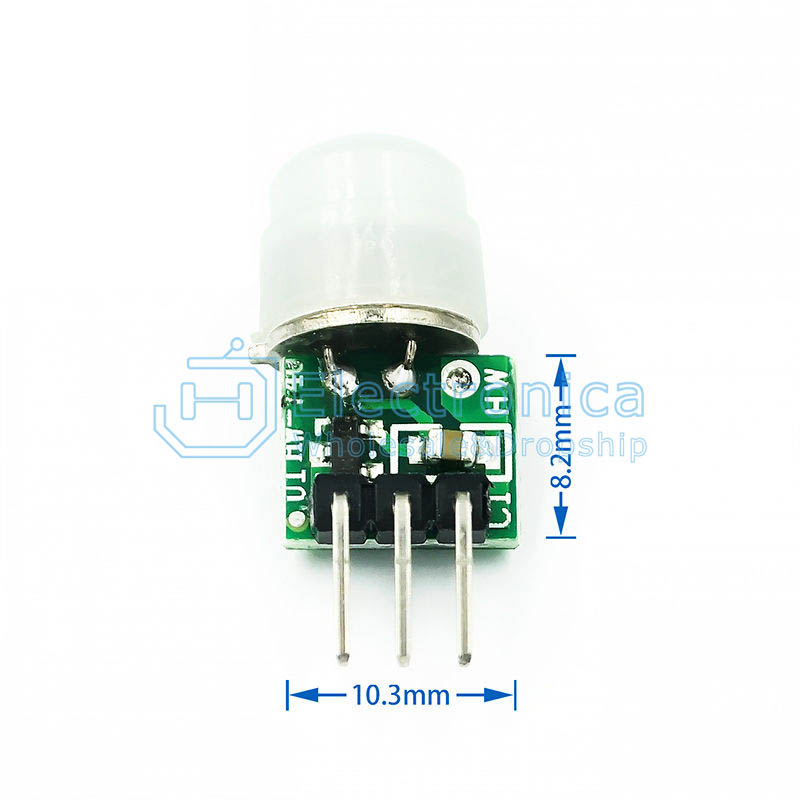

8. PCB dimension: 10mm * 8mm
9. Module lens: small lens

Functional features:
a. The anti-interference is enhanced, and the internal digital signal processing is used to directly output high and low levels.
b. Repeatable triggering mode: after the induction output is high, in the delay period, if the human body is active in its induction range, its output will remain high until the delay is left, then it will become low level (that is, the induction module will automatically extend a delay period after detecting each activity of the human body, And the time of the next activity is the starting point of the delay time).

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

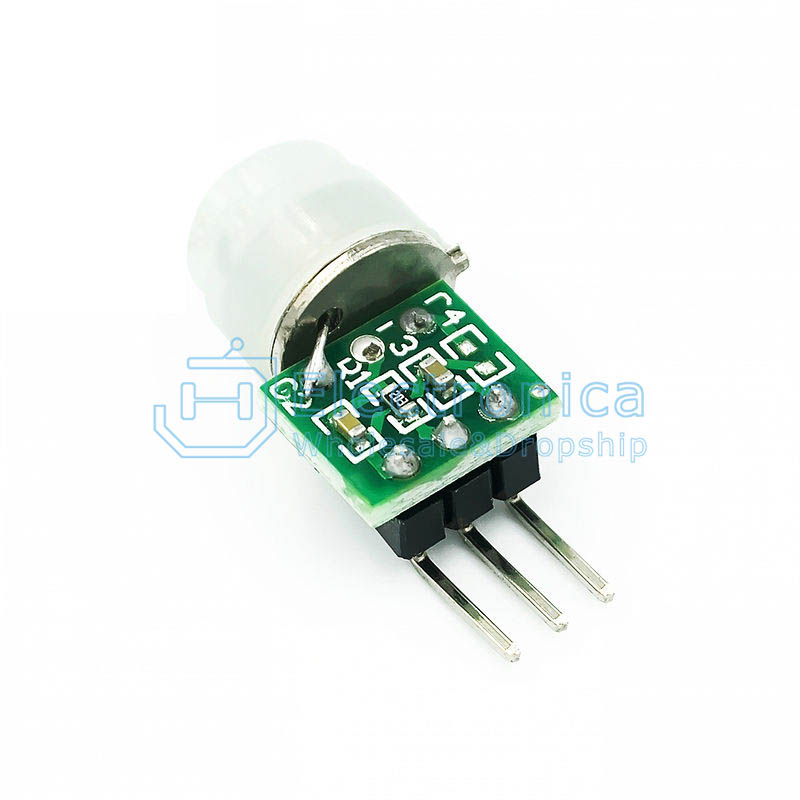

AM312 Mini Infrared Human Motion Sensor

SKU : YXB182 Brand : JH Stock

Price : $ 0.38

100 +: $0.38500 +: $0.381000 +: $0.38
