Description

Function Description:
Due to the fact that the TFT01 LCD operates at a voltage of 3.3V, it cannot be directly used on a standard Arduino motherboard. Therefore, in order to make the TFT01 LCD compatible with a standard Arduino motherboard, this TFT Shield is designed to directly plug into the Arduino motherboard and use the TFT01 LCD module.
The TFT01 LCD currently supports 16 bit mode, and since Mega2560 has sufficient IO, there will not be a situation where only one set of SD card interfaces or touch screen interfaces can be used simultaneously, as encountered in 328S.

Attention:

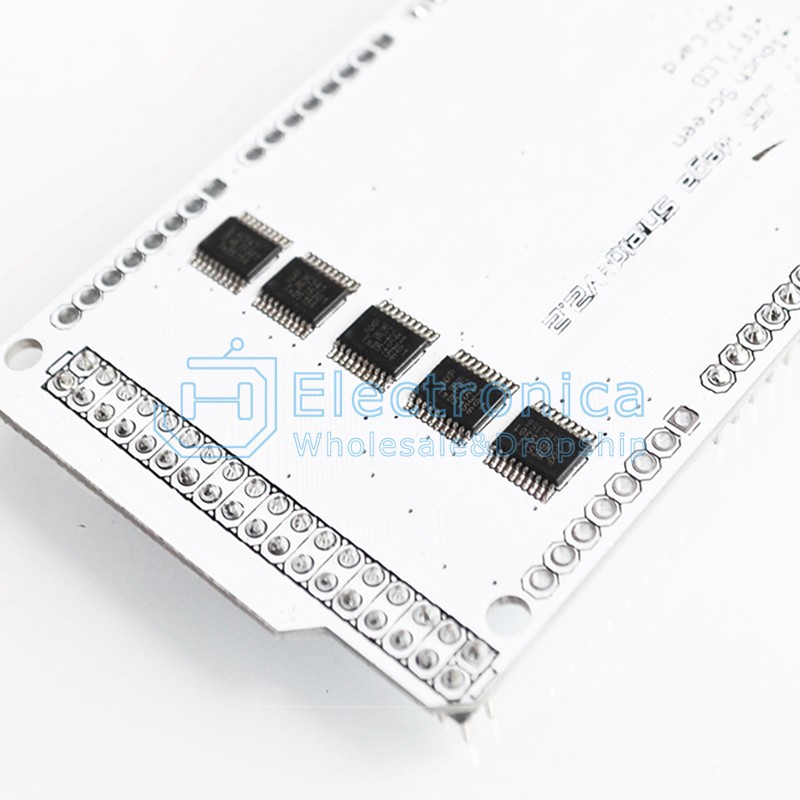

The TFT-3.2 Shield has been replaced with a white version, using IC voltage divider instead of resistance voltage divider, which is more stable, with the same usage and price.
This TFT-3.2 Shield adapter is only compatible with the TFT-3.2 LCD touch screen provided by EF Electronics. If it is used for other TFT products, we are not responsible for LCD damage caused by voltage, voltage, or current mismatch.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

3.2'' TFT01 LCD Shield Touch Expansion Board

SKU : YXS1697 Brand :

Price : $ 1.70

100 +: $1.70500 +: $1.701000 +: $1.70

Quantity :

- +

ADD TO CART
