Description

Product Parameter:
1. High precision potentiometer that can control the servo in real time
2. Three onboard overcurrent protection interfaces (0.1.2 interface) can prevent excessive current from burning out the servo motor
3. High resolution PWM signal, onboard 8-bit MCU, can improve control accuracy
4. Support manual servo controller/servo reset to center, switch through function buttons
5. Precision of servo controller: 0.09° (referring to the PWM limit change value of 1us)
6. Adapt to two power supply connection methods: lithium battery/power adapter (5-8.4V)
7. The onboard 6-channel PWM digital servo interface can be controlled through high-precision potentiometers
8. Size: 76mm*53mm
9. Weight: 37g
Product Introduction:
6 channel rotary servo controller onboard 6-way PWM digital servo interface, using high-precision potentiometers to achieve servo synchronization controller, servo return to center reset and other functions. The controller board is equipped with 3-way overcurrent protection, which can prevent excessive current from burning out the servo, making it very suitable for testing and robot development of various types of servos.
Two Control Modes:

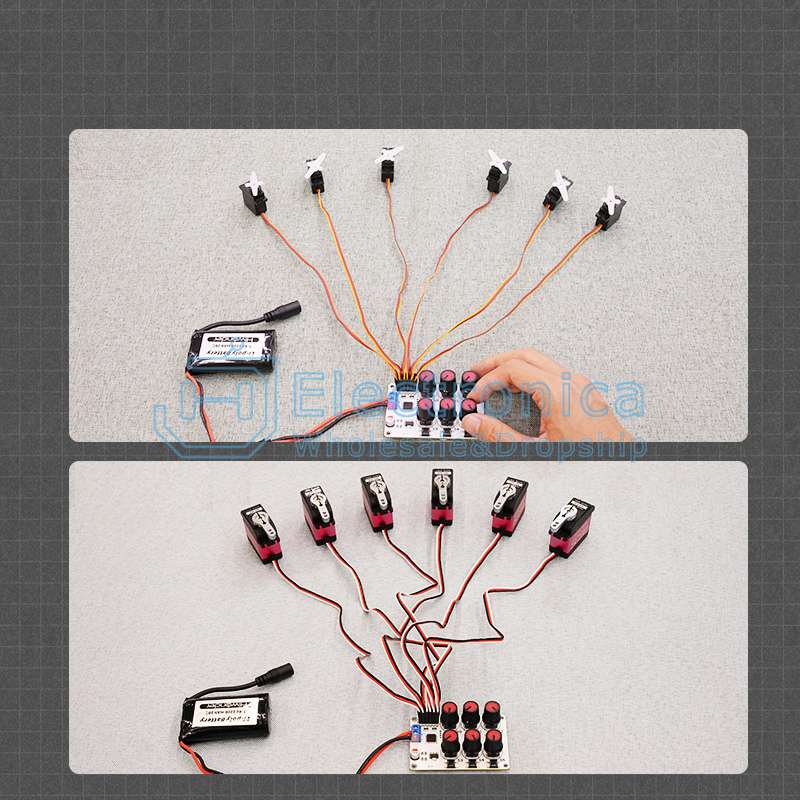

1. Manual control of servos: The angle rotation of six servos can be controlled in real-time through high-precision potentiometers.
2. Rapid centering of the servo: By pressing the reset button, the angle of the 6-way servo can be reset to 90°.
Common power supply methods:
1. Lithium battery power supply: can be connected to 5-8.4V lithium batteries.
2. Power adapter power supply: can be connected to a 5-8.4V power adapter.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

6 Channel Rotary Servo Control Board

SKU : YXS1708 Brand :

Price : $ 15.32~34.26

100 +: $15.32~34.26500 +: $15.32~34.261000 +: $15.32~34.26

Style：

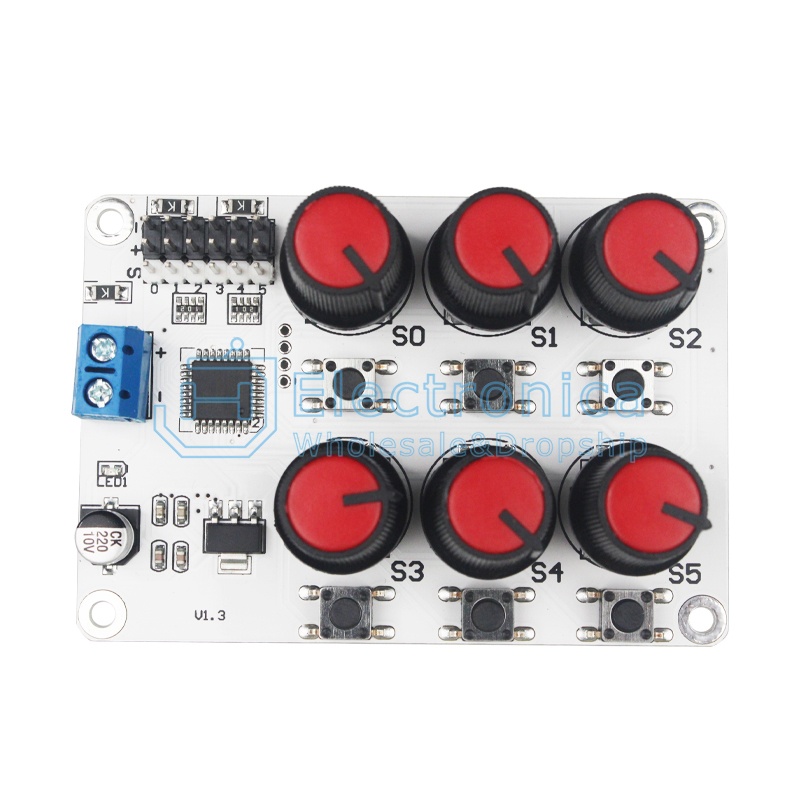

6 Channel Knob Control Board

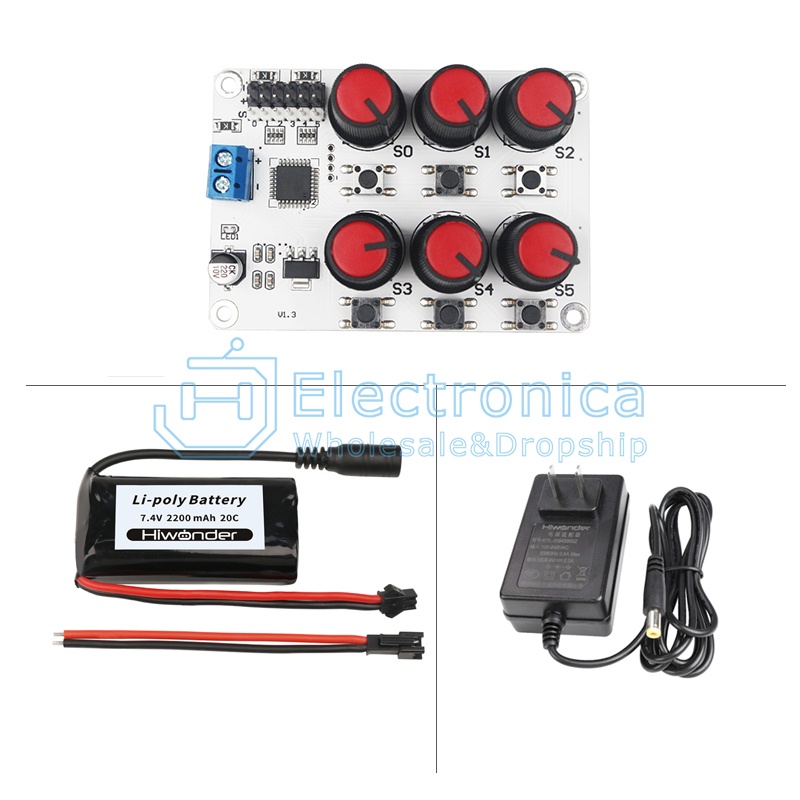

Controller+7.4V Lithium Battery+Charger

Quantity :

- +

ADD TO CART
