Description
Real-time sampling rate:1Msps
Accuracy:12Bit
Sampling buffer depth:1024 bytes
Analog bandwidth:0-200KHz
Vertical sensitivity:10mV/div-5V/Div (progressive by 1-2-5)
Input impedance:1MΩ

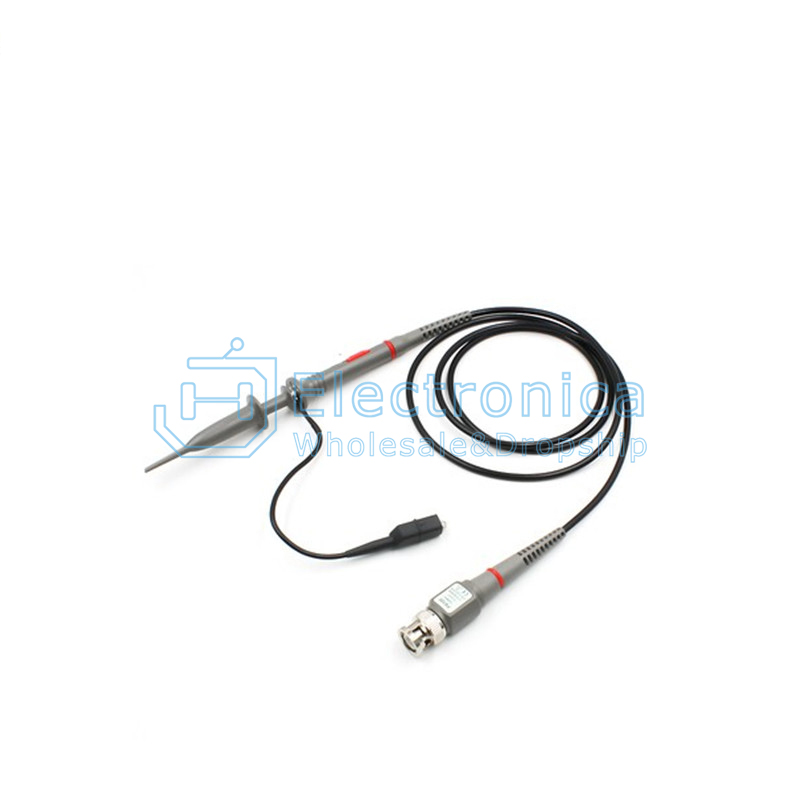

Input voltage:50Vpp (1:1 probe),400Vpp (10:1 probe)
The coupling modes include DC/AC/GND.

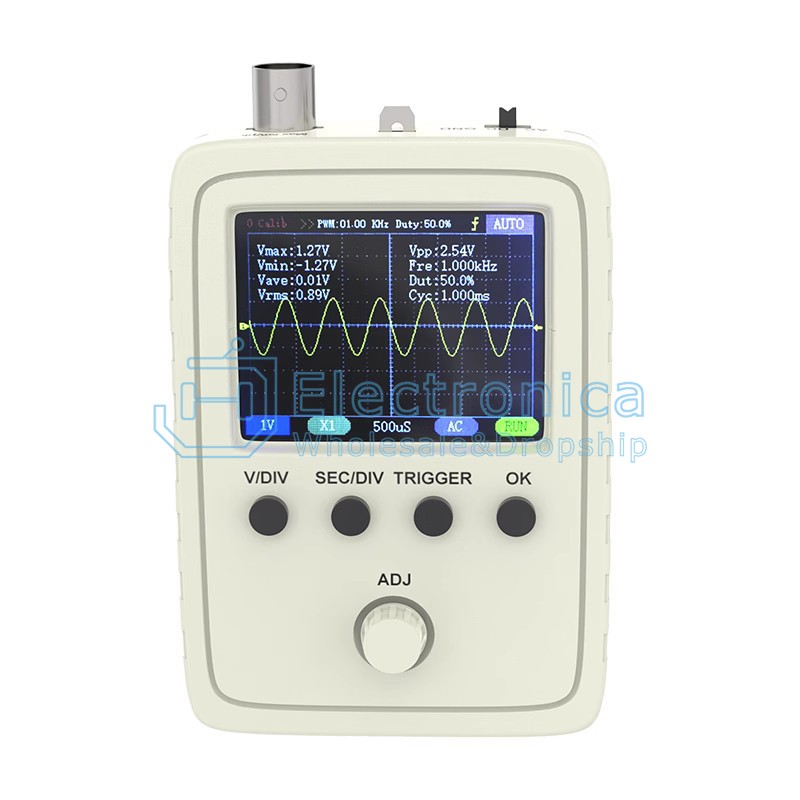

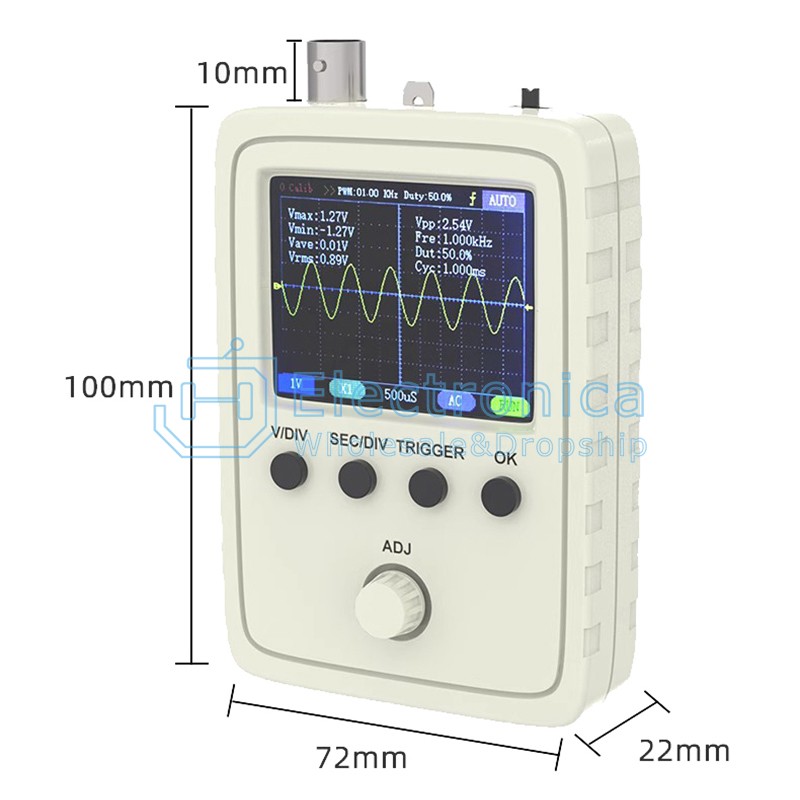

Model:DSP150
Channel:1 channel
Screen:2.4 inch HD TFT screen
Real-time sampling rate:1Msps
Accuracy:12Bit
Vertical sensitivity:5mV/div-20V/Div (progressive by 1-2-5)

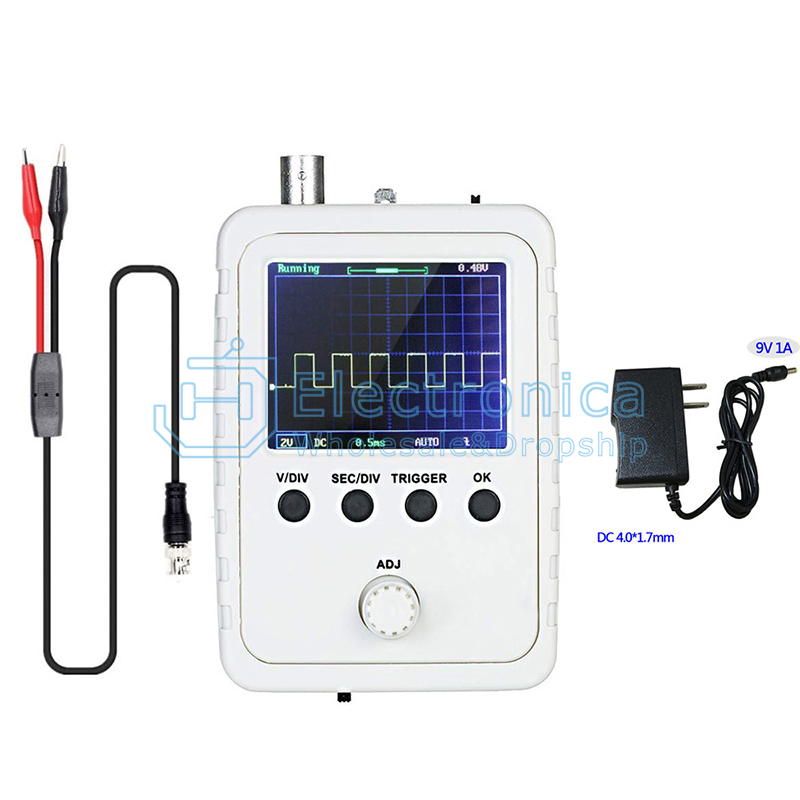

Supply voltage:9V
Supply current:≥200mA
Input impedance:1MΩ
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

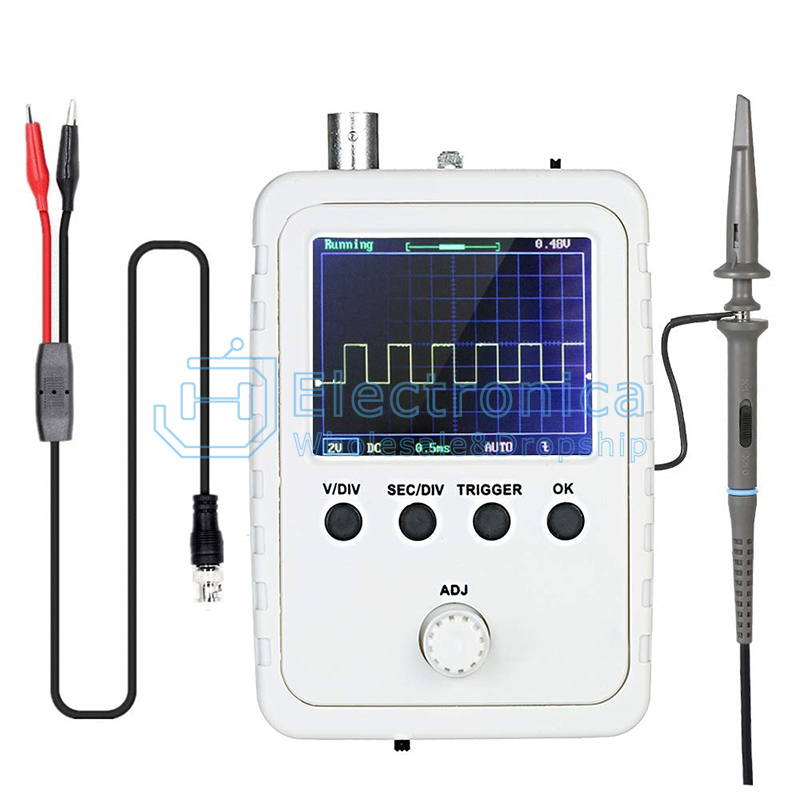

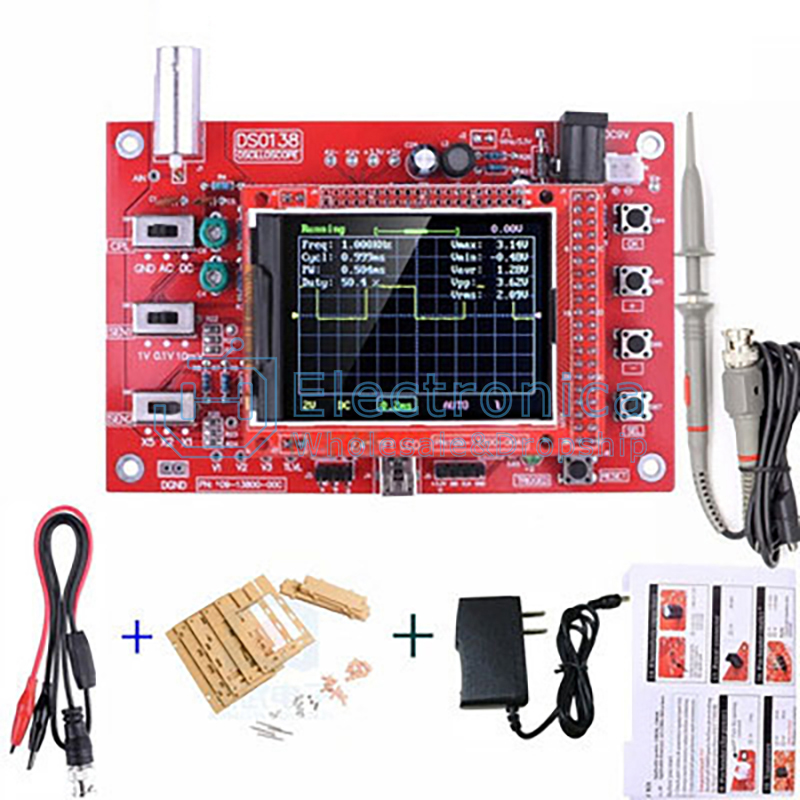

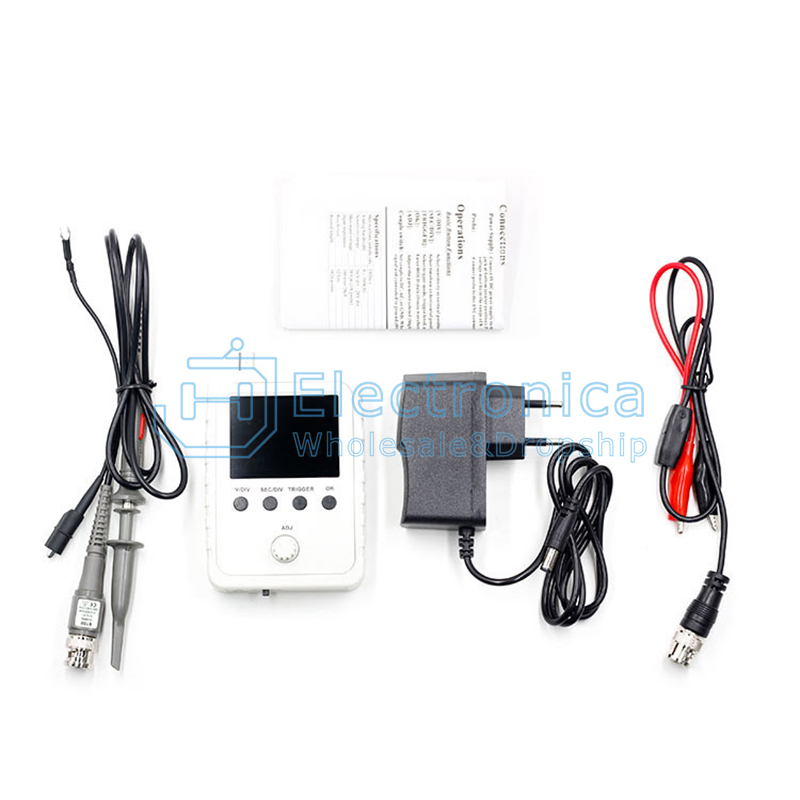

DSO138/DSO150 Digital Oscilloscope Kit
SKU : YXS1766 Brand :
