Description

Product specifications: 0820/0827/0834/1027/1030/1034
Rated current: 80mA
Rated voltage: 3V
Starting voltage: 2.3V
Product diameter: 8mm/10mm

0820
Product diameter: 8mm
Product thickness: 2.0mm
Rated speed: 12000±3000rpm
0834
Product diameter: 8mm
Product thickness: 3.4mm
Rated speed: 9000rpm
0827
Product diameter: 8mm
Product thickness: 2.7mm
Rated speed: 12000±3000rpm

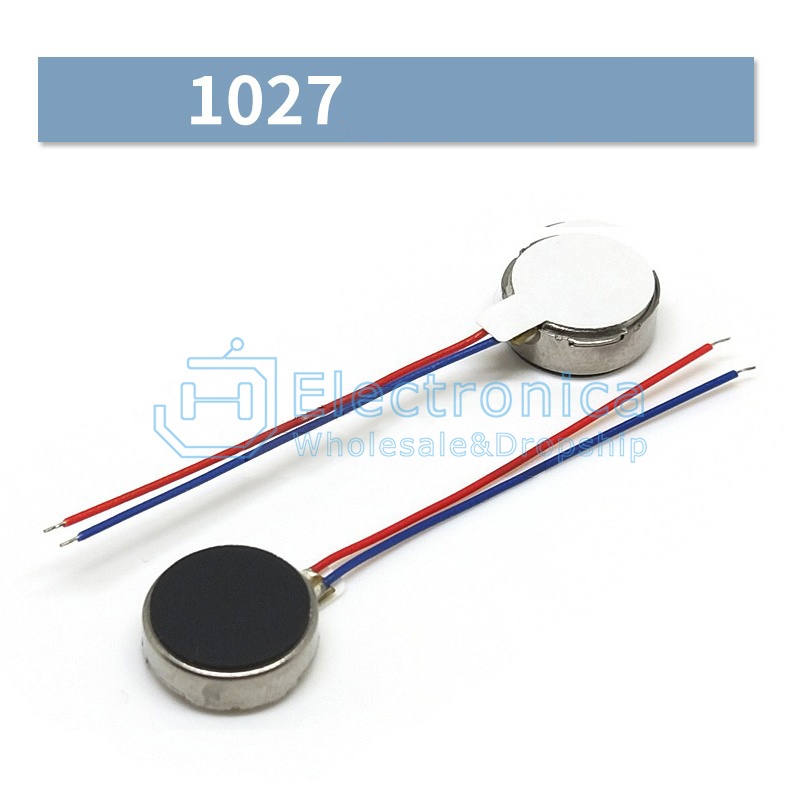

1027
Product diameter: 10mm
Product thickness: 2.7mm
Rated speed: 11000±2500rpm

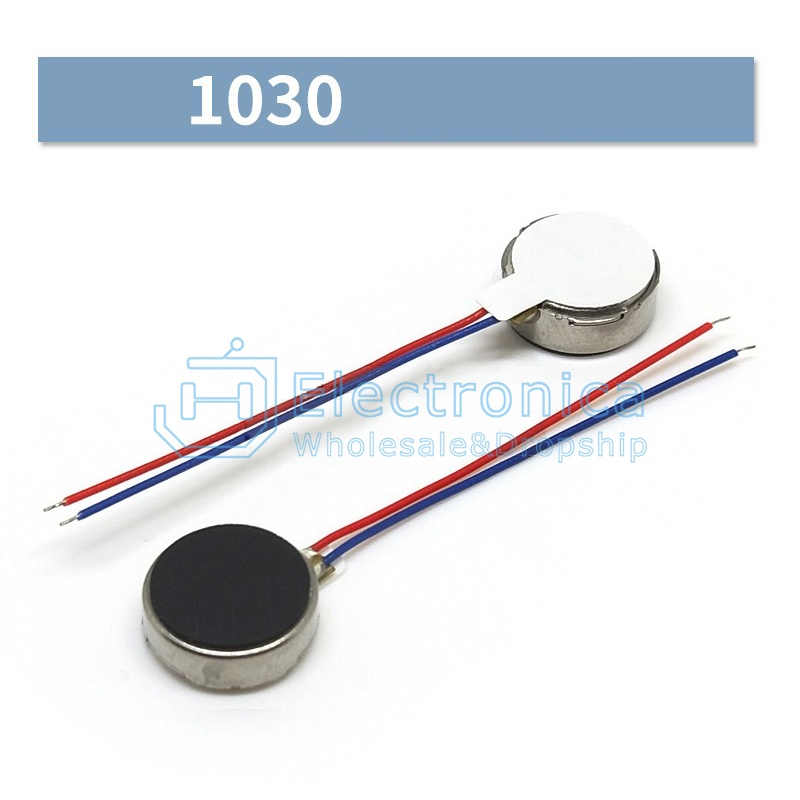

1030
Product diameter: 10mm
Product thickness: 3mm
Rated speed: 12000±2500rpm

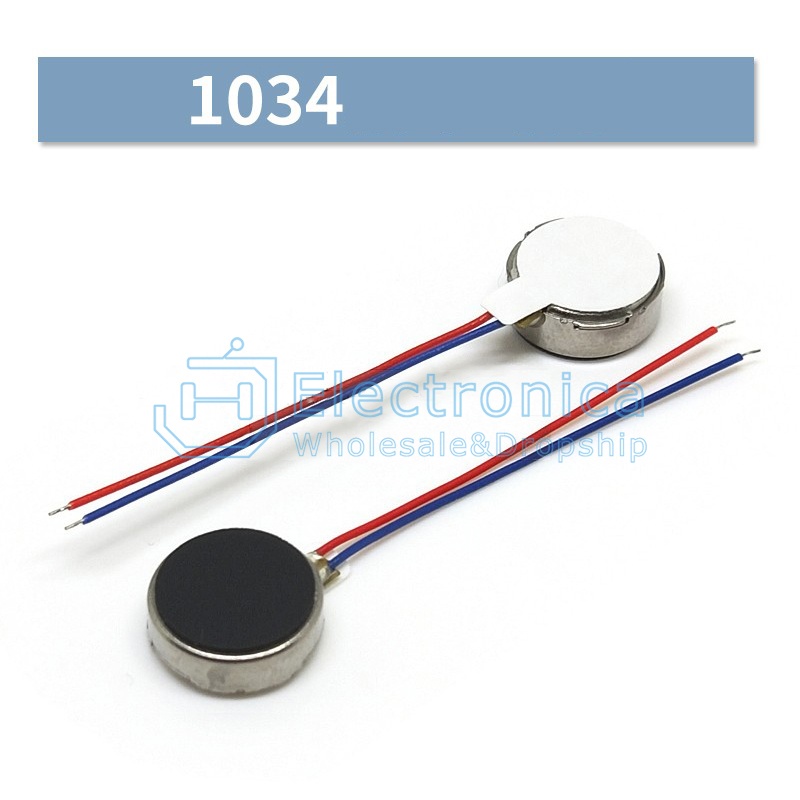

1034
Product diameter: 10mm
Product thickness: 3.4mm
Rated speed: 12000±2500rpm
Operational Principle
1. The direct current is used through sliding contact between the brush and the commutator (commutator), the current flows into the coil, and the energized coils of different windings cut magnetic lines in the magnetic field formed by the stator group to generate electromagnetic force. The torque formed by this electromagnetic force causes the rotor to rotate, and the current flowing through the brush circulates through the commutator, achieving rotor motion.
2. Due to the installation of an eccentric mass oscillator on the rotor, the center of gravity of the rotor deviates from the center of the axis, and the imbalance of the object, the center of gravity of the rotor constantly changes during rotation, resulting in vibration.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

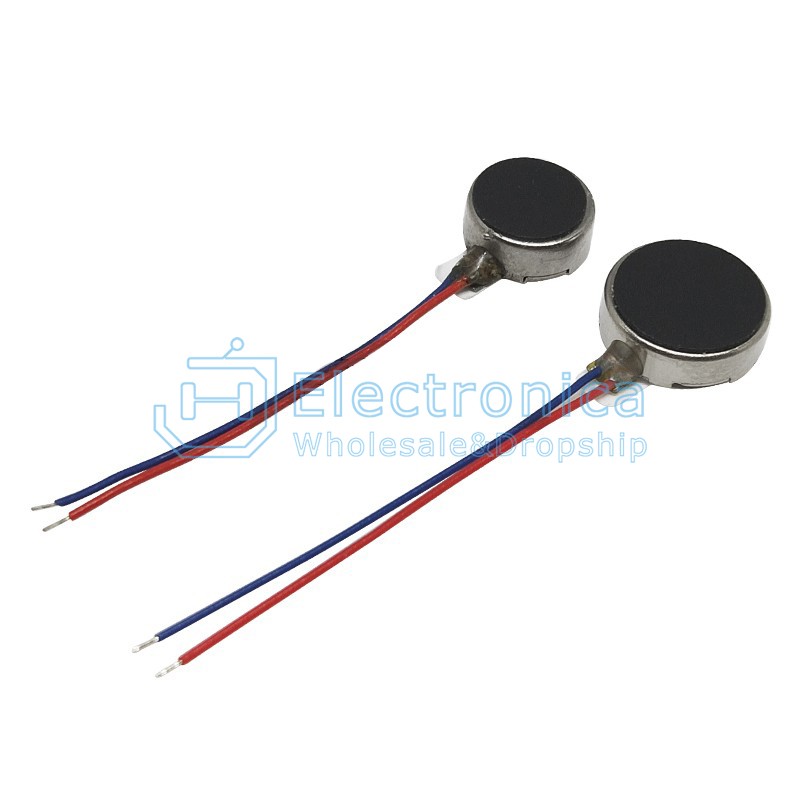

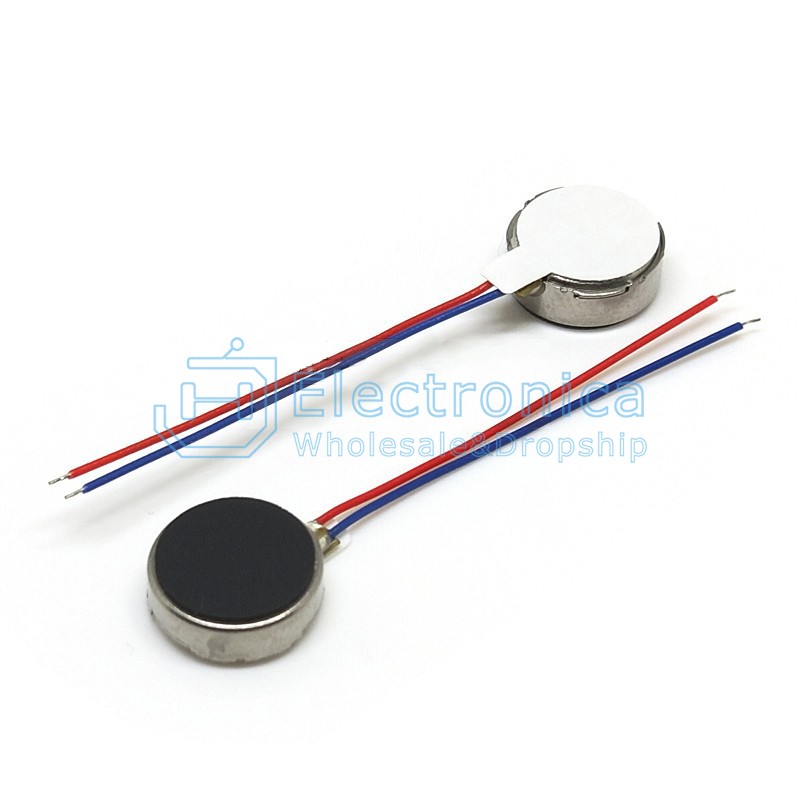

0820/0827/0834/1027/1030/1034 3cm Flat Motor

SKU : YXS1705 Brand :

Price : $ 0.11~0.15

100 +: $0.11~0.15500 +: $0.11~0.151000 +: $0.11~0.15
