Description

1. Main technical characteristics
2. Rated load: DC30V 0.1A
3. Operating temperature: -25℃~+85℃
4. Relative humidity: 85%
5. External dimensions: 5.8*5.8mm
6. Technical Characteristic:
6-1 Action force: ≤ 3N
6-2 Contact resistance:<100mΩ
6-3 Insulation resistance:>100MΩ
6-4 Voltage withstand: AC 250V (50-60HZ)1 min
6-5 Solderability: The contact feet of the connector should be immersed in solder with a melting temperature of 240±5℃ for a soaking time of 3±0.5 seconds, and the tinning area should account for more than 90% of the immersion area.
6-6 Welding resistance: The manual welding temperature is controlled at 350+5℃ for 3±0.5s, and the automatic welding temperature is controlled at 240±5℃ for 3±1s. After the test, there are no abnormalities in the appearance and electrical performance.
6-7 Vibration resistance: 50Hz amplitude of 2 millimeters, vibration in 3 directions for 5 minutes each, without mechanical or electrical performance faults.
6-8 Salt spray experiment: After the experiment, the sediment was washed away with water at a salt solution concentration of 5±1% (mass percentage) and a temperature of 35±2℃ for 24±1 hour. There were no obvious corrosion spots on the metal parts. 6-9 lifespan (times):>10.000 times.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

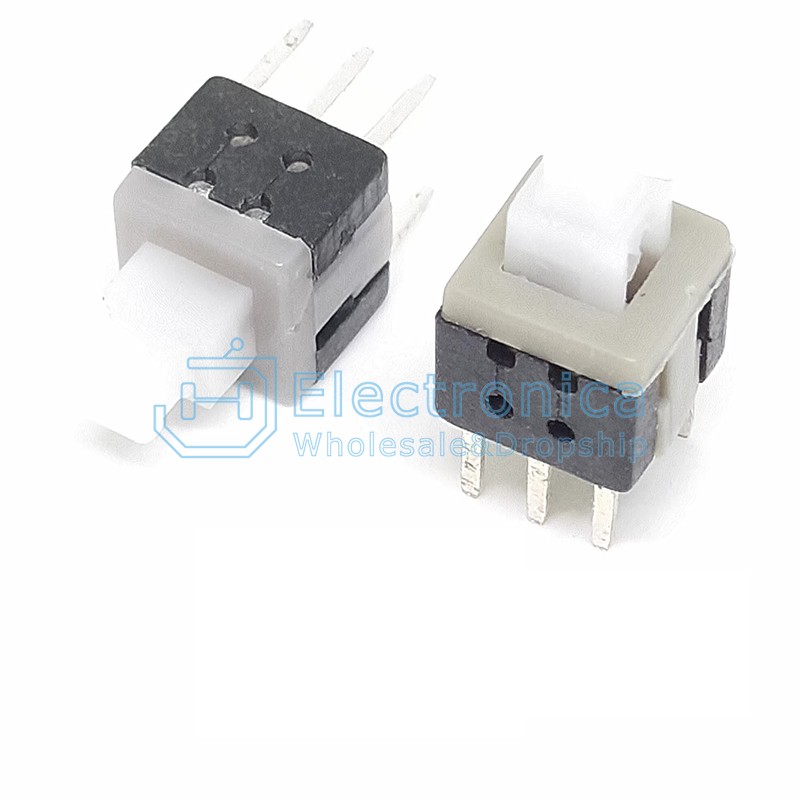

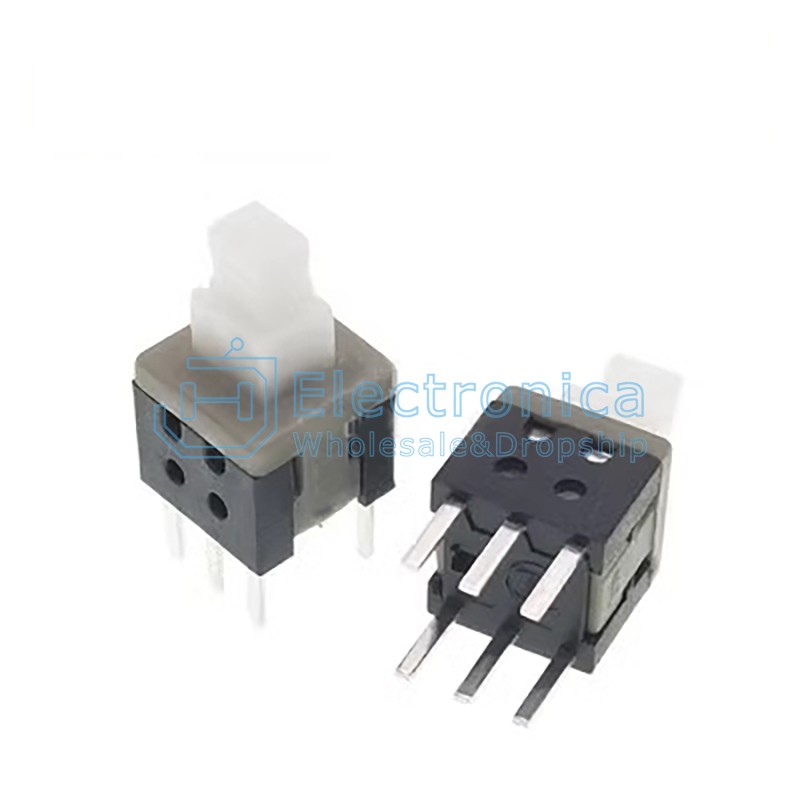

5.8*5.8mm Self-locking/Unlocking Double Row 6P Button Switch

SKU : YXS1717 Brand :

Price : $ 0.02

100 +: $0.02500 +: $0.021000 +: $0.02
