1. Product overview xy-v17b is an intelligent voice module independently developed by our company. It integrates IO segment trigger, UART serial port control, one_ Line single bus serial port control, standard MP3 and other functions; support mp3, wav decoding format, maximum support 32g TF card storage, USB data cable can be connected to the computer to update TF card to store audio files.

2. Product characteristics
1. Support mp3, wav decoding format.
2. Support sampling rate (kHz): 8 / 11.025/12/16/22.05/24/32/44.1/48.
3. 24 bit DAC output, dynamic range support 90dB, SNR support 85dB.
4. It fully supports FAT16 / FAT32 file system, supports 32g TF card and 32g USB flash disk.
5. Support UART serial port control voice broadcast function, can control playback, pause, music selection, volume addition and subtraction functions, the maximum selection of 65535 tracks, baud rate of 9600 bit / s.
6. Support IO trigger function. 8 tracks are triggered by 8 IO ports individually or 255 tracks are triggered by 8 IO ports.
7. Support one_ Line single bus serial port control, can control playback, pause, music selection, volume addition and subtraction functions.
8. Support three configuration io for mode selection.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

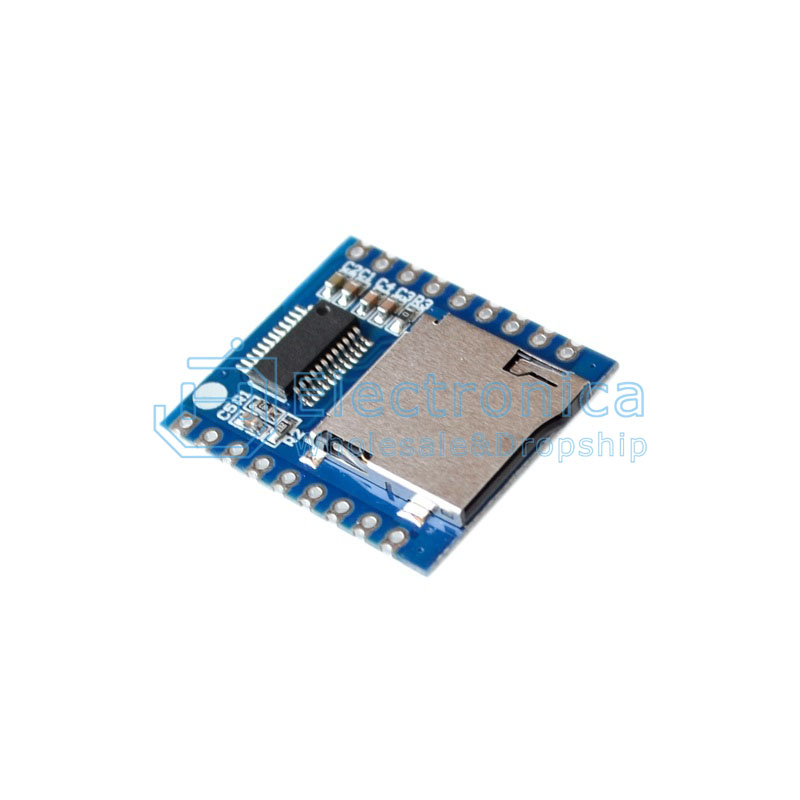

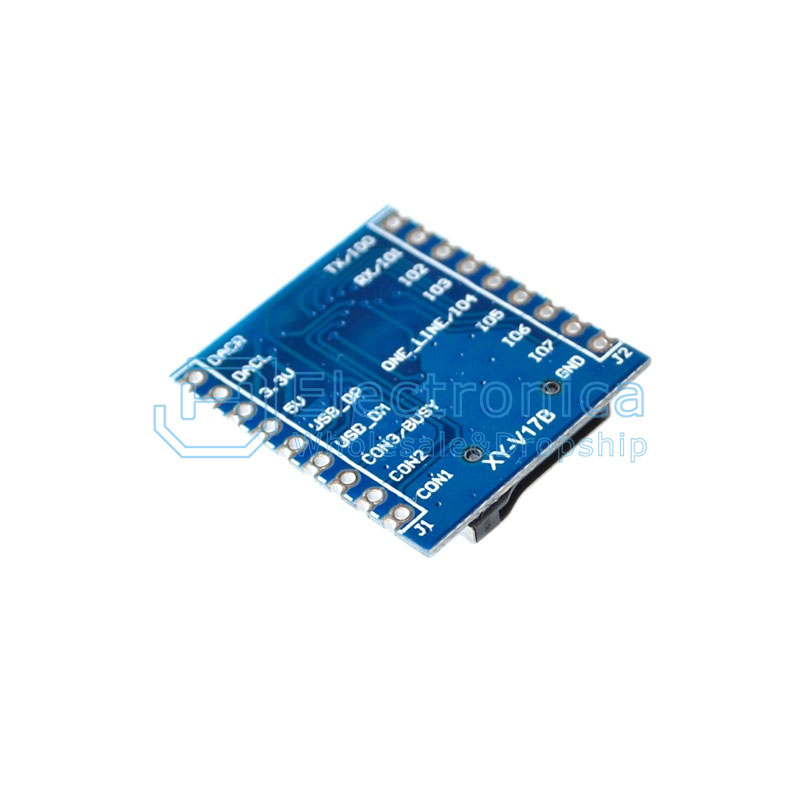

XY-V17B Mini Serial Control MP3 Player Audio Voice Module

SKU : YXB109 Brand : JH Stock

Price : $ 1.13

100 +: $1.13500 +: $1.131000 +: $1.13
