Description

Features:
1.Support MP3 and WAV decoding formats
2.Support sampling rate (KHz):8/11.025/12/16/22.05/24/32/44.1/48
3.24-bit DAC output,dynamic range support 90dB,signal-to-noise ratio support 85dB
4.Fully support FAT16/FAT32 file system,maximum support for 32G TF card
5.Comes with 5W class D power amplifier,can directly drive 4Ω, 3~5W speakers
6.UART serial port control voice broadcast function,can control playback,pause,song selection, volume addition and subtraction,etc.the largest selection of 65,535 songs,baud rate of 9600bit / s
7.Support IO trigger playback function,8 IO ports trigger 8 tracks or 8 IO ports to trigger 255 tracks
8.Support One_line single bus serial port control,can control playback,pause,song selection, volume addition and subtraction and other functions
9.Support 3 configuration IO for up to 7 working mode selection,dial switch settings are simple

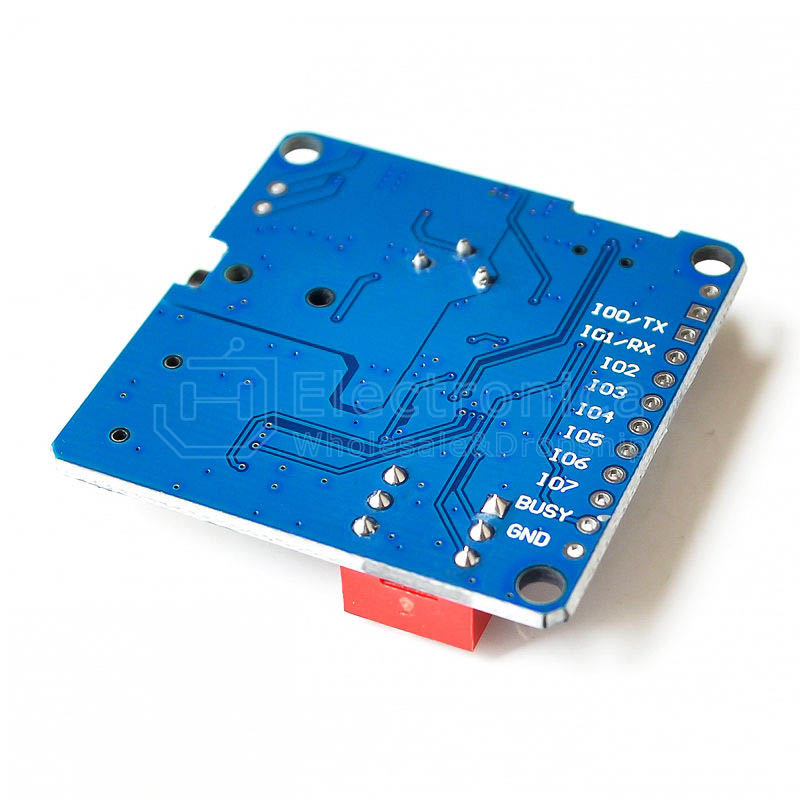

10.Module interface and function definition
Specification:
Model:DY-SV5W
Dimensions:4x4cm/1.57x1.57inch

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

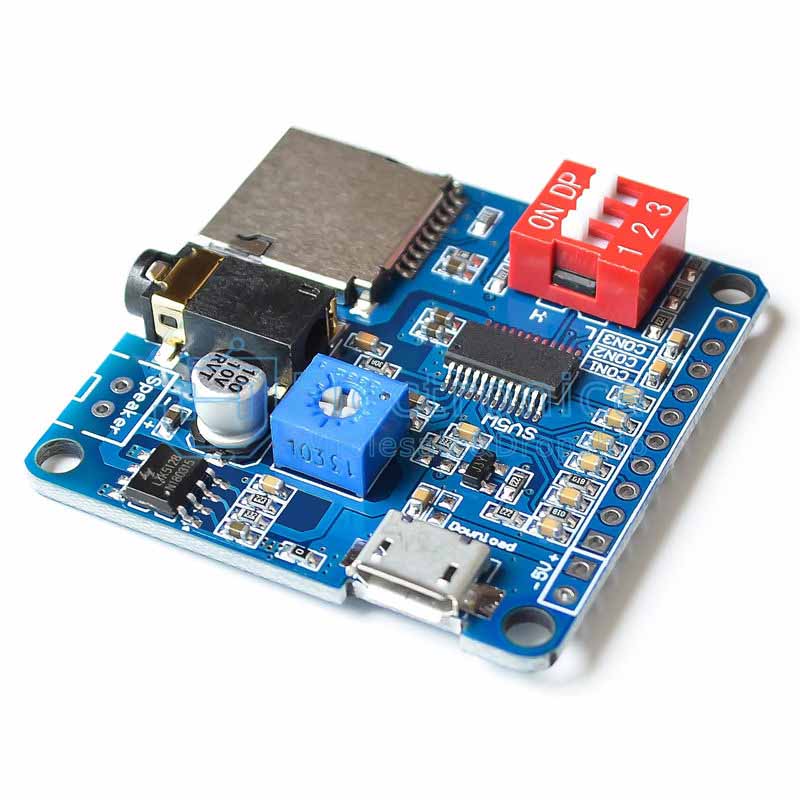

DY-SV5W Voice Playback Module

SKU : YXA666 Brand : JH Stock

Price : $ 2.26

100 +: $2.26500 +: $2.261000 +: $2.26

Quantity :

- +

ADD TO CART
