Description

The Bluetooth audio module requires very high power, otherwise it will affect the audio quality. The power supply must be provided if the LC filter circuit, especially the switching power supply.

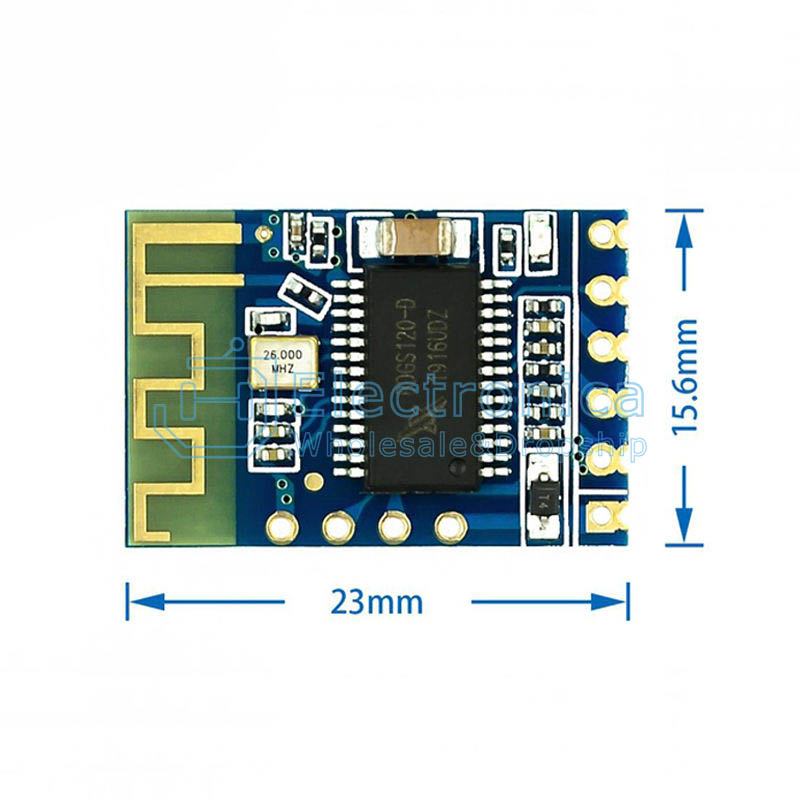

Module size
PCB : 25*15.5*2.4MM
Pin pitch: 2.54MM
common problem:
1, search less than blue:
Generally caused by power interference, the power line must be coupled with the LC filter circuit.
2, whether to support 3.7V power supply:
The module is powered by 5V by default. You can replace the diode on the JDY-62 module with the 0805 OR resistance, or use a wire to short circuit, so that you can use a lithium battery
3, Bluetooth signal is too weak
Do not route or cover copper under the antenna of the Bluetooth module. There must be no metal shielding around the antenna.
4, the current sound is too loud
Generally caused by the power supply interface interference, it is recommended that the power amplifier wiring is not too long, the Bluetooth port and the power port are separated

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

JDY-62A Dual Channel Bluetooth Audio Stereo Module

SKU : YXA608 Brand : JH Stock

Price : $ 0.76

100 +: $0.76500 +: $0.761000 +: $0.76

Style：

JDY-62A
