Description

Working voltage:DC 5V
Size:26mm*23mm
Weight:2.3g
Sample rate is supported(KHz):8/11.025/12/16/22.05/24/32/44.1/48
Dynamic range:support 90dB
Signal-to-noise ratio:support 85dB
Support SD card/TF card/U disk
Support MP3 and WAV decoding formats
24-bit DAC output,dynamic range supports 90dB,and signal-to-noise ratio supports 85dB
Fully support FAT16/FAT32 file system,support up to 32G TF card,support 32G U disk
Support UART serial port control voice broadcast function,which can control playback,pause,song selection,volume increase and decrease and other functions,with a maximum selection of 65535 tracks and a baud rate of 9600 bit/s
Support IO trigger function,8 IO ports trigger 8 tracks alone or 8 IO ports combine to trigger 255 tracks
Support one_line single bus serial port control,which can control playback,pause,song selection,volume increase or decrease and other functions
Support 3 configuration IOs for mode selection

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

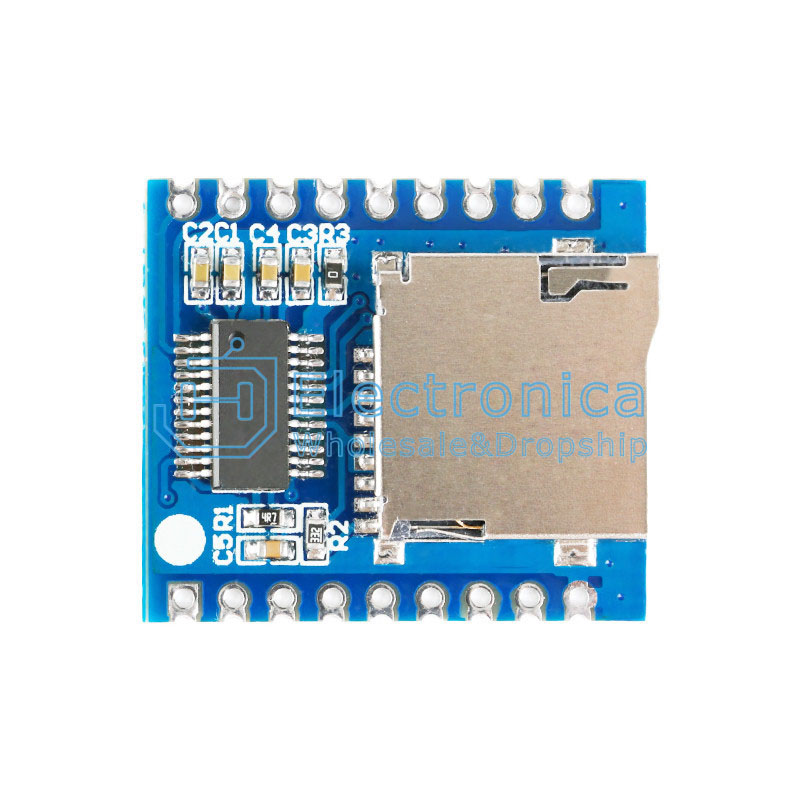

XY-V17B Serial Port Control Voice Module

SKU : YXS966 Brand :

Price : $ 1.06

100 +: $1.06500 +: $1.061000 +: $1.06
