XH-M404 DC power regulator buck regulator significant number of modules 8A digital DC regulator XL4016E1
1. The input voltage range of 4-40V, the output voltage range of 1.25-36V.2. The digital display is the output voltage.

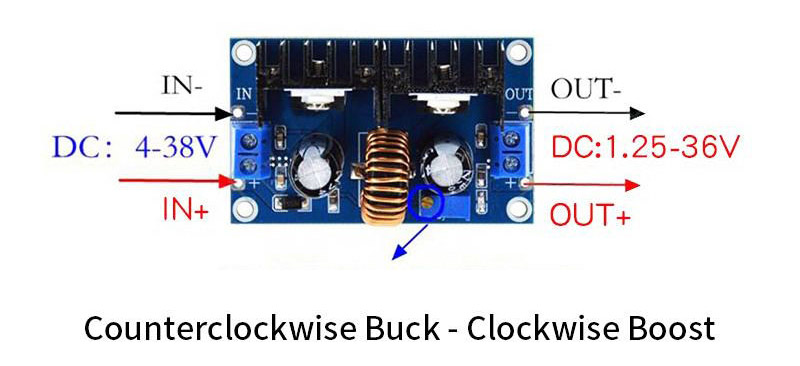

3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.
4. more than 5A current, please enhance heat dissipation.
5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V
Product Name: DC voltage regulator module.
Product Type: XH-M404.
Voltage mode: PWM modulation.
Input voltage: DC4-40V.
Output voltage: DC1.25 ~ 36V.
Maximum current: 8A (long work proposals 5A).
Maximum power: 200W.
Conversion efficiency: 94%.
Switching Frequency: 180KHz.
Protection: short circuit protection, input reverse polarity protection, over-temperature protection (over temperature cut off the output).
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

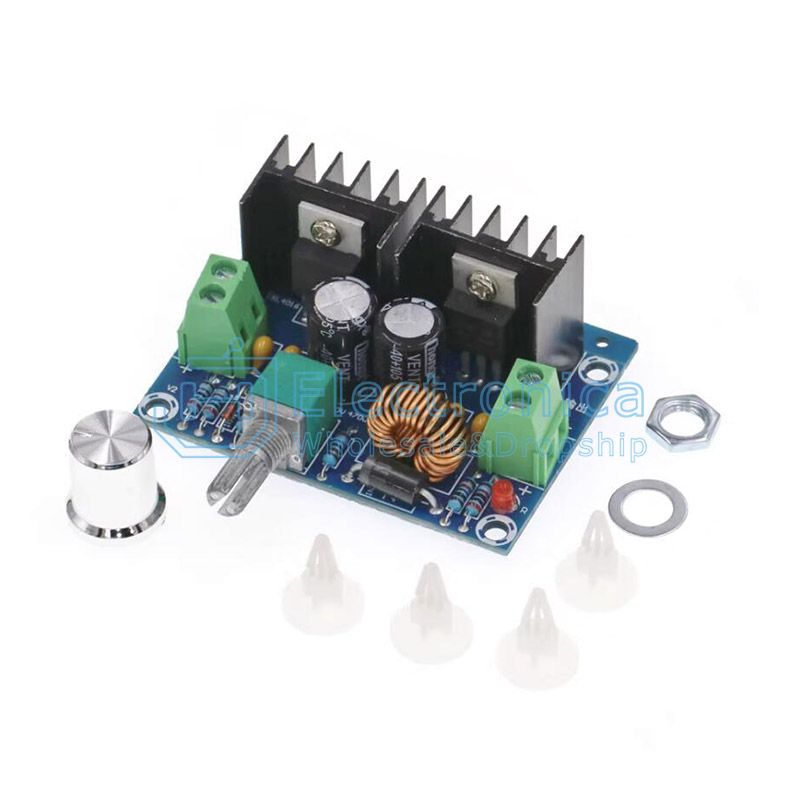

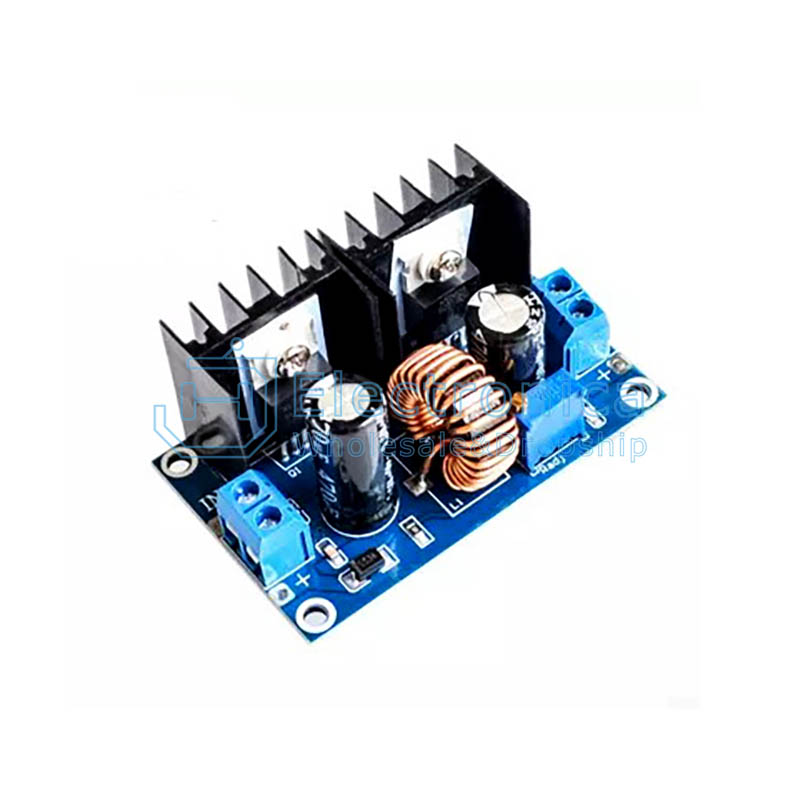

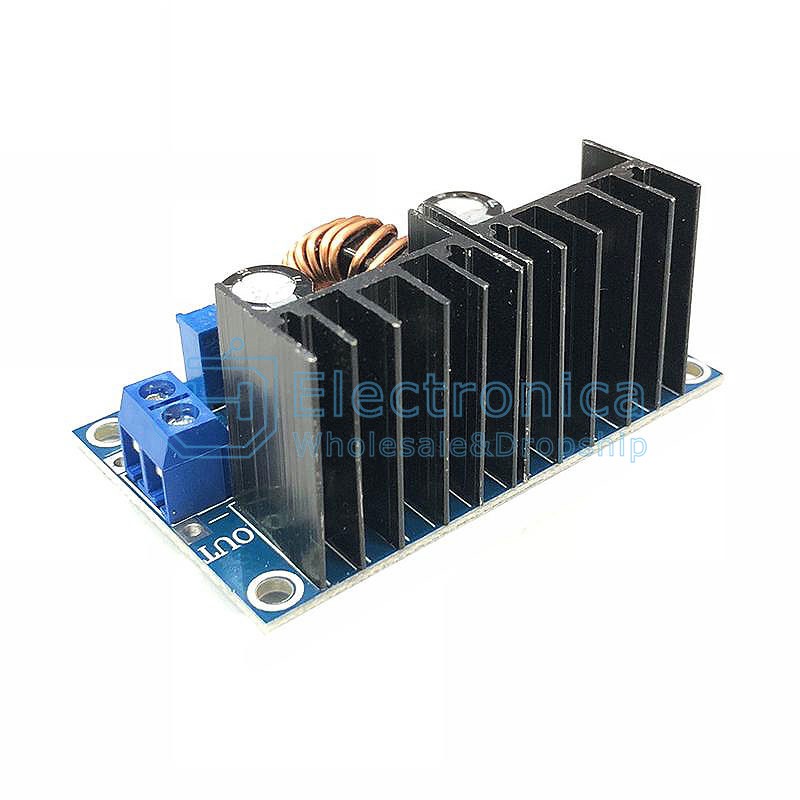

XH-M401 DC-DC Step-down Module Xl4016E1 High Power 8A with Voltage Regulator
SKU : YXK427 Brand : JH Stock
Style:

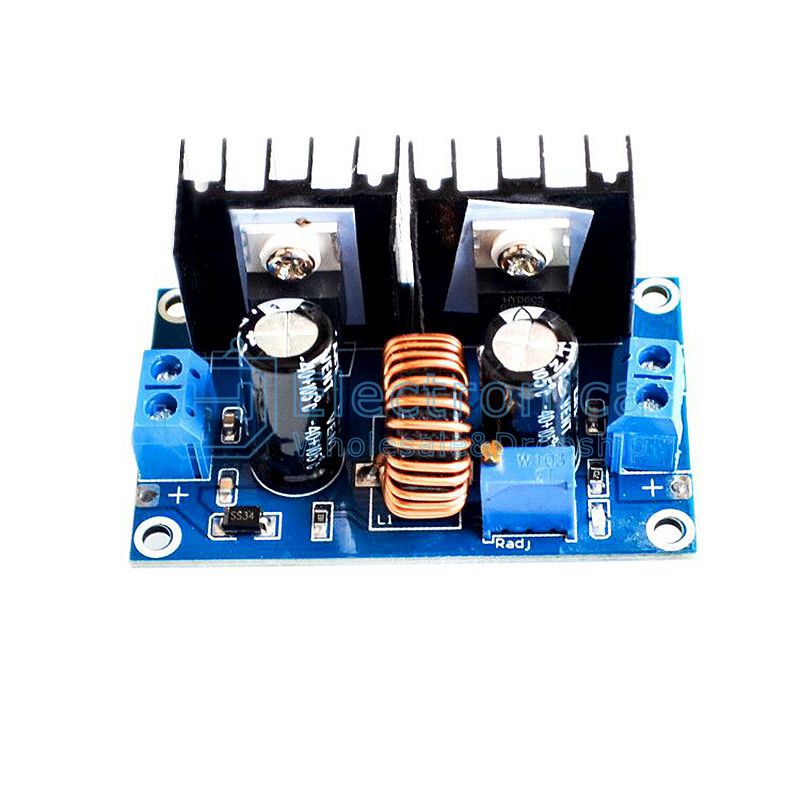

XH-M401 Type-A
XH-M401 Type-B

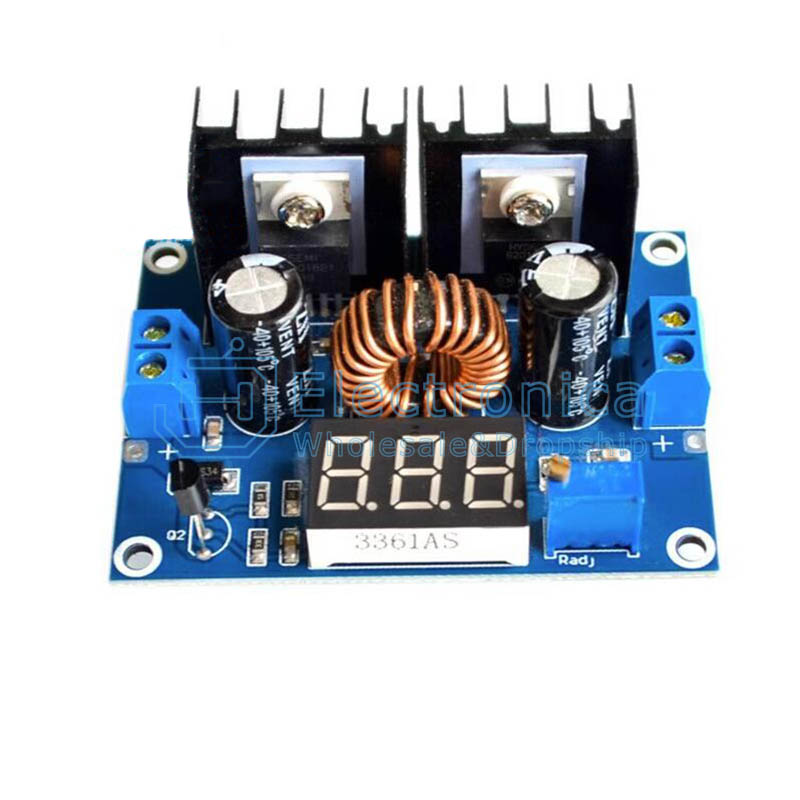

XH-M404 Digital display
