Description

Input: IN + input positive, IN- input negative
Output way: OUT + output positive, OUT- output negative
Input voltage: 5.32V
Output voltage: 0.8-30V continuously adjustable
Output current: adjustable, maximum 5A
Output Power: 75W maximum
Working temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: Yes (limit current 8A)
Overtemperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if necessary, please enter the string into the high current diode)
Installation: four 3mm screws

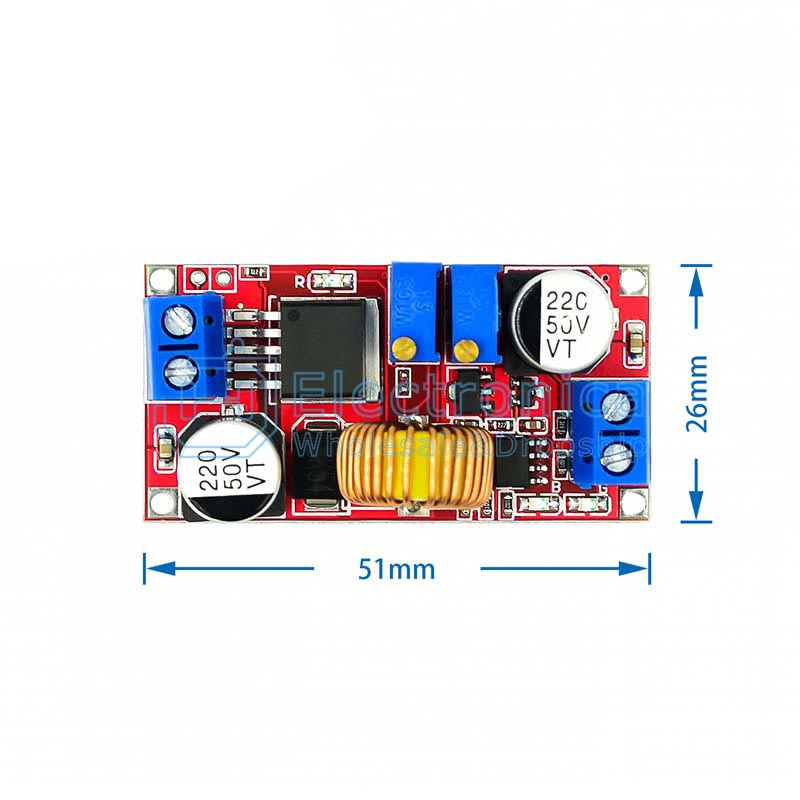

Module dimensions: length 51mm width 26mm height 15mm

Weight: 23g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

XL4015 Lithium Battery Step Down Charging Board

SKU : YXA327 Brand : JH Stock

Price : $ 0.65

100 +: $0.65500 +: $0.651000 +: $0.65

Quantity :

- +

ADD TO CART
