Description

Product Parameters:
Input voltage:7-35V
Output voltage:1.25-30V(continuously adjustable)
Output current:≤3A
Lowest pressure difference:2V
Load adjustment rate:±1%
Voltage adjustment rate:±0.5%
Dynamic response speed: 5% 200uS
Potentiometer adjustment direction: clockwise (increase), counterclockwise 0 (decrease)
Size:49mm*23.4mm*11.4mm

Module Introduction:
This module is a non isolated step-down constant voltage and constant current module, with continuously adjustable output voltage and upper limit current. The module is equipped with charging indicator lights, making the output situation more clear at a glance. The application range includes high-power LED constant current drive, battery charging (including ferroelectricity), 4V, 6V, 12V, 14V, 24V battery charging, nickel nickel hydrogen battery (battery pack) charging, solar cells, panels, wind turbines, etc

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

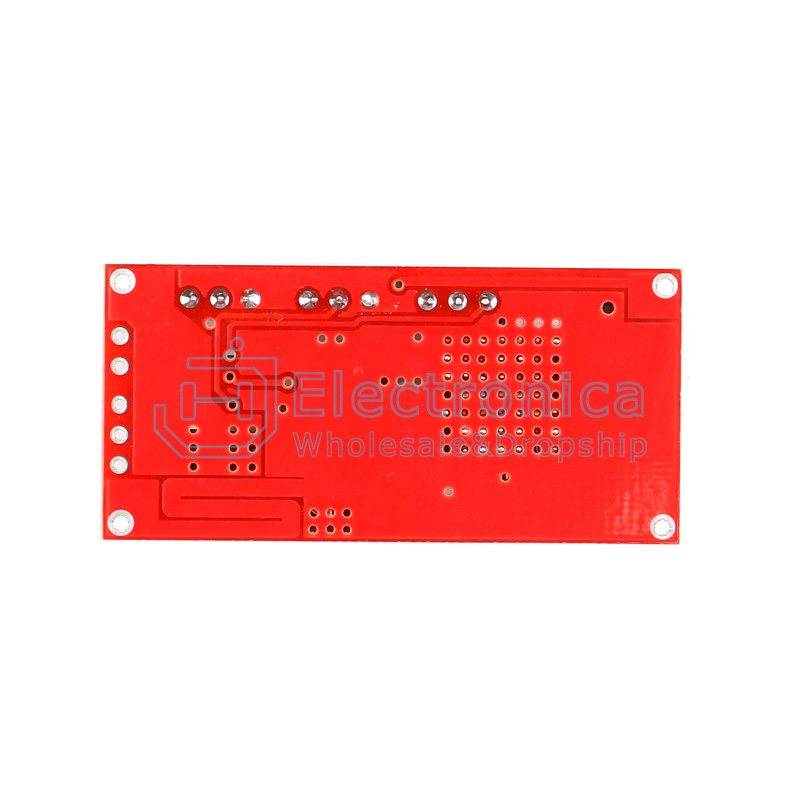

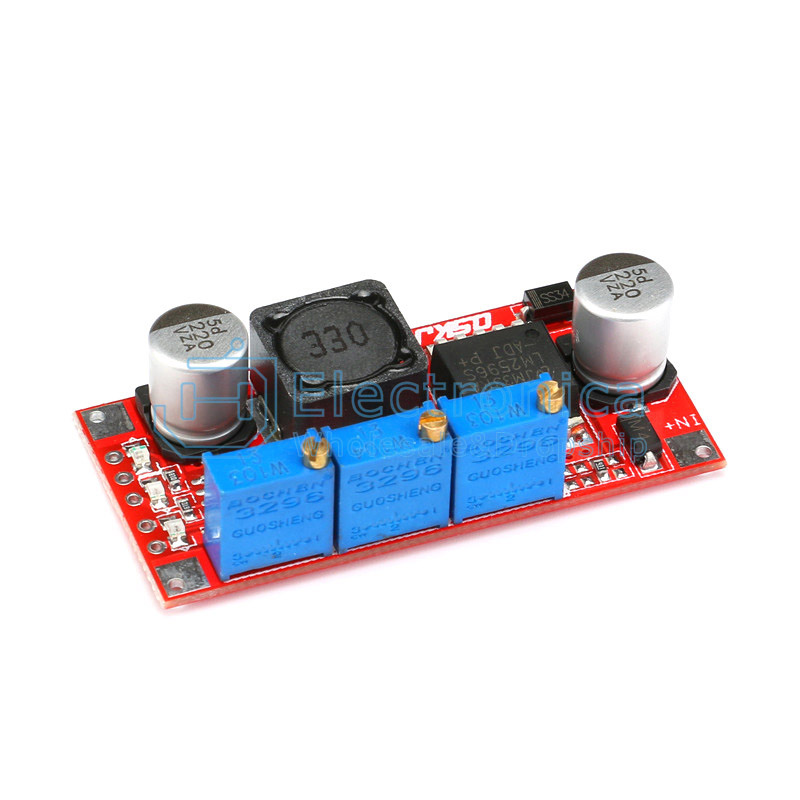

Non-isolated Step-down Regulated Power Module

SKU : YXS1047 Brand :

Price : $ 1.16

100 +: $1.16500 +: $1.161000 +: $1.16

Quantity :

- +

ADD TO CART
