Description

Specifications
Input voltage:4.5V-32V
Output voltage:3V-12V
Output power:24W(Max)
ESD 4KV, DC withstand voltage 48V
Wired output voltage compensation
Switching frequency:220Khz
The output has CV/CC characteristics (output current is less than the set value, output CV mode; output current is greater than the set value, output CC mode)
Built-in synchronous switch step-down converter chip
Over-temperature protection of the whole machine
The conversion efficiency is up to 97%
Output overcurrent, input overvoltage, input Undervoltage, output short circuit protection
Support BC1.2, Apple, Samsung agreement

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

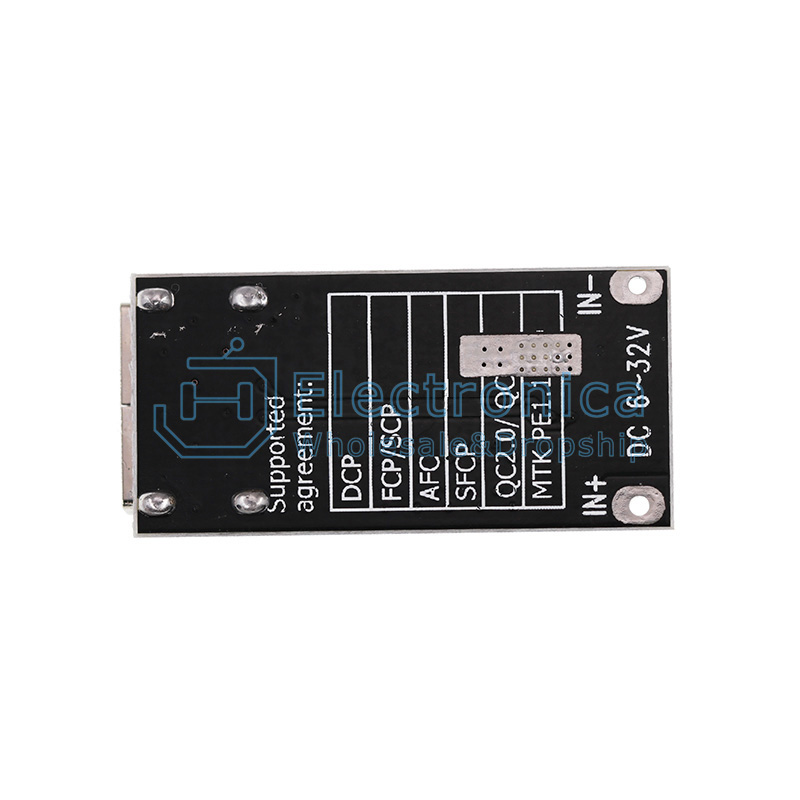

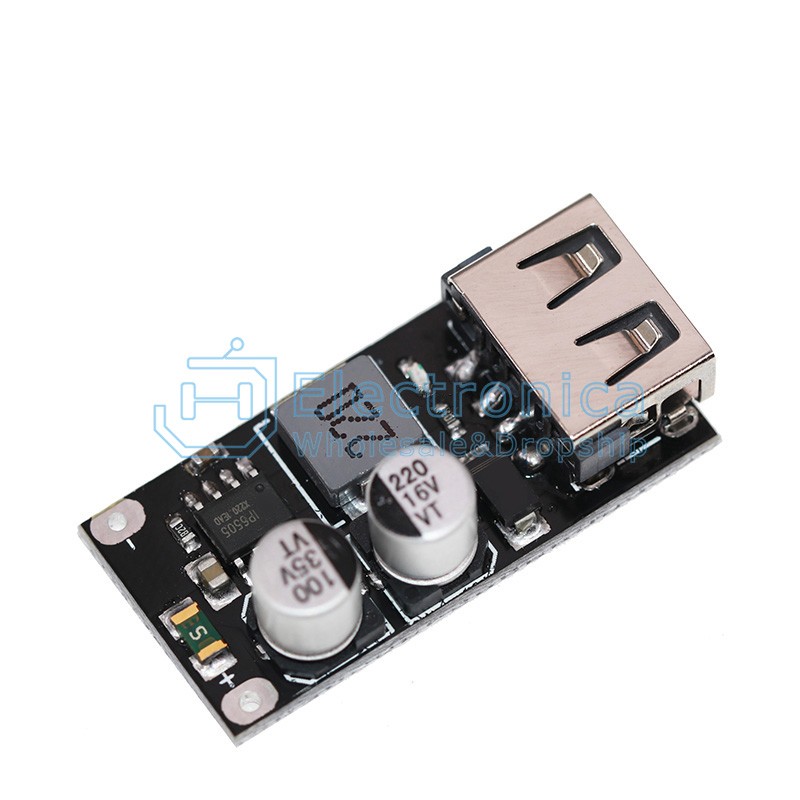

12V24V to QC3.0 DC Step-down Module

SKU : YXC995 Brand :

Price : $ 0.37~1.72

100 +: $0.37~1.72500 +: $0.37~1.721000 +: $0.37~1.72

style：

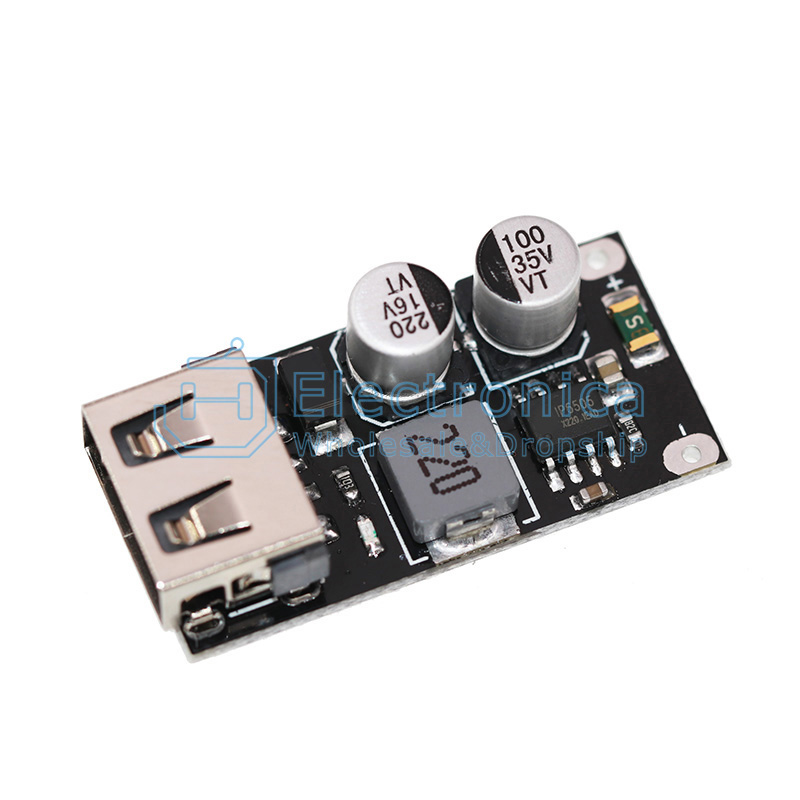

1 channel

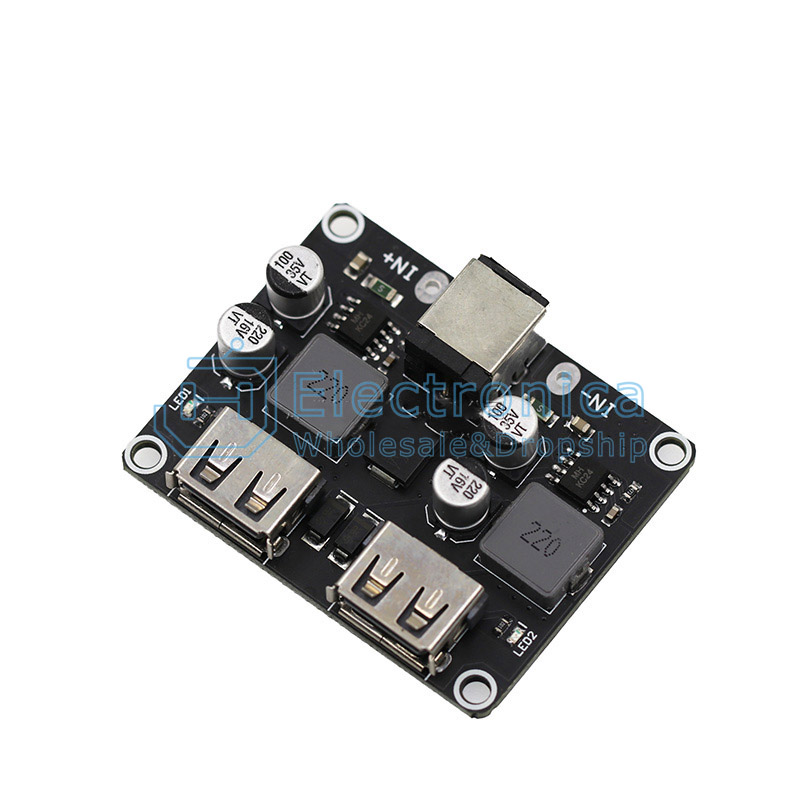

2 channel

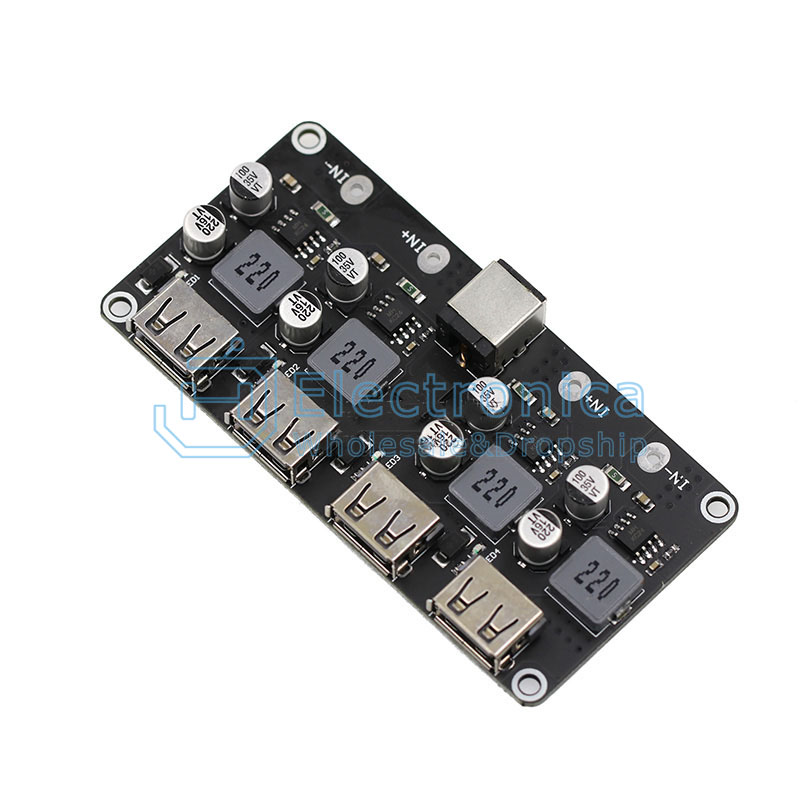

4 channel
