Description

Use of low level control high level.

Such as the use of single chip microcomputer 3V or 5V voltage 9V or 12V voltage control HVCC maximum not more than 24V.
Outlet OUT1 / OUT2 / OUT3 / OUT4 output current is equal to the largest HVCC / 5.1K, maximum absorption current 500mA
Input: IN1 / IN2 / IN3 / IN4, SCM or for Ard uino IO port,
GND with single-chip microcomputer or for Ard uino board GND connection.
IN1 / IN2 / IN3 / IN4 respectively control the OUT1 / OUT2 / OUT3 / OUT4

Output: OUT1 / OUT2 / OUT3 / OUT4
Output: HVCC: Connection is control of high voltage anode, HGND connection is control of high voltage anode
PCB Size: 25*24mm/0.98 * 0.94

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

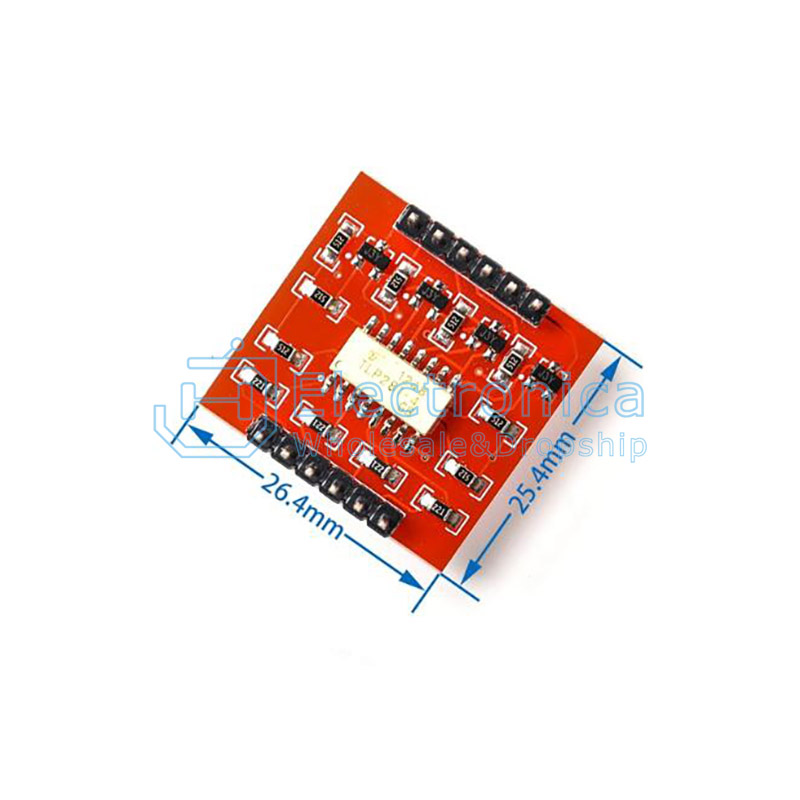

TLP281 4-Channel Optocoupler Isolation Module

SKU : YXA849 Brand : JH Stock

Price : $ 0.48

100 +: $0.48500 +: $0.481000 +: $0.48

Quantity :

- +

ADD TO CART
