Description

Product Overview:

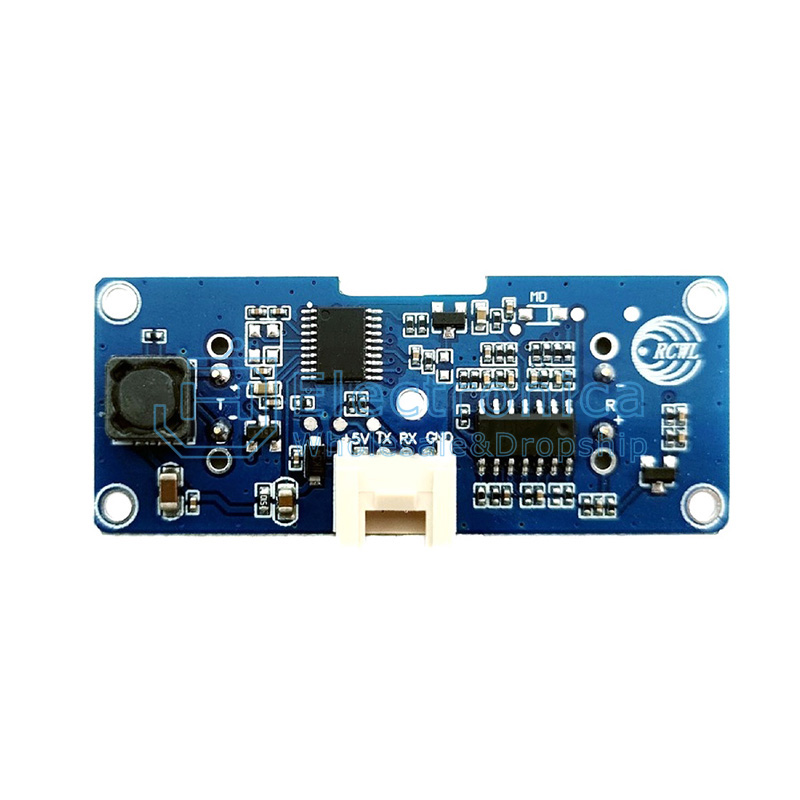

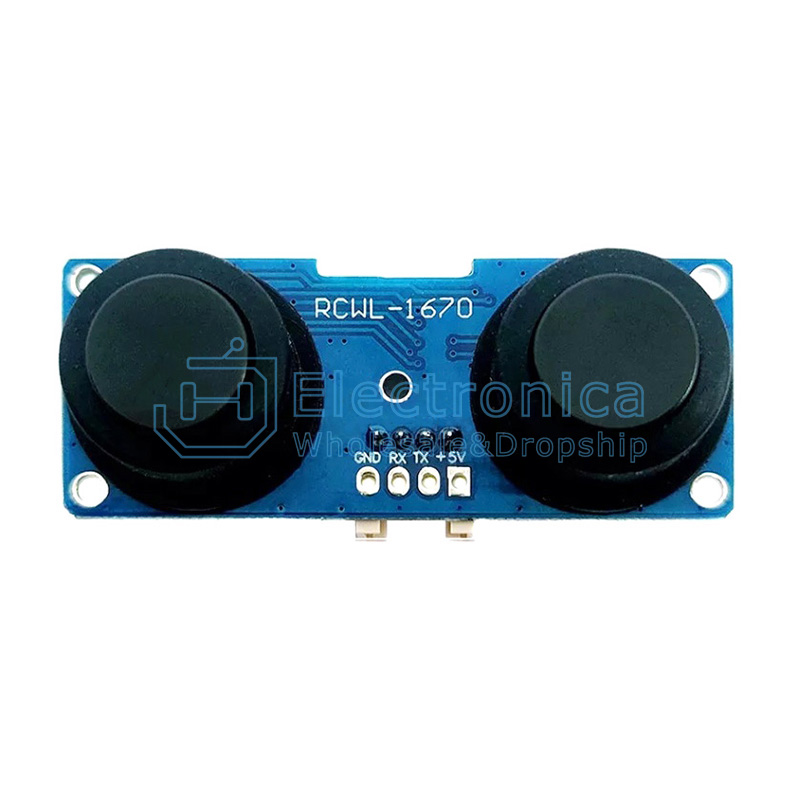

The 1670 is a waterproof, transmitting and receiving split ultrasonic ranging module. 2cm-400cm ranging range, working at a wide voltage of 3-5 V, 1.5uA@33V / 3.5uA@5V Ultra low standby power consumption. The module includes a transmitter and receiver split waterproof ultrasonic sensor and control circuit. The external control software is compatible with our HC-SRO4 module
The module has waterproof and dustproof functions, suitable for damp and harsh measurement situations. The module has ultra-low standby power consumption and is suitable for battery applications
Main Characteristics:
Working voltage:3-5.5V
Working current:6mA
Standby current:3.5uA@5V,1.5uA@3.3V
Software compatibility:HC-SR04
2CM blind spot, 4M typical farthest ranging
50mS measurement cycle
Typical Applications:
Outdoor robots
Obstacle avoidance liquid level measurement
Garbage can detection
Other ranging applications

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

RCWL-1670 Waterproof Air Ultrasonic Ceramic Transducer

SKU : YXS1642 Brand :

Price : $ 3.40

100 +: $3.40500 +: $3.401000 +: $3.40
