Description

Module features:

1. The high-sensitivity vibration switch produced by our company is adopted, and the SW-18010P vibration sensor is used by default.
2. Comparator output, clean signal, good waveform, strong driving ability, more than 15mA
3. Working voltage 3.3V-5V
4. Output form: digital switch output (0 and 1)
5. With fixing bolt holes for easy installation
6. Small board PCB size: 3.2cm x 1.4cm
7. Use wide voltage LM393 comparator

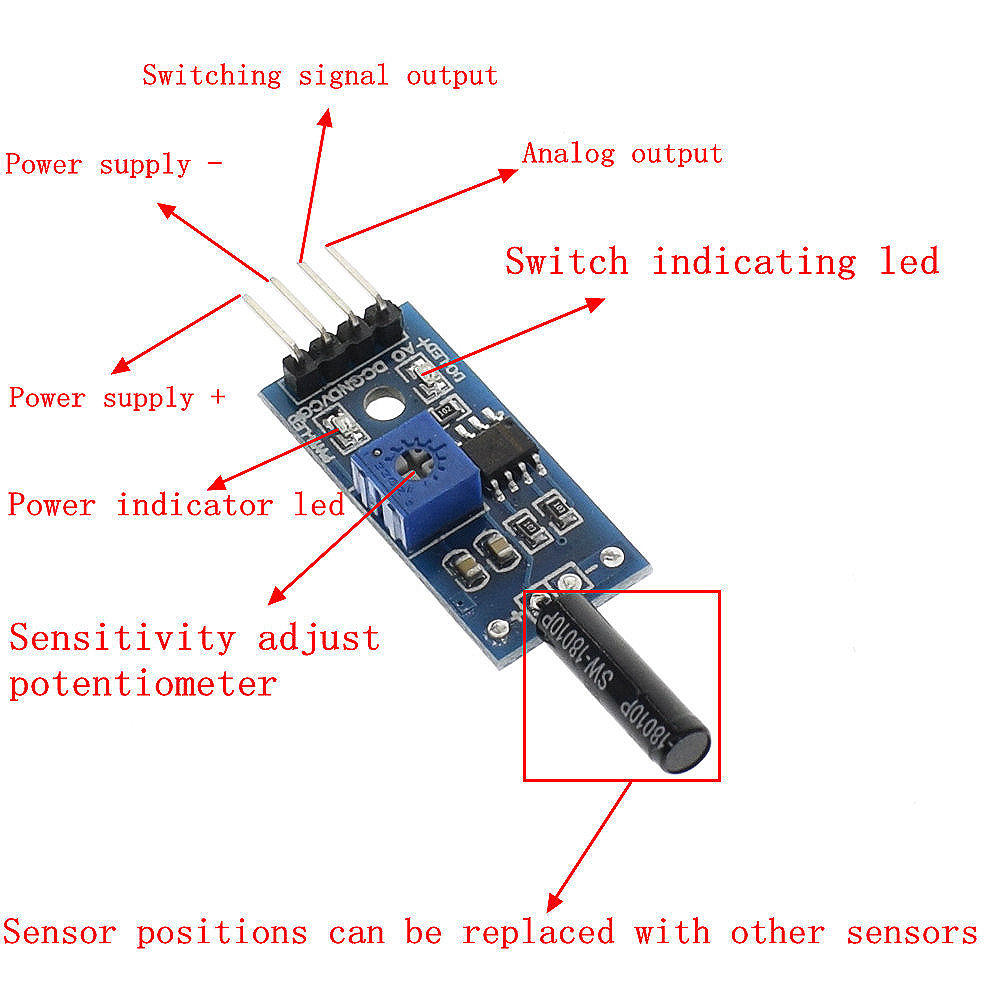

Module wiring instructions:
1.VCC: Connect to the positive pole of the power supply
2.GND: Connect to the negative pole of the power supply
3.DO: digital signal output
4.AO: This function is invalid with this vibration sensor

Module instructions:
1. When the product does not vibrate, the vibration switch is off, the output end outputs a high level, and the green indicator light does not light;
2. When the product vibrates, the vibration switch is turned on instantaneously, the output end outputs a low level, and the green indicator light is on;
3. The output terminal can be directly connected to the single-chip microcomputer, and the high- and low-level can be detected by the single-chip microcomputer, thereby detecting whether there is vibration in the environment and playing an alarm role

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

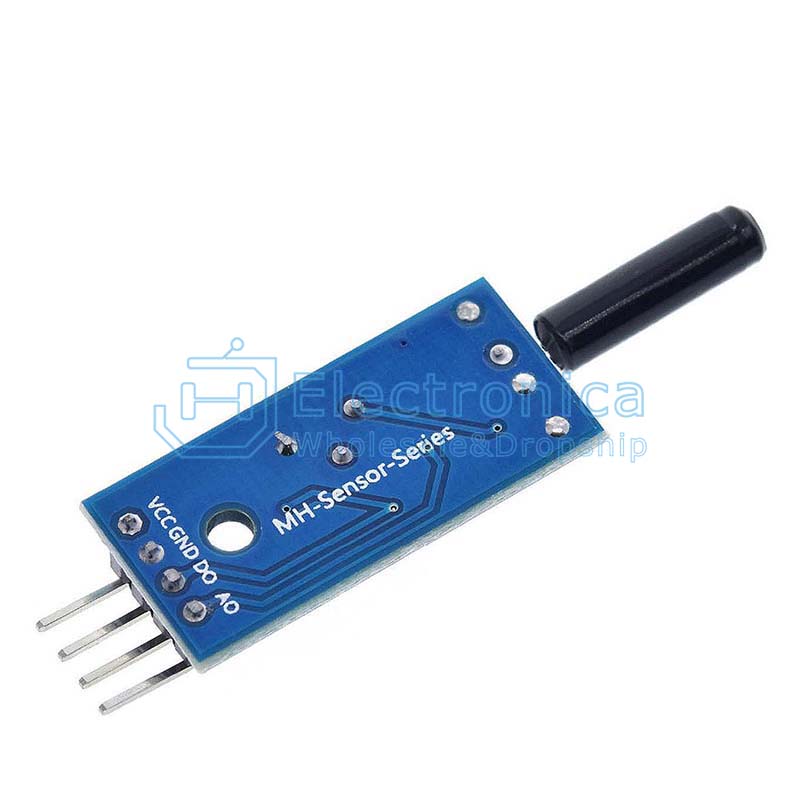

SW-18010P High Sensitive Vibration Sensor

SKU : YXB023 Brand : JH Stock

Price : $ 0.20

100 +: $0.20500 +: $0.201000 +: $0.20
