Description

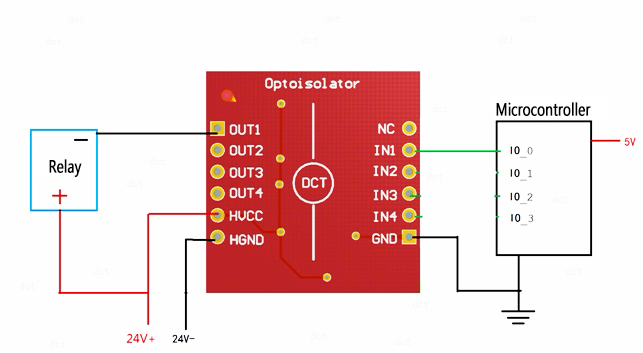

1. Function: Use the low level to control the high level.
Such as the use of single-chip 3V or 5V voltage control9V or 12v voltage.

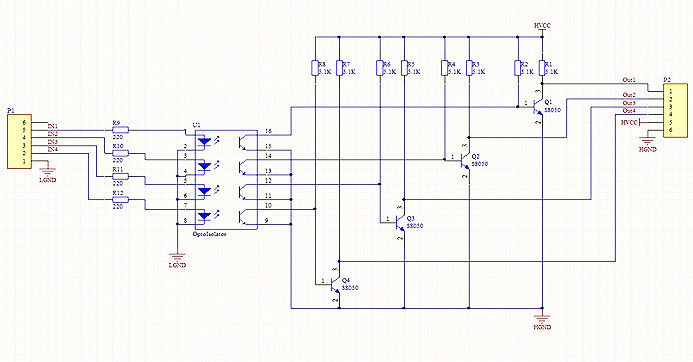

2. HVCC should not exceed 24V. Output OUT1 /OUT2 / OUT3 / OUT4 output current equal to HVCC/ 5.1K, absorption current 500ma.
3. This module uses TLP281 chip (for Toshiba).
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

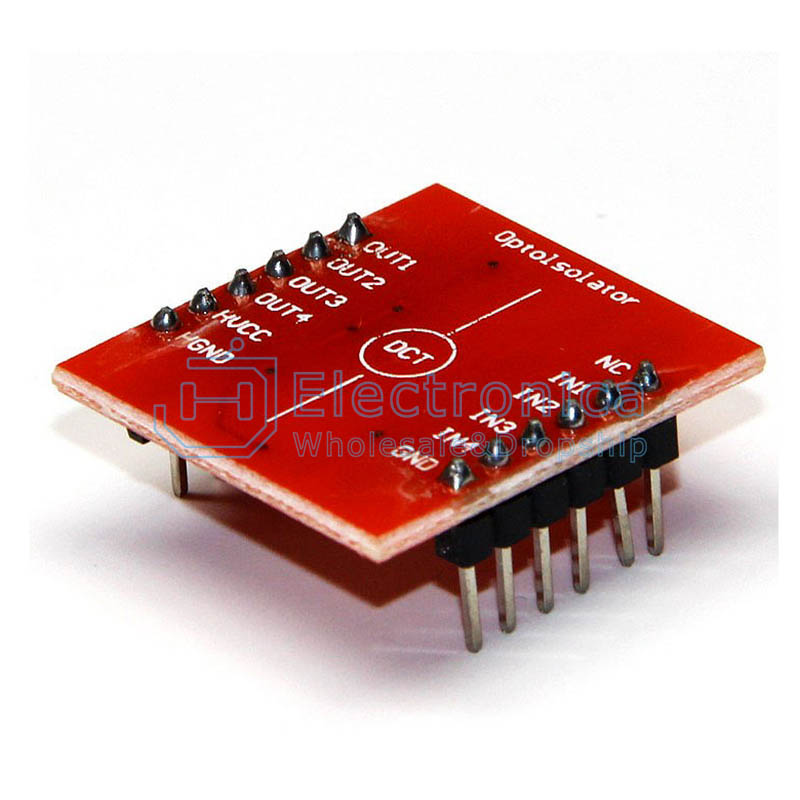

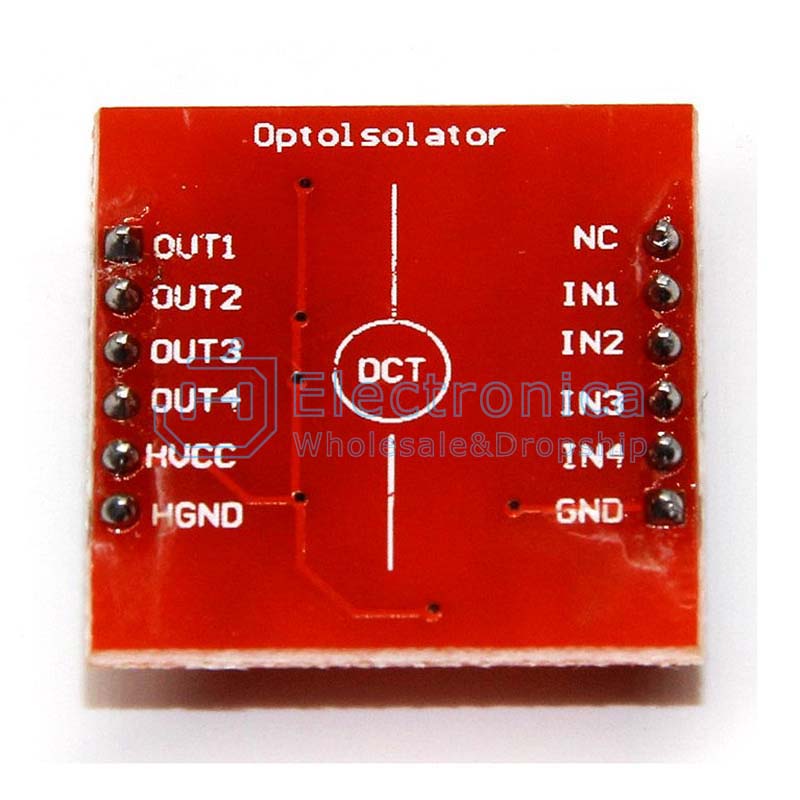

TLP281 4-Channel Optical Isolation Module
SKU : YXK536 Brand : JH Stock
