Working voltage:DC 4.5-5.5V
Frequency:87-108MHz

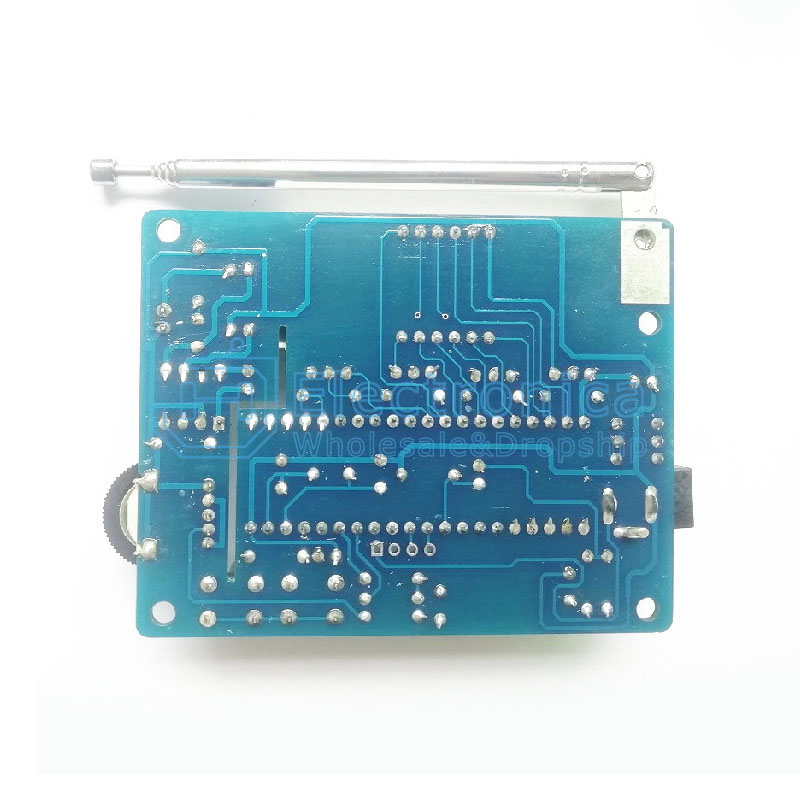

Circuit board size:7.7*6.1cm

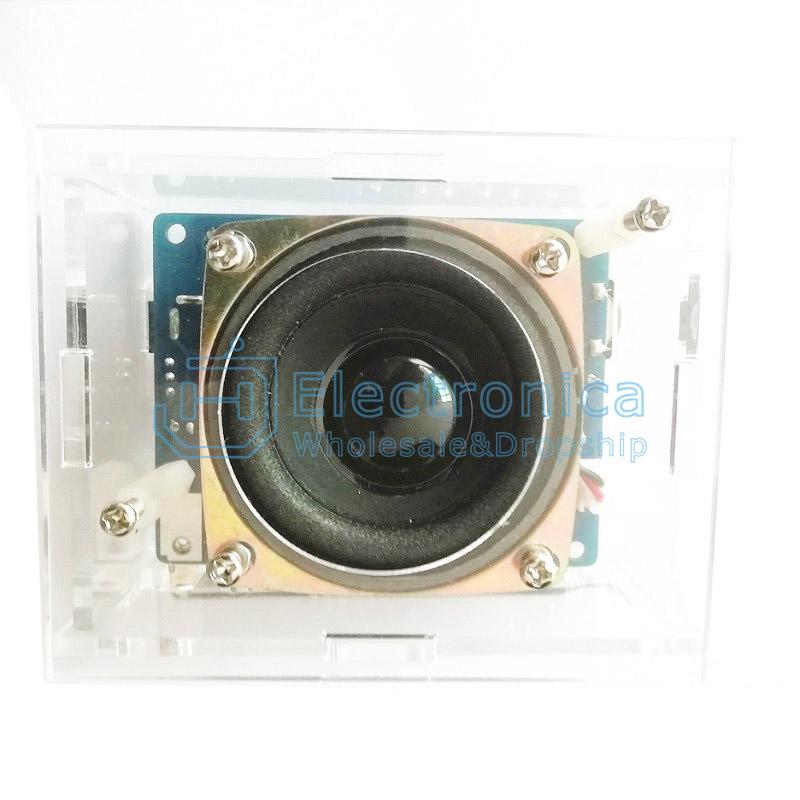

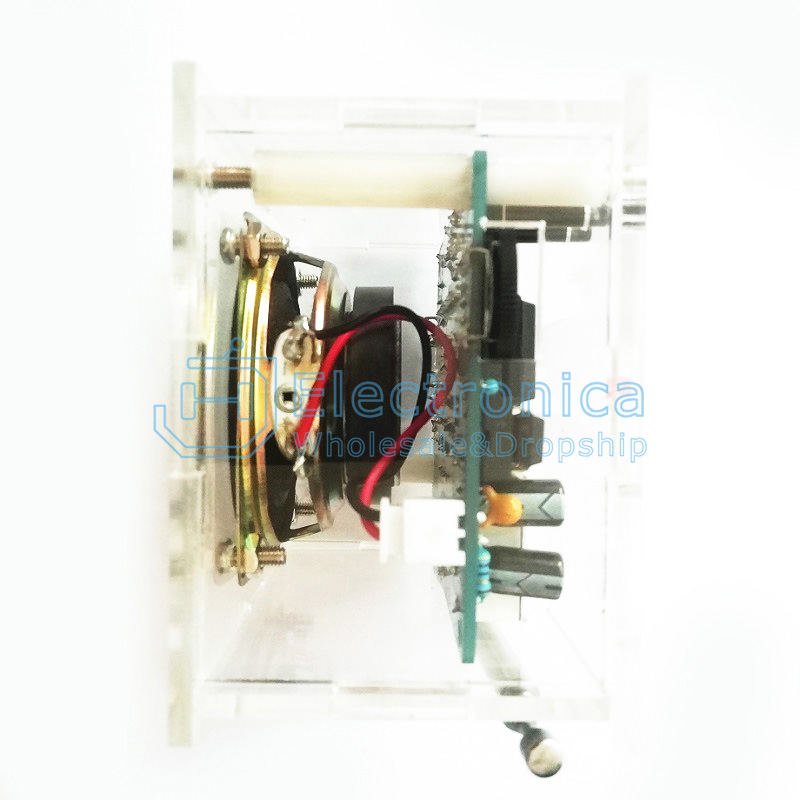

Case size:9.2*7.4*5.1cm
Working temperature:-40℃~85℃
Working humidity:5%~95%RH
Frequency modulation step:press the step is 0.1MHZ,long press the frequency modulation key can continuously add or subtract.
Function:digital display frequency function,power off memory function,power saving function.

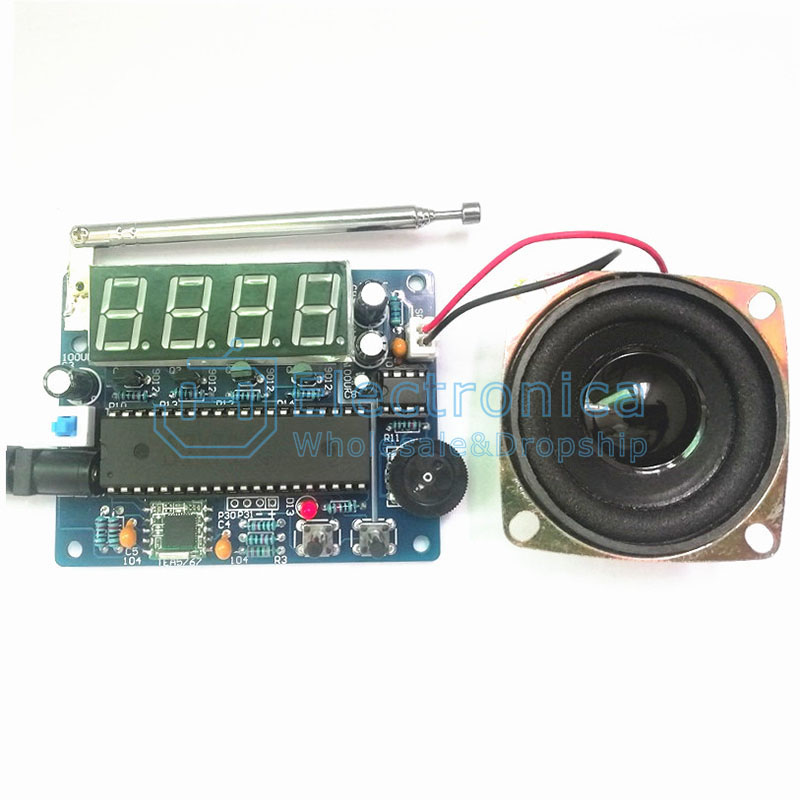

Shipping list:
PCB*1
262 Small antenna*1
0.56 Inch 4 digit digital tube*1
100UF 50V electrolytic capacitor*3
10UF 25V electrolytic capacitor*2
22P or 20pf chip capacitor*2
104 monolithic capacitor*3
8*8 self-locking switch*1
7MM high self-locking switch cap*1
DC005 block*1
4.7Ω resistance*1
10K resistance*11
220K resistance*1
9012 Triode*4
12M crystal oscillator*1
RDA5807H Radio module*1
6*6*20 keys*2
2*5*7 LED*1
50K dial potentiometer*1
8P IC block*1
40P IC block*1
LM386 Chip*1
STC89C52(burn the program)*1
2 Inch speaker*1
Red and black line*1
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
OUR GUARANTEE:
1: 90-Day Refund Policy
2: Comprehensive Customer Support
3: 100% Product Inspection on every order
4: Safe Payment
5: End to End Tracking for every order
If you need customized and packaged services, please contact us
TEA5767 FM Radio DIY Kit
