Description

1.Core Size: 8bit
2.Speed: 16MHz
3.Connectivity：I2C, IrDA, LIN, SPI, UART/USART
4.Peripherals: under voltage detection/reset, POR, PWM, WDT
5.I/O number: 16
6.Program memory type: Flash can be erased and written 10,000 times
7.Program storage capatity: 8KB(8Kx8)
8.EEPROM capatity: 640x8
9.RAM capatity: 1Kx8
10.Voltage-power(Vcc/Vdd): 2.95V~5.5V
11.Data converter: A/D5x10b
12.Oscillator type: internal
13.Working temperature: -40℃~80℃

STM8S103F3P6 performance comparison:
STM8S003F3 chips only 128 bytes of EEPROM, STM8S103F3 640 bytes
STM8S003F3 chip FLASH erase only 100 times, STM8S103F3 can erase ten thousand times
STM8S103F2 chip FLASH only 4K bytes, STM8S103F3 have 8K bytes
Size:28mm*17mm*5mm/1.1*0.66*0.19"

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

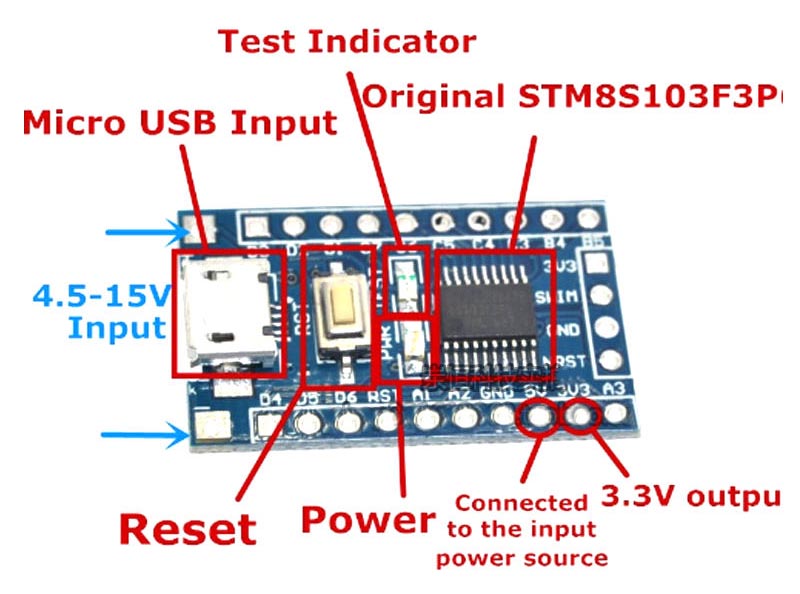

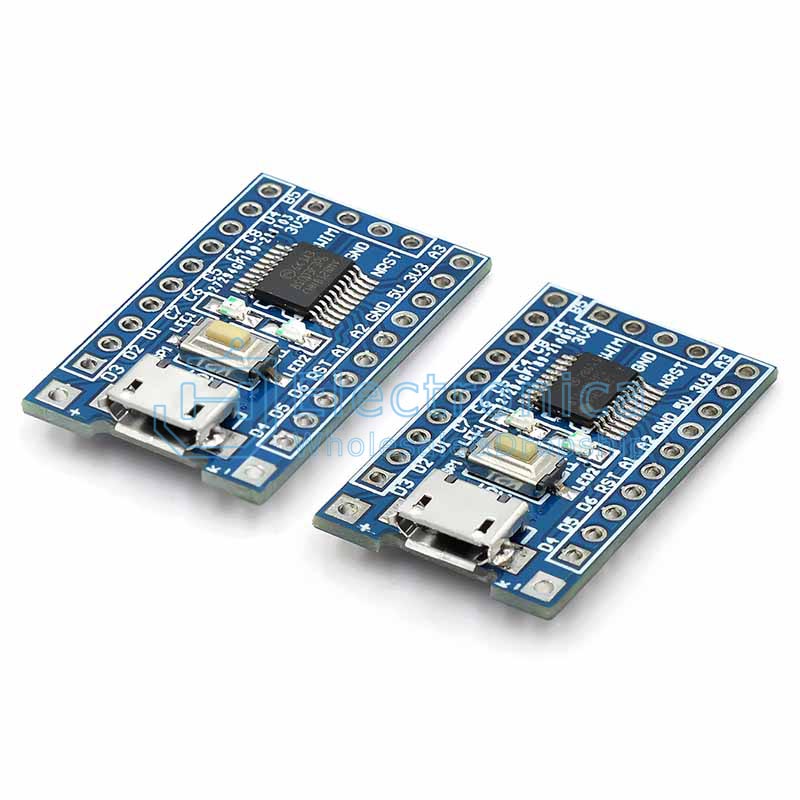

STM8S103F3P6 STM8S003F3P6 Development Board

SKU : YXA150 Brand : JH Stock

Price : $ 0.66~0.85

100 +: $0.66~0.85500 +: $0.66~0.851000 +: $0.66~0.85

Style：

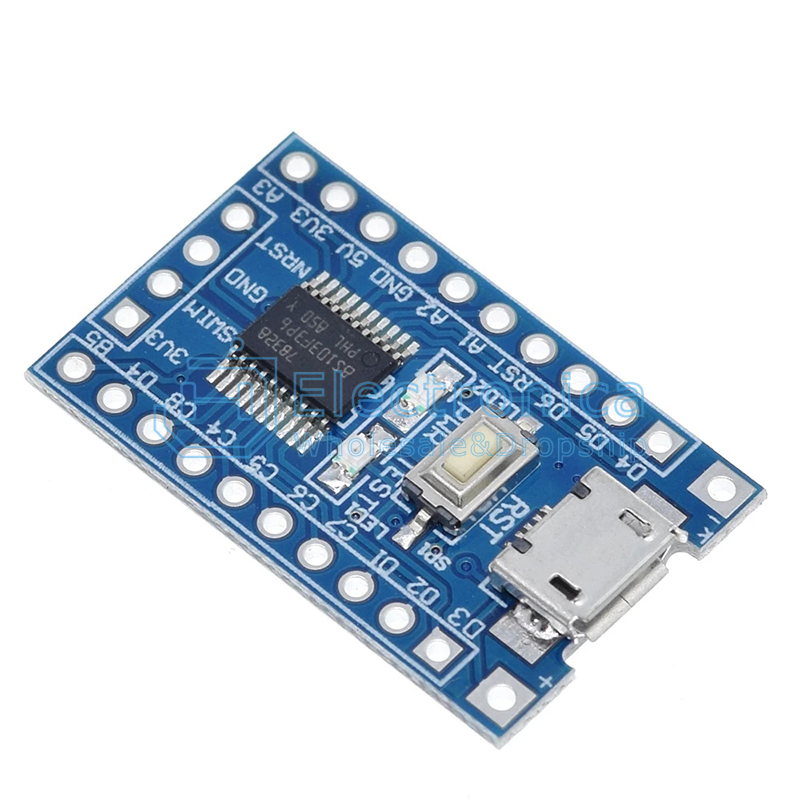

STM8S103F3P6 micro
STM8S003F3P6 micro

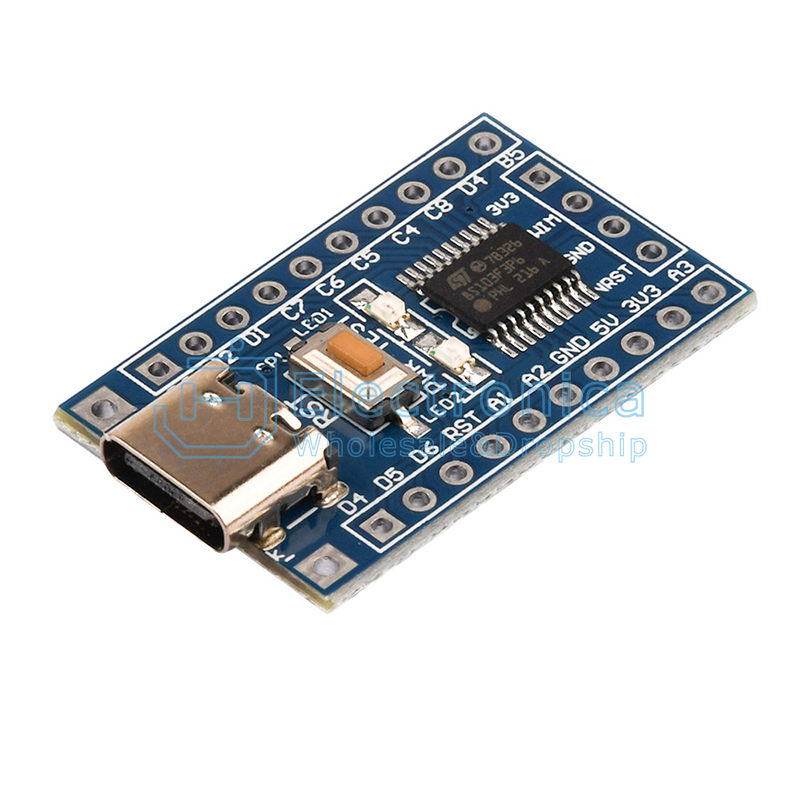

STM8S103F3P6 type-c
STM8S003F3P6 type-c
