Description

Product Parameters:
Model:STM32F103C8T6
Kernel:ARM32 bit ortet-M3CPU

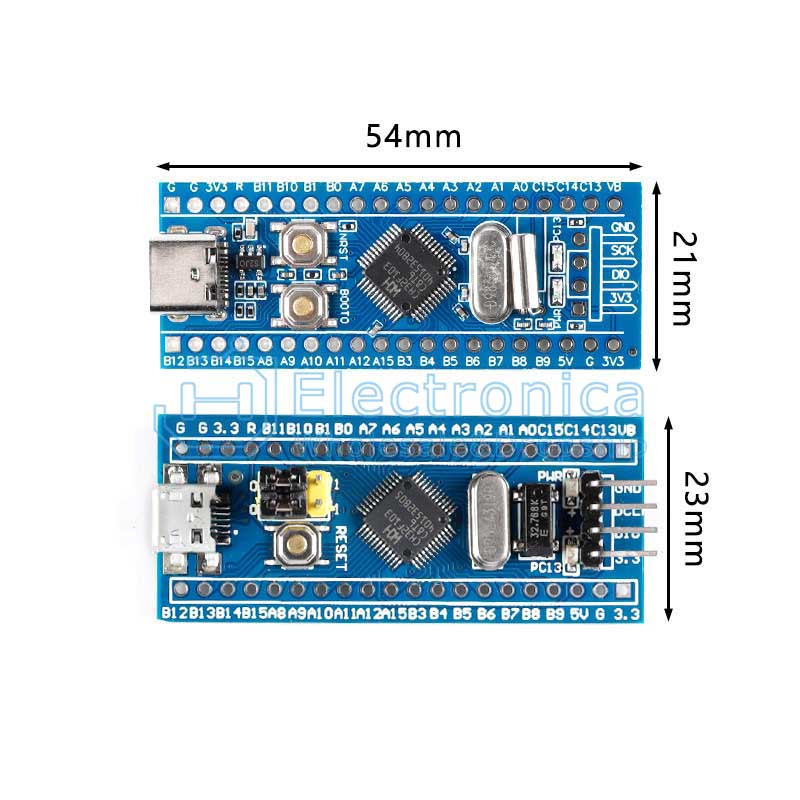

Size:22.86mm×53.34mm
Debugging method:SWD

Product Introduction:
This is a core chip based on the STM32F103C8T6 (domestic model benchmarking this model) ARM core board, with the following functions:
1. The motherboard is based on the most basic MCU circuit, 8M and 32768 crystal oscillator circuit, and USB power supply circuit
The core board is divided into two rows, leading to all I/O ports
3. It has a SWD simulation debugging download interface, which is simple, convenient, and fast for debugging
4. Using the TYPE-C interface, it can be used for USB communication and power supply. The USB interface is compatible with ordinary Android phone charger interfaces.
5. Equipped with double row pins, default not welding, users can choose the welding direction suitable for their own application scenarios

Interface Description:
1. SWD interface: supports simulation, download, and debugging
2. TYPE-C USB interface: Power and USB communication, download not supported
3. USART1 interface: USART1 can be used to download programs or communicate using USART 1
4. MCU pin interface: Lead out all I/O port pins for easy connection with peripherals
5.5V and 3.3V power input and output interfaces: commonly used for external power supply or grounding together with other modules for processing

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

CH32F103C8T6 Development Board

SKU : YXS1116 Brand :

Price : $ 1.79

100 +: $1.79500 +: $1.791000 +: $1.79

Style：

Type-C interface

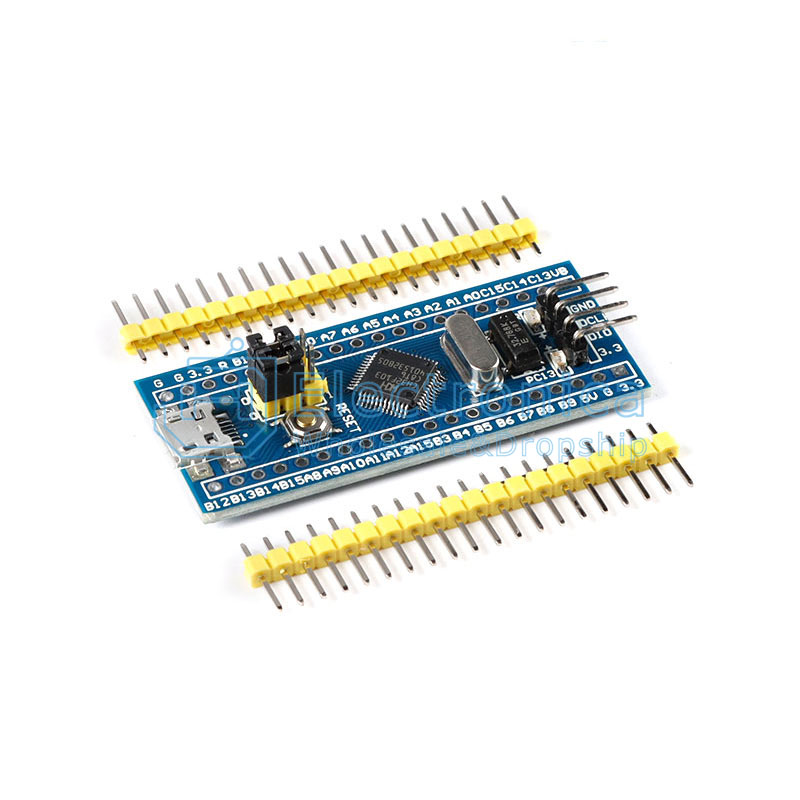

Micro interface
