Product Introduction:

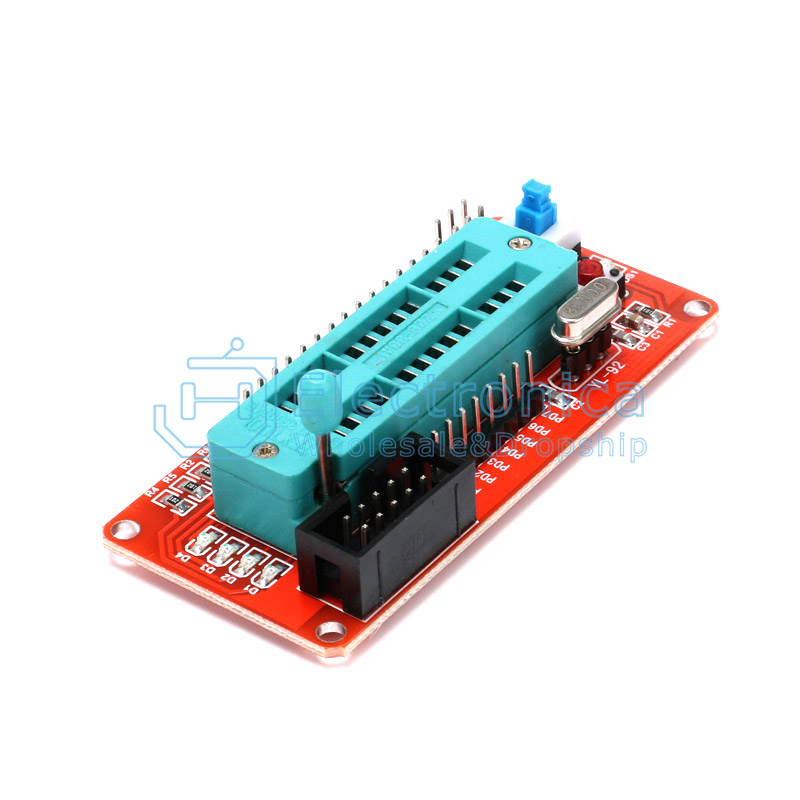

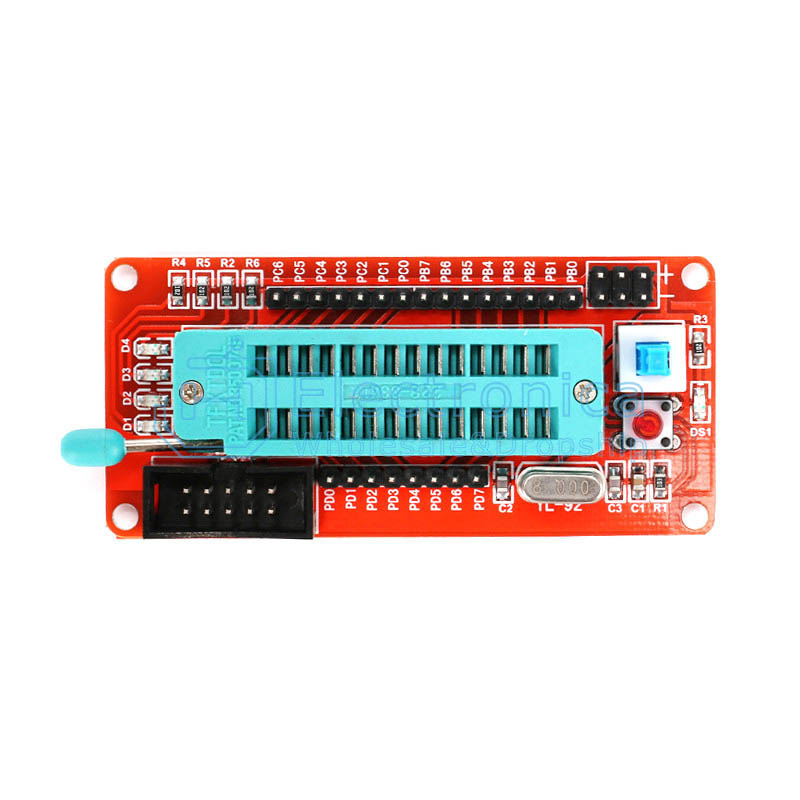

All 23 10 pins of the ATmega8 system board/ATmega16 system board are led out, using the classic ATmega8 system/ATmega16 system, saving the trouble of welding. The round hole socket welding method is adopted, making it convenient for buyers to replace the crystal oscillator. The default output is 8M crystal oscillator, which supports ATmega8 chips (ATmega8 system board), ATmega16/ATmega32, and chips compatible with the aforementioned chip pins (ATmega16 system board). The power supply method can be either ISP downloader power supply or external expansion pin power supply, There are 4 LED lights for external expansion, which are convenient for debugging and use. The DC-005 power socket is used for power supply (the supporting socket is 5.5*2.1)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

ATMEGA8/16 System Board

SKU : YXS1104 Brand :

Price : $ 1.67~1.71

100 +: $1.67~1.71500 +: $1.67~1.711000 +: $1.67~1.71

Style：

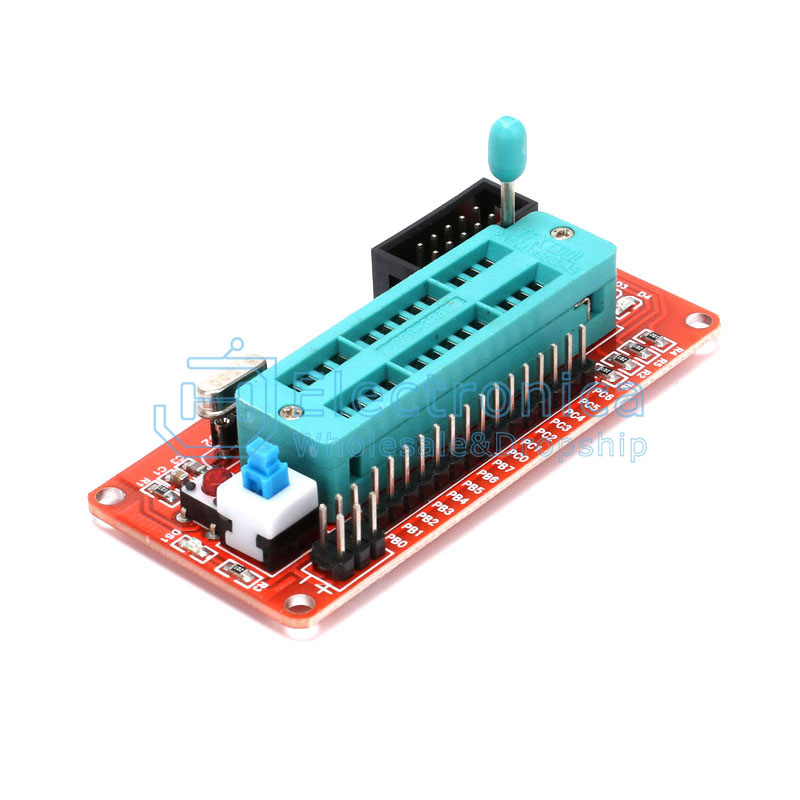

ATmega8 mini system board

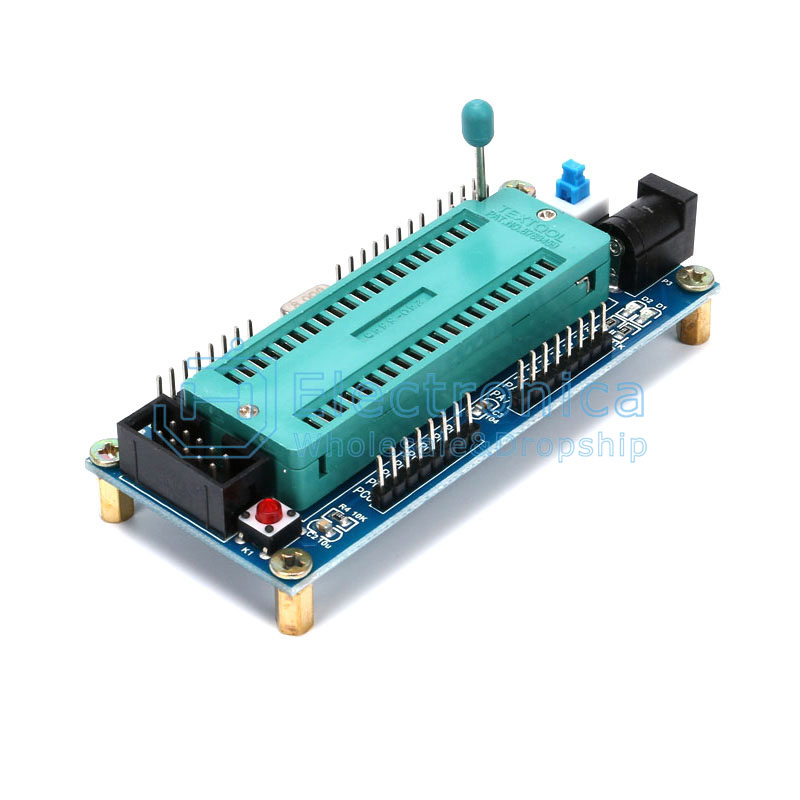

YL-34 system board
