Description

Color:blue
Input current:DC7-12V
Output power supply:3.3V
Product Features:
1. Adopting macro crystal STC 1T microcontroller STC15W4K58S4. The program is compatible with STC15 series microcontrollers, such as the STC15F2K60S2 series
2. Adopting LQFP48 packaging, it can accommodate 46 I/Os (8 1/O more than DIP40 packaging) and supports 4-way serial port UART, making it convenient to connect multiple serial port modules simultaneously
3. All I/Os are led out and arranged at a spacing of 2.54mm, making it convenient for the system board to be used on universal boards and breadboards
4. The onboard CH340G USB to serial chip can achieve microcontroller simulation debugging, serial communication, and program download
5. Use a regular Android phone data cable to download or power up programs
6. The onboard 5V voltage regulator chip can use 7V-12V input to power the board
7. The onboard 3.3V voltage regulator chip can output a 3.3V power supply
8. The display interface can be externally connected to LCD12864, LCD1602, and TFT 1.44 inch color screens
9. On board controllabel LED*1, button*4
10. The system board has a size of 60 * 38mm, which is compact and exquisite, with a unique design and exquisite conception. All aspects are based on practicality

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

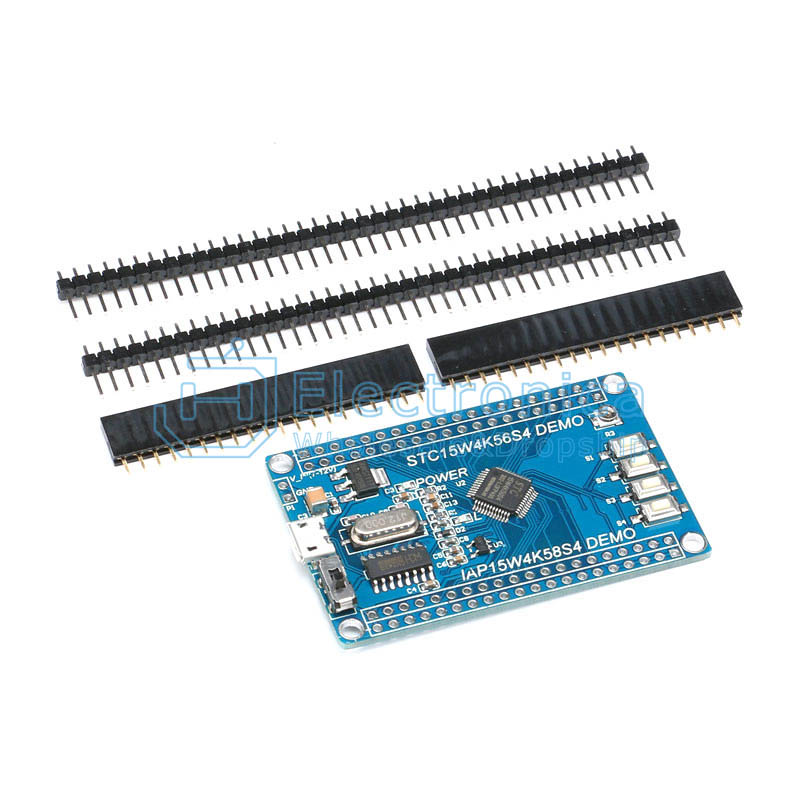

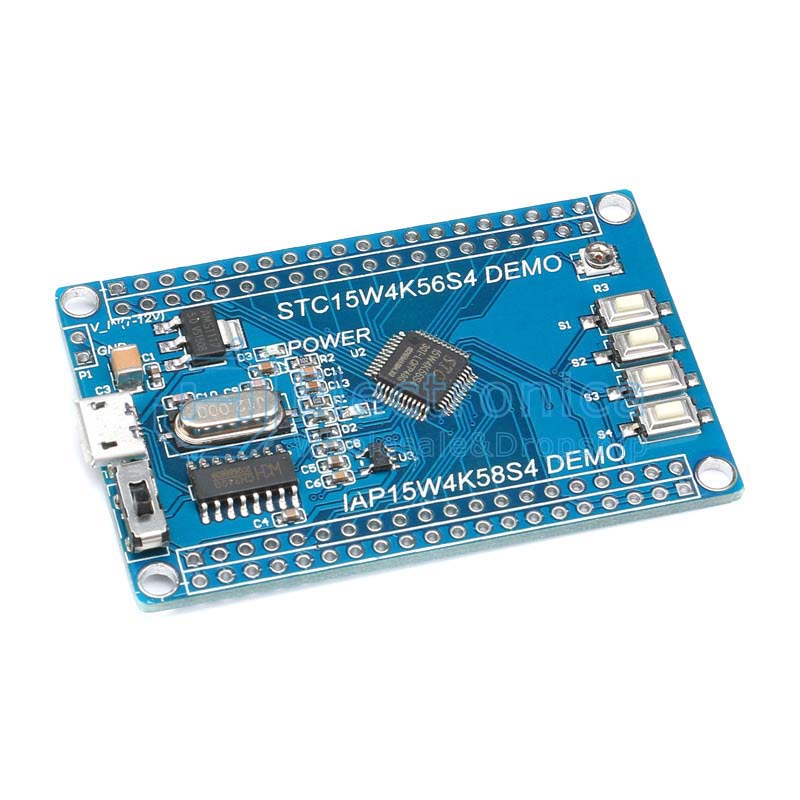

STC15W4K56S4 System Board

SKU : YXS1105 Brand :

Price : $ 4.85

100 +: $4.85500 +: $4.851000 +: $4.85
