Description

Product Parameters:
AC input(VAC):85-264
DC input(VDC):110-370
Frequency range(Hz):47-63
Input current(A):0.5/115VAC,0.25/230VAC
Inrush current(A):Cold start,10A/230VAC

Product Features:
This module is a CE certified switching power supply module, which is easy to install. The AC input can be installed with VH3.96-3A2/DC output, and VH3.96-2A terminals or 2.54 plugs can be installed for use. There are fixed global universal input holes at the four corners to prevent movement/vibration from causing power outage of the product. The straight diameter of the fixed holes is 3.2mm. Voltage: 85-264VAC or 110-370V DC. High efficiency, high power density, low output ripple noise, and high output voltage accuracy. High isolation between input and output. Overcurrent protection, short circuit protection, and temperature protection. The output is equipped with built-in filtering and does not require the use of external filtering circuits

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

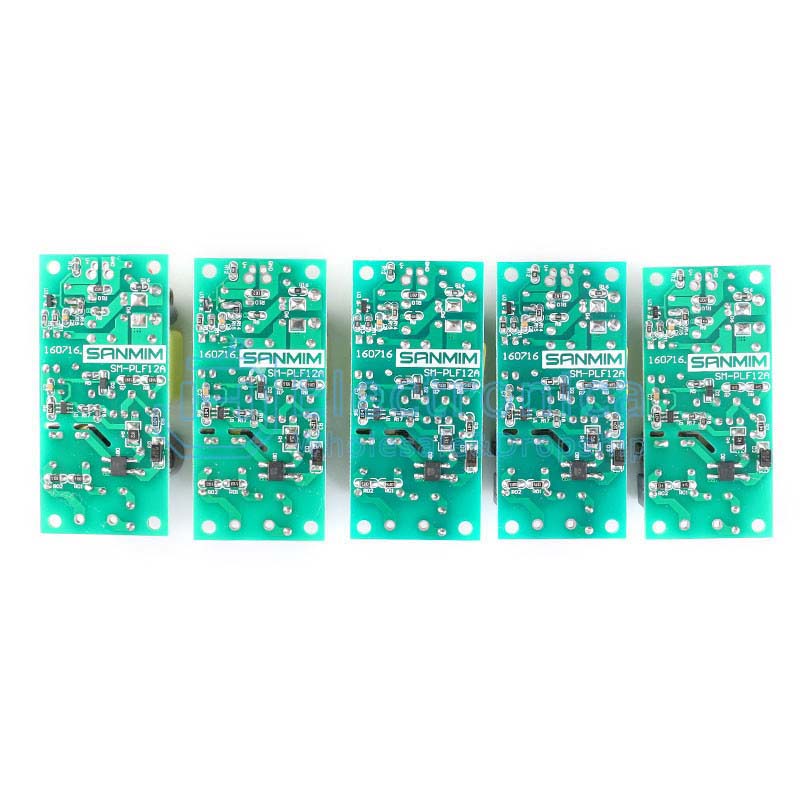

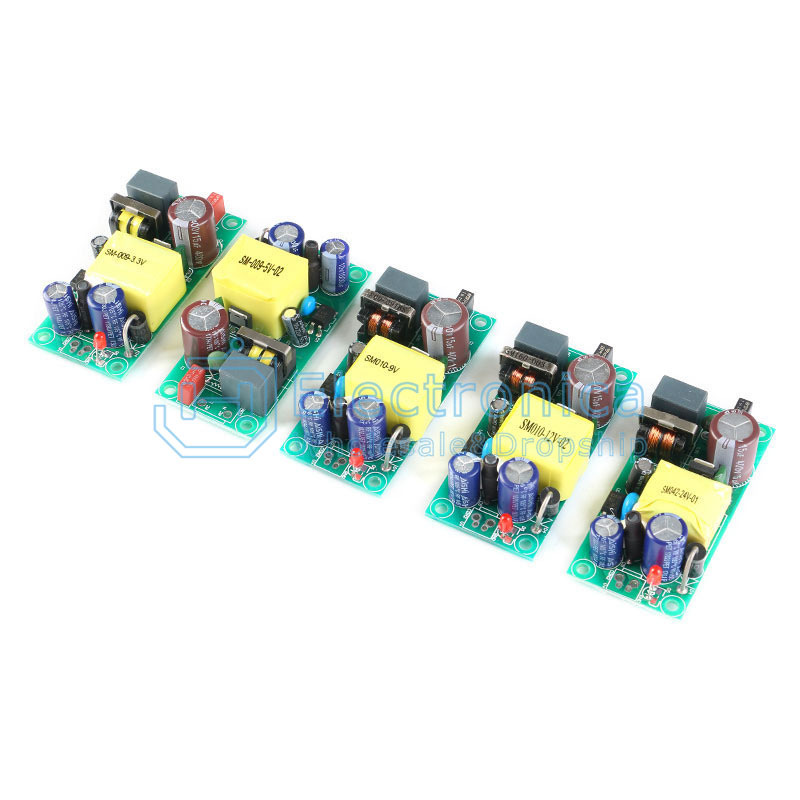

SM-PLF12A Switching Power Module

SKU : YXS1061 Brand :

Price : $ 2.82

100 +: $2.82500 +: $2.821000 +: $2.82
