Description

Product Parameters:
Size:38*23*18mm
Output power:5W
Output voltage:5M03-3.3V,5M05-5V,5M09-9V,5M12-12V,5M24-24V
Output current(mA):5M03-1500,5M05-1000,5M09-560,5M12-450,5M24-208

Product Features:
This module is an AC-DC low ripple switching power supply module. The 5W ultra small series module power supply is a small volume, high-efficiency module power supply designed by Hailingke Electronics for customers. It has advantages such as global input voltage range, low temperature rise and low power consumption, high efficiency, high reliability, and high safety isolation. already Widely used in industries such as intelligent home automation control, communication equipment, instrumentation, etc. Global universal input voltage low power consumption, green environmental protection, no-load loss<0.1W4. Low ripple, low noise, good output short circuit and overcurrent protection and self recovery. High efficiency, high power density, input output isolation and withstand voltage of 3000Vac. 100% full load aging and testing. High reliability, long life design, continuous working time of up to 100000 hours. Meet UL CE requirements: The product design meets EMC and safety testing requirements. Using high-quality environmentally friendly waterproof and thermal conductive adhesive for sealing, it is moisture-proof and vibration resistant, meeting the waterproof and dustproof IP65 standard. Economical solution with high cost-effectiveness. It can work without external circuits

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

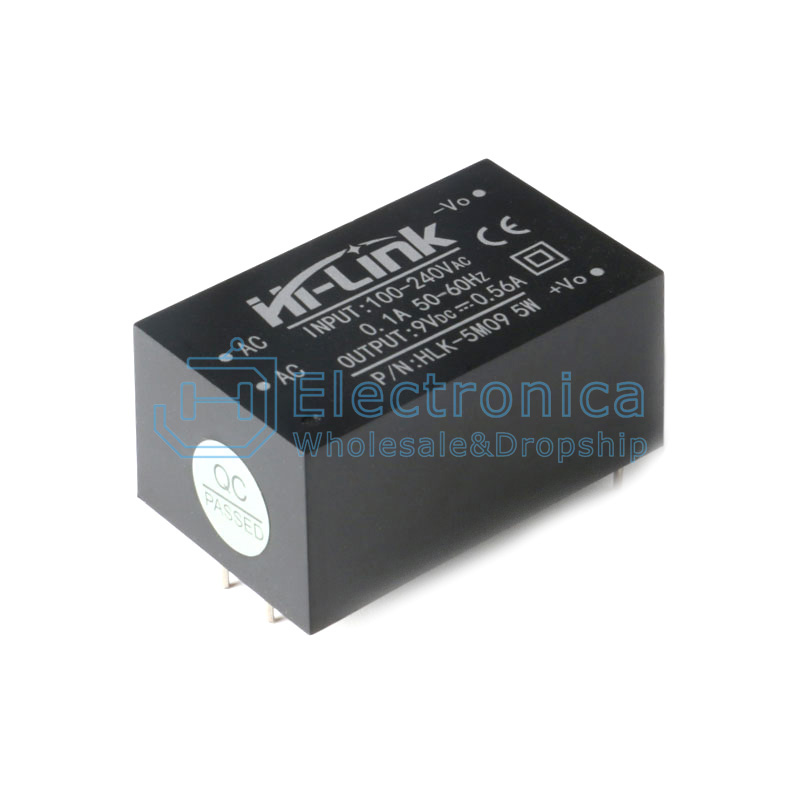

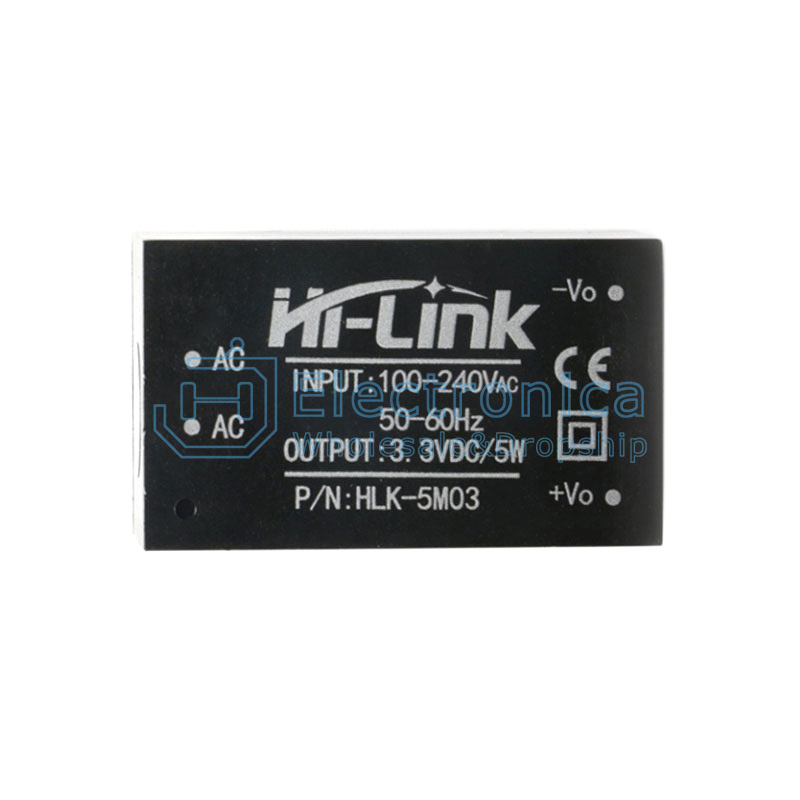

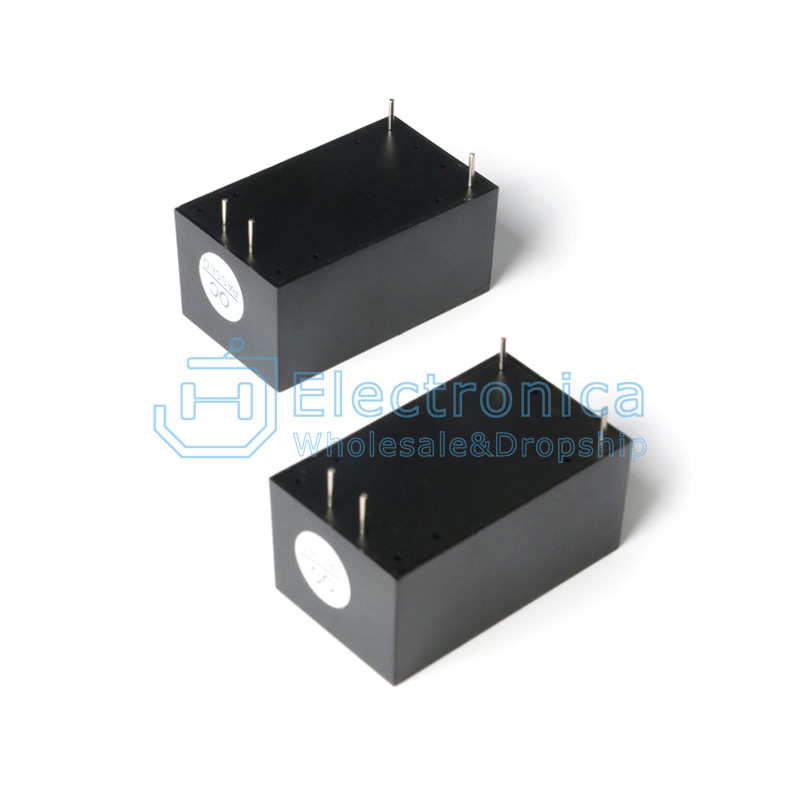

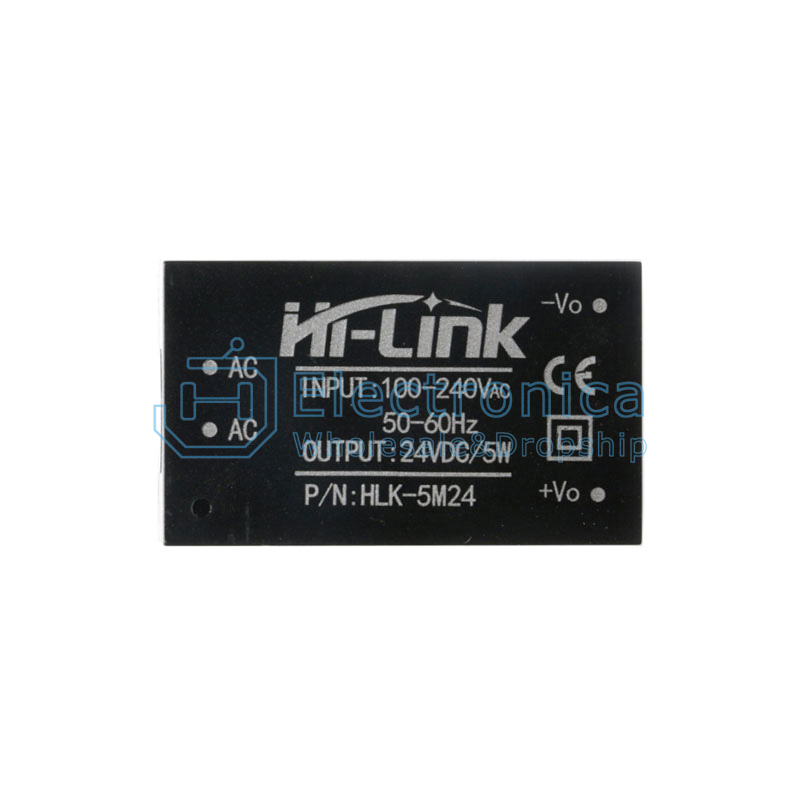

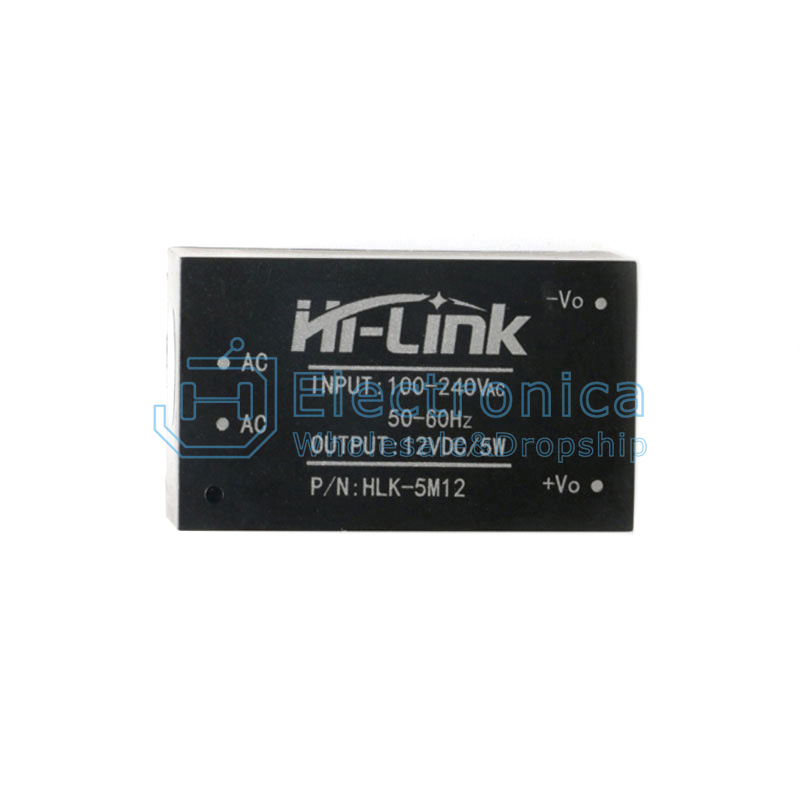

HLK-5M03/05/09/12/24 Step-Down Regulator Power Module

SKU : YXS1056 Brand :

Price : $ 1.88~2.22

100 +: $1.88~2.22500 +: $1.88~2.221000 +: $1.88~2.22

Style：

HLK-5M03
HLK-5M09
HLK-5M12
HLK-5M24

Quantity :

- +

ADD TO CART
