Description

Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(Max)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40 ~ 85℃)
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Size:22mm*17mm*4mm(L*W*H)/0.87'' * 0.67'' * 0.16''

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

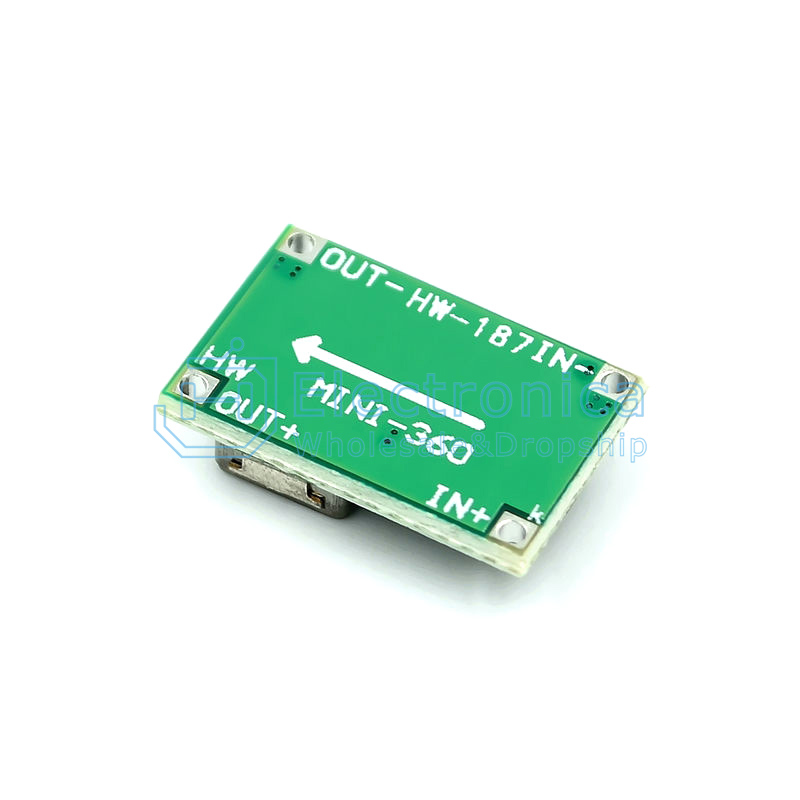

LM2596 Mini360 Power Supply Step Down Module

SKU : YXA290 Brand : JH Stock

Price : $ 0.17

100 +: $0.17500 +: $0.171000 +: $0.17
