Description

Product Parameters:
AC input(VAC):85-264
DC input(VDC):110-370
Frequency range(Hz):47-63
Input current(A):0.5/115VAC,0.25/230VAC
Inrush current(A):Cold Start,10A/230VAC

Product Features:
This module is a switch power supply module AC220-DC isolation switch power supply. The product is easy to install, and the input and output can be installed with VH3.96 terminals or pins for use. There are fixed installation holes at the four corners to prevent power outage caused by movement/vibration of the product. The straight diameter of the fixing holes is 4mm. Global universal input voltage: 85-264VAC or 110-370VDC. High efficiency, high power density, and low output ripple noise. High isolation between input and output. Overcurrent protection, short circuit protection, and temperature protection. The output is equipped with built-in filtering and does not require an external filtering circuit

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

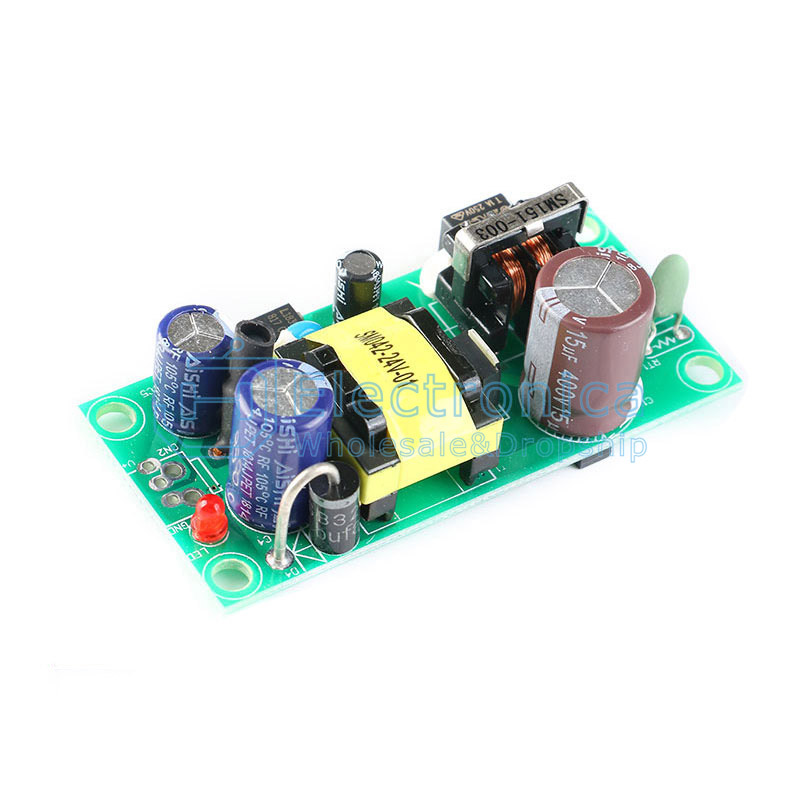

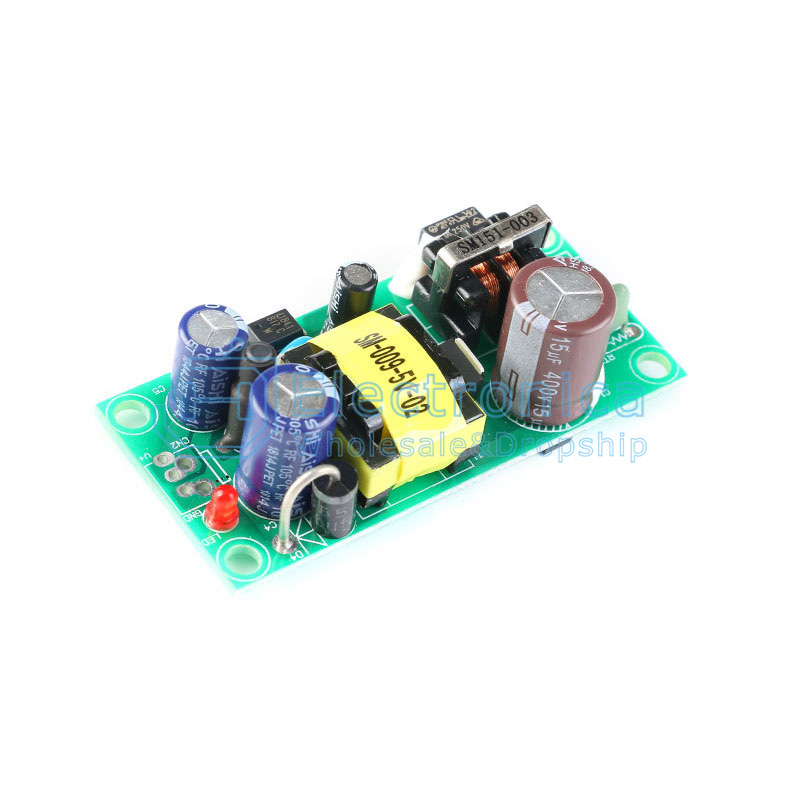

SM-PLF12B-5/9/12/24V AC220V-DC Switching Power Module

SKU : YXS1059 Brand :

Price : $ 2.34

100 +: $2.34500 +: $2.341000 +: $2.34

Style：

24V
5V

Quantity :

- +

ADD TO CART
