Description

Input voltage range:DC 10V~75V
Output adjustable voltage range:DC 0~60V
Output adjustable current range:0~12A
Output power:0~720W
Output voltage setting resolution:10mV
Output current setting resolution:10mA
Power supply effect:CV<0.5%+10mV CC<1%+10mA
Load effect:CV<0.5%+10mV CC<1%+10mA
Output ripple:<50mVPP(input 54V,output 12V,current 5A)
100Hz transmission ratio:<1/10000
Typical efficiency:94%(input 54V,output 30V,current 5A)
Voltage display error:±1%+20mV
Current display error:±2%+20mA
Response time:<50ms
Save operation:M0~M9 10 groups of data
Working temperature:0~40℃
Storage temperature:-20℃~70℃
Size:101*75*48mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

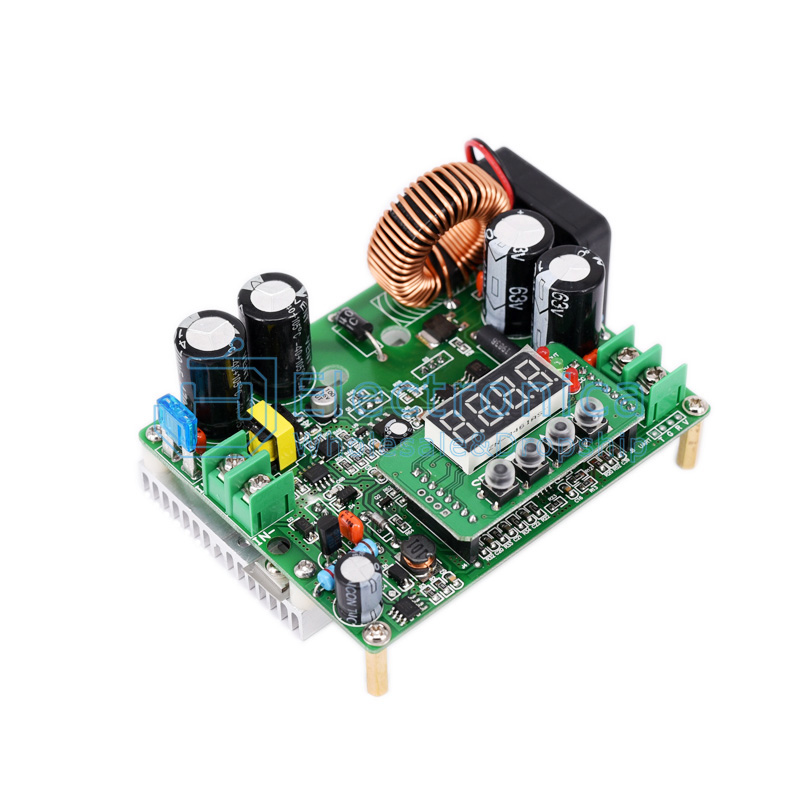

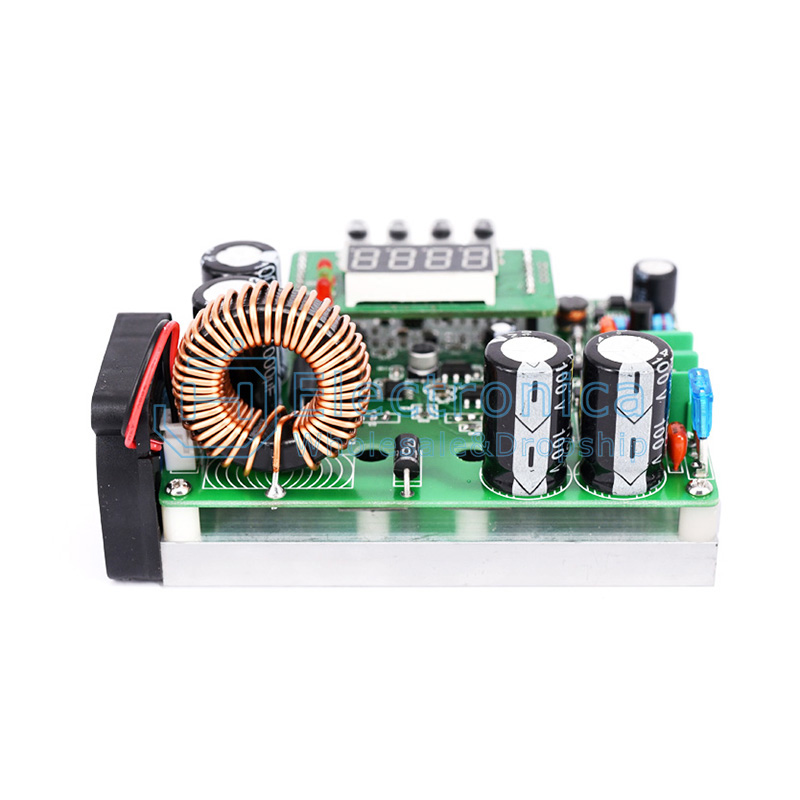

DC-DC Digital Control Adjustable Buck-regulated Power Module

SKU : YXS1548 Brand :

Price : $ 18.44
