Description

Input voltage (Vin):DC 5-24V
Current consumption:5mA
Output voltage (high level):Vin
Output voltage (low level):0V
Output current:1-100mA
Response time:500mS
Working environment temperature:0-85℃
Sensing thickness (sensitivity) range:≤20mm
Liquid level error:±1.5mm
Humidity:ABS
Material:5%~100%
Waterproof performance:IP67
Product Introduction:

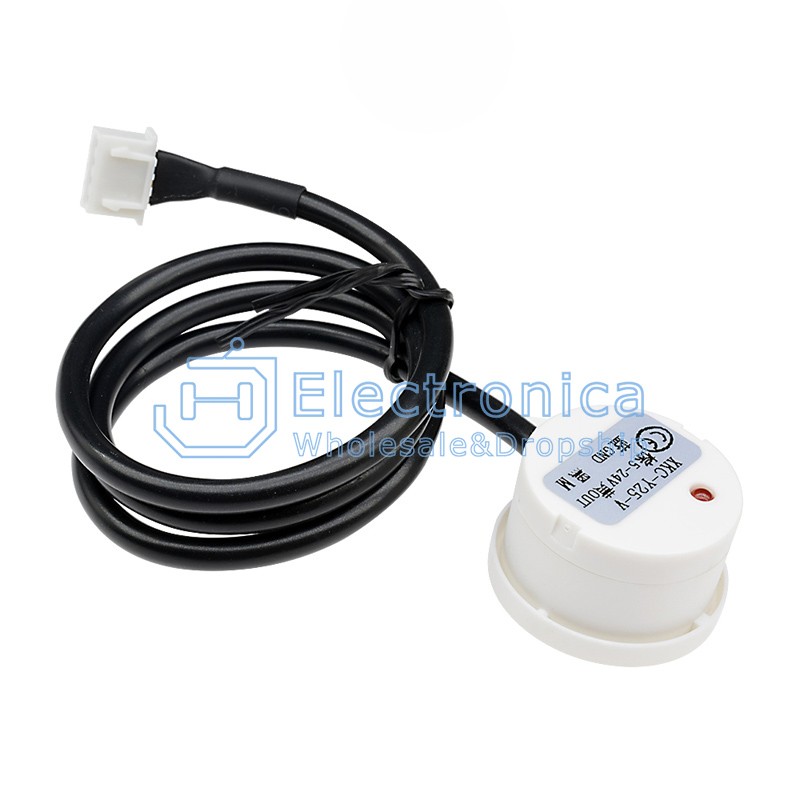

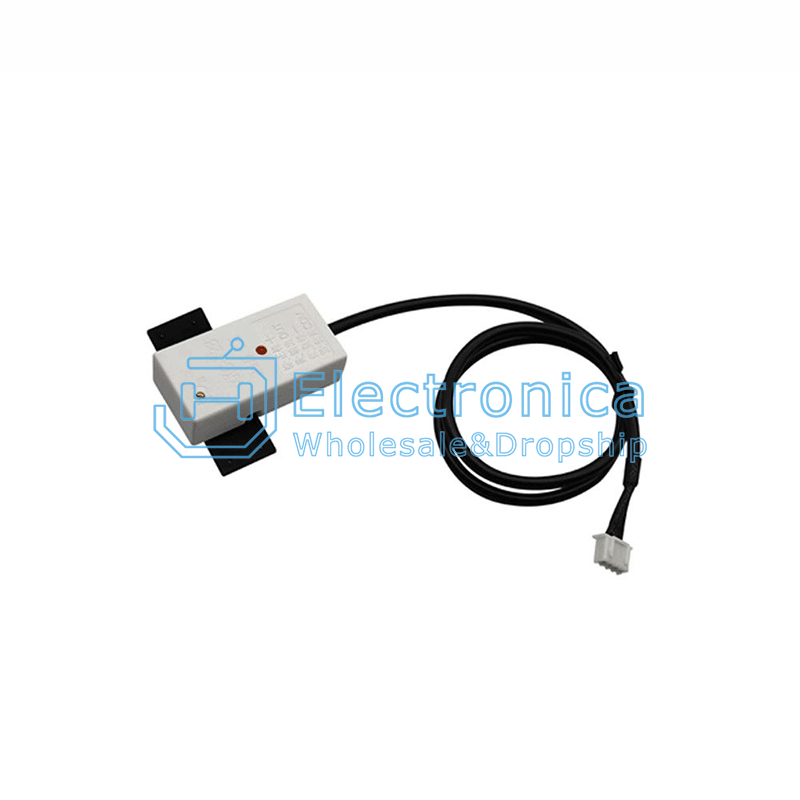

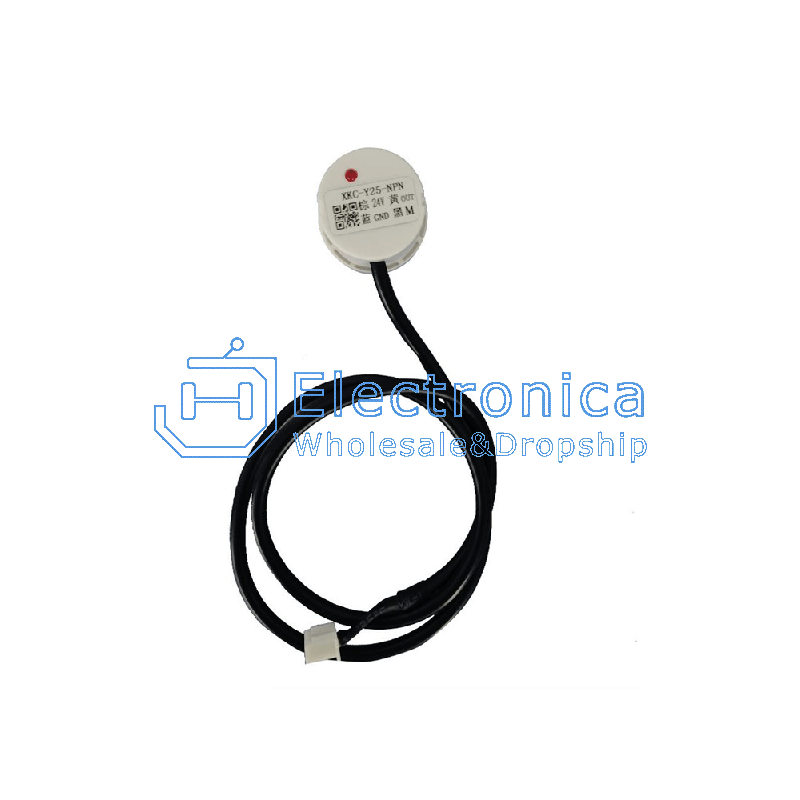

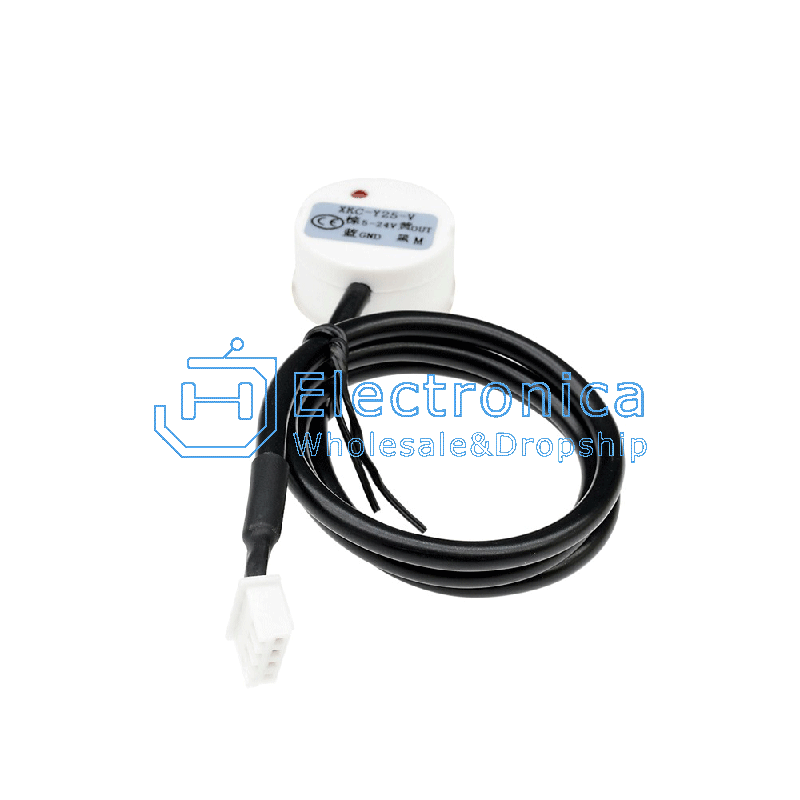

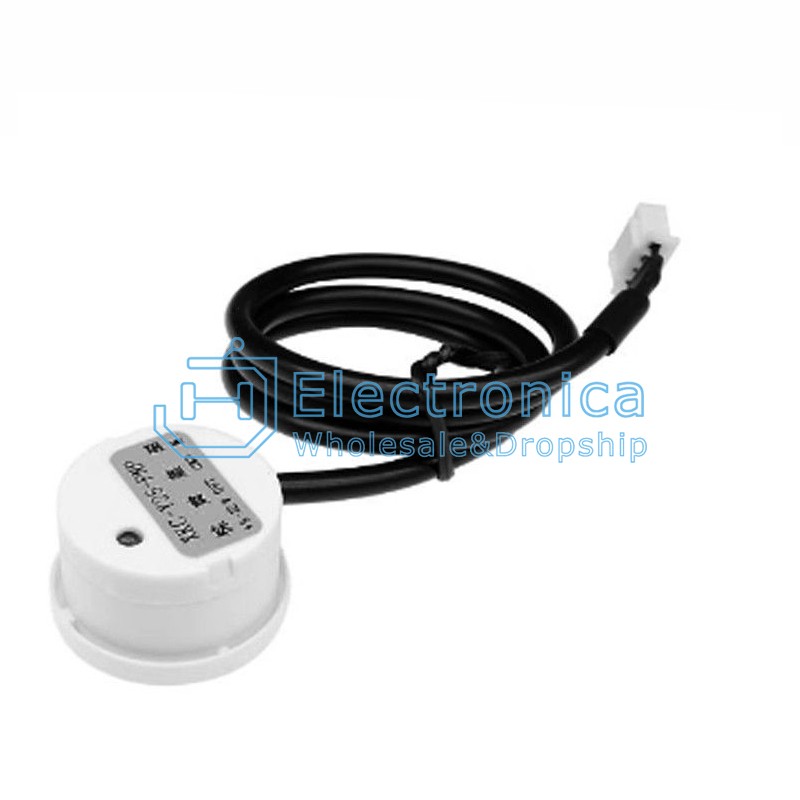

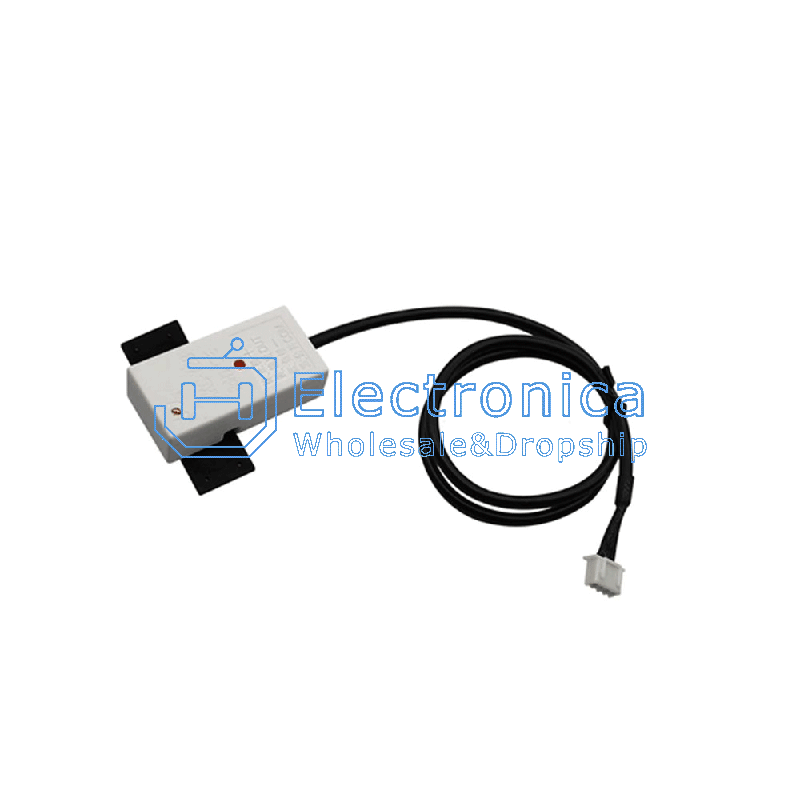

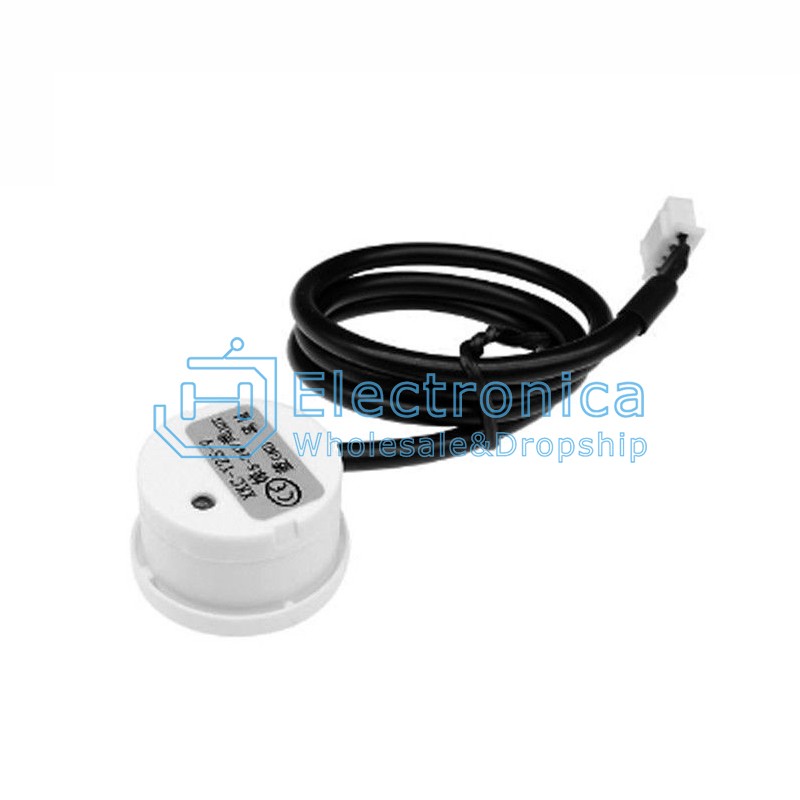

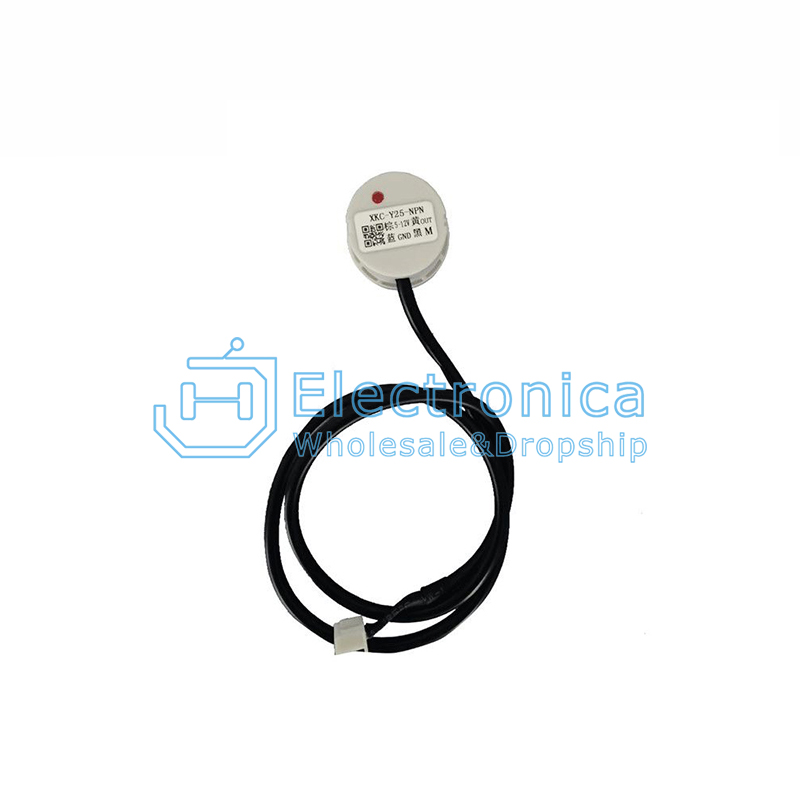

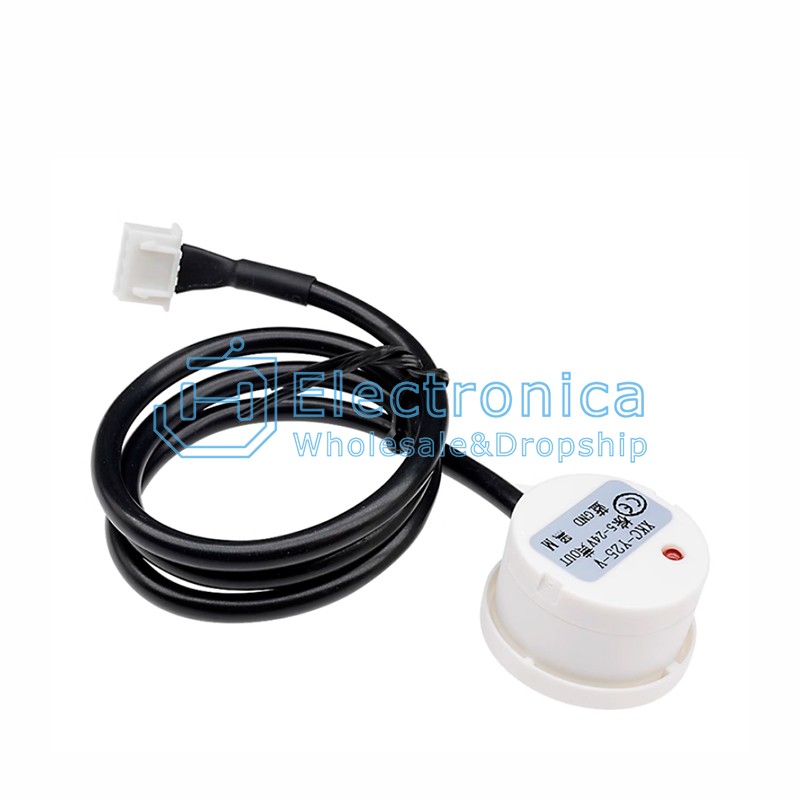

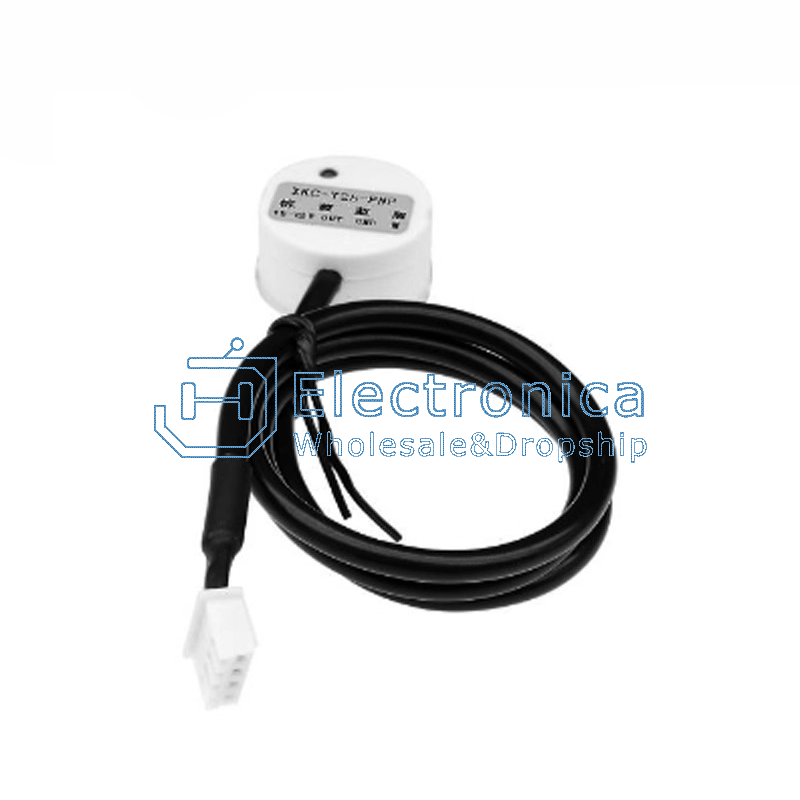

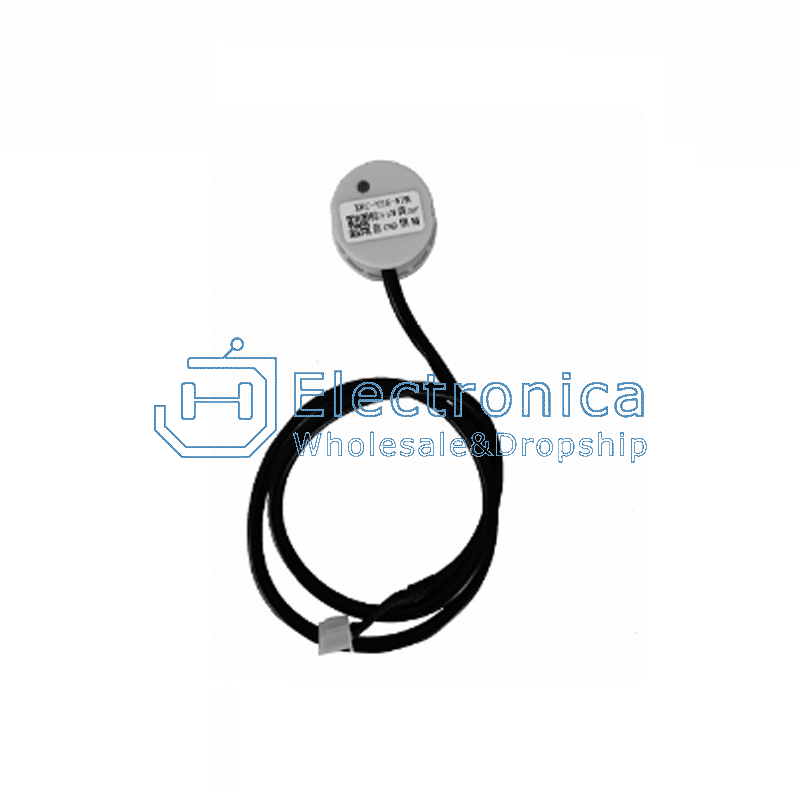

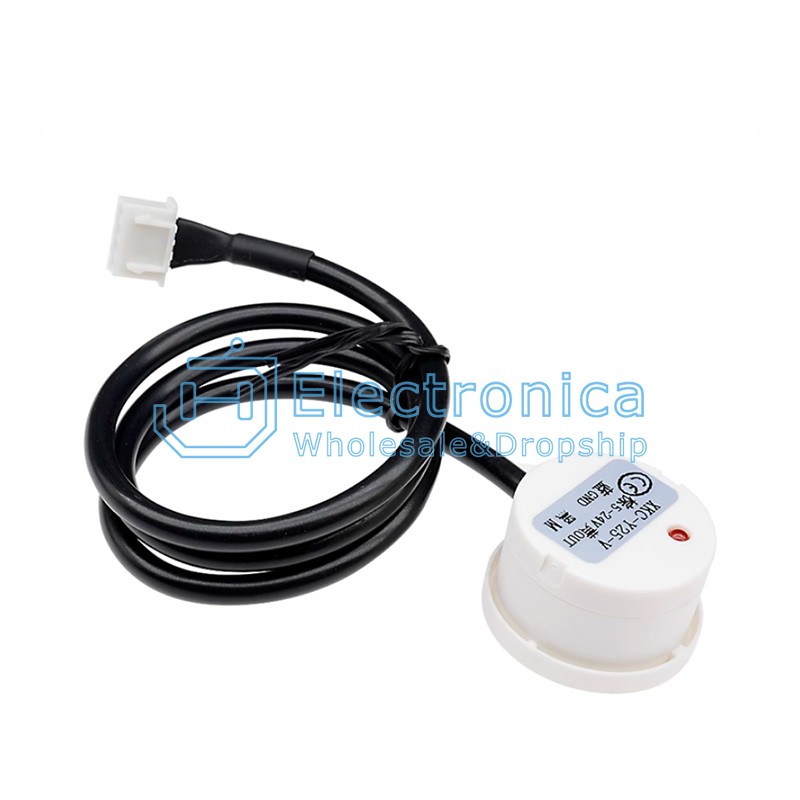

The Non Contact Liquid Level Sensor adopts advanced signal processing technology and high-speed signal processing chips, breaking through the influence of container wall thickness and achieving true non-contact detection of liquid level height inside sealed containers. The liquid level sensor (probe) is installed above and below the outer wall of the tested container (high and low levels of the liquid level), and non-metallic containers do not need to be perforated, which is easy to install and does not affect production. It can detect the liquid levels of various toxic substances, strong acids, strong alkalis, and various liquids in high-pressure sealed containers. The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used
