Description

InInput voltage (Vin):DC 5-24 V
Current consumption:5mA
Output voltage (high level):Vin
Output voltage (low level):0V
Output current:1-100mA
Response time:500mS
Working environment temperature:0-85℃
Sensing thickness (sensitivity) range:≤20mm
Liquid level error:±1.5mm
Humidity:5%~100%
Material:ABS
Waterproof performance:IP67

Introduce
The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chips, breaking through the influence of container wall thickness and achieving true non-contact detection of the liquid level height inside sealed containers. The liquid level sensor (probe) is installed above and below the outer wall of the tested container (high and low levels of the liquid level), and non-metallic containers do not need to be perforated, which is easy to install and does not affect production. It can detect the liquid levels of various toxic substances, strong acids, strong alkalis, and various liquids in high-pressure sealed containers. The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

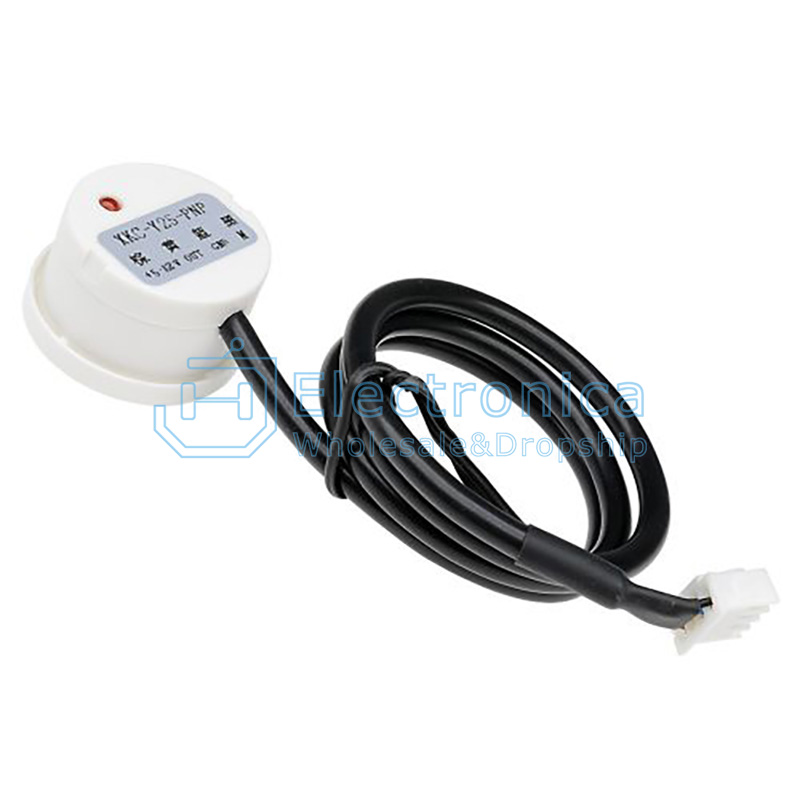

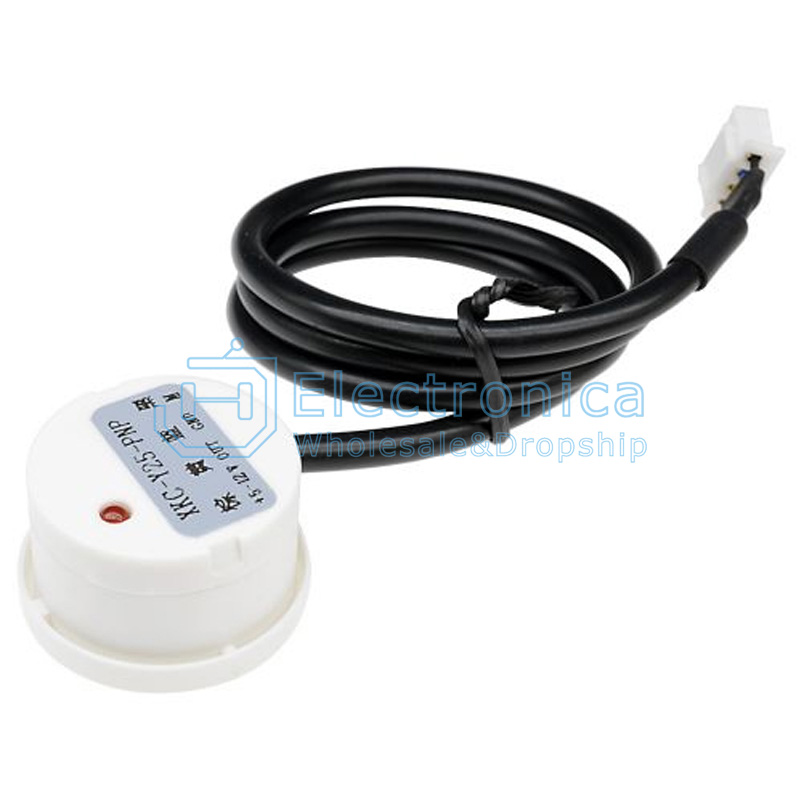

Non-contact Liquid Level Sensor

SKU : YXC1004 Brand :

Price : $ 4.27~6.74

100 +: $4.27~6.74500 +: $4.27~6.741000 +: $4.27~6.74

Style：

XKC-Y25-PNP[5-12V]

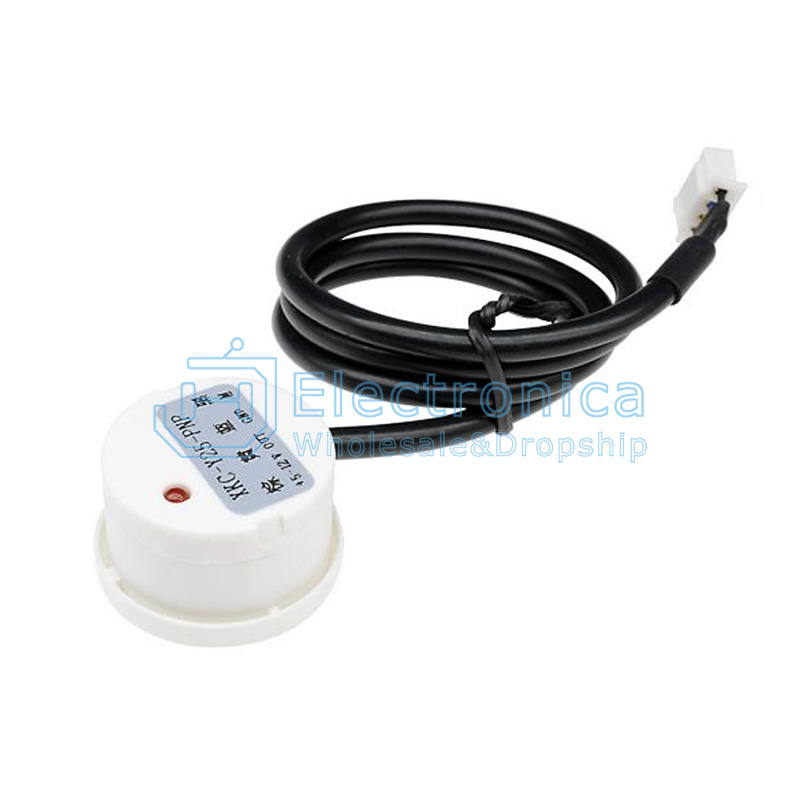

XKC-Y25-PNP [24V]

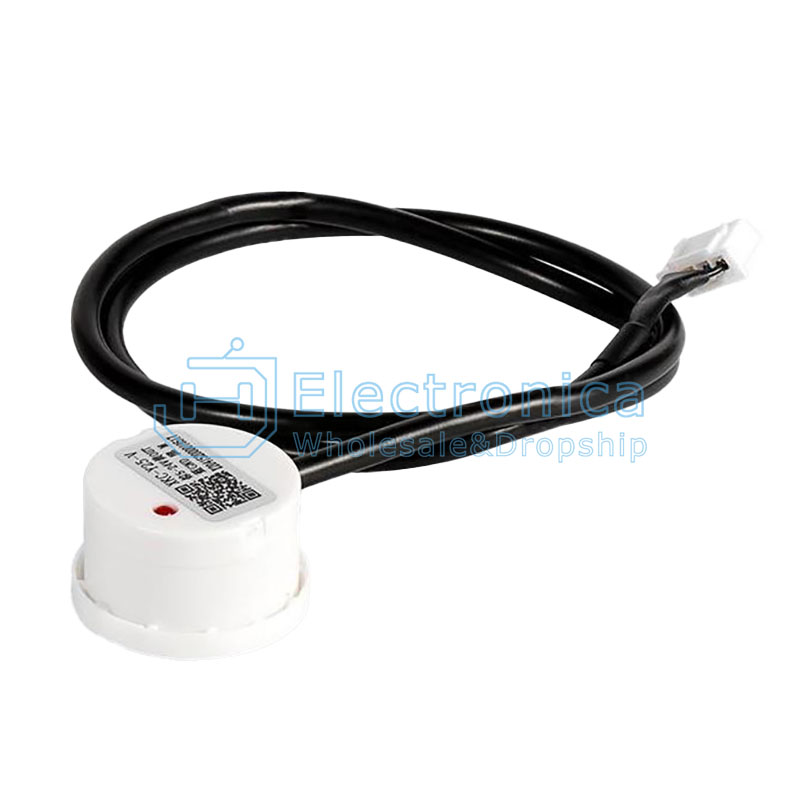

XKC-Y25-V[5-24V]

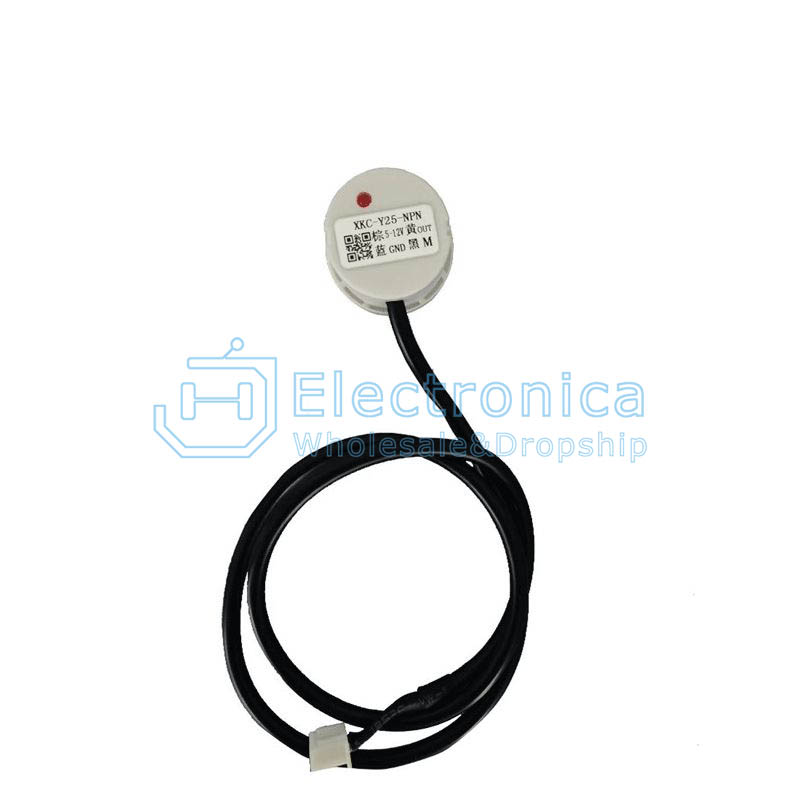

XKC-Y25-NPN[5V-12V]

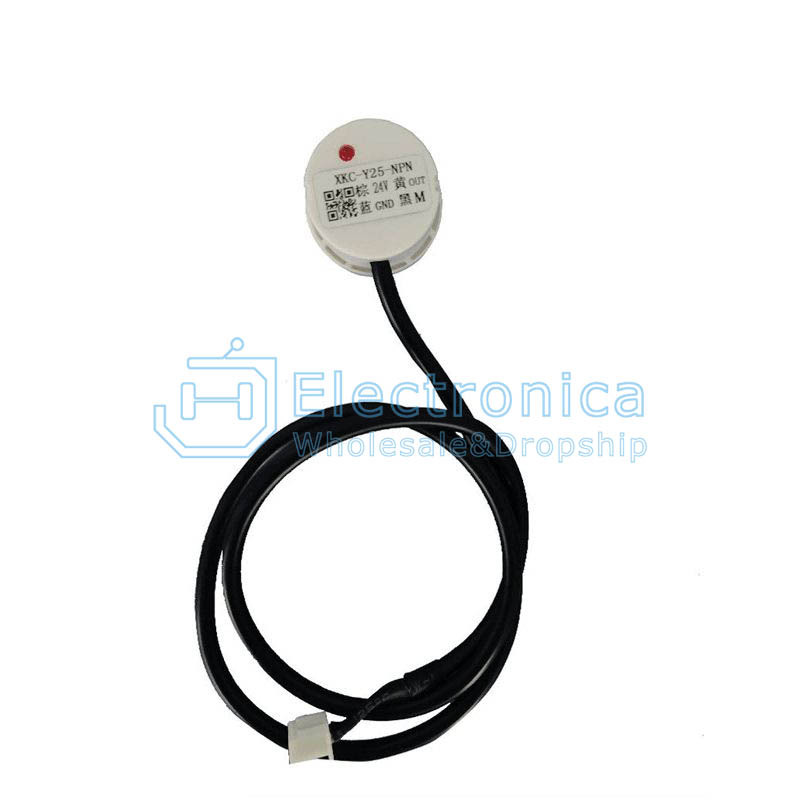

XKC-Y25-NPN[24V]

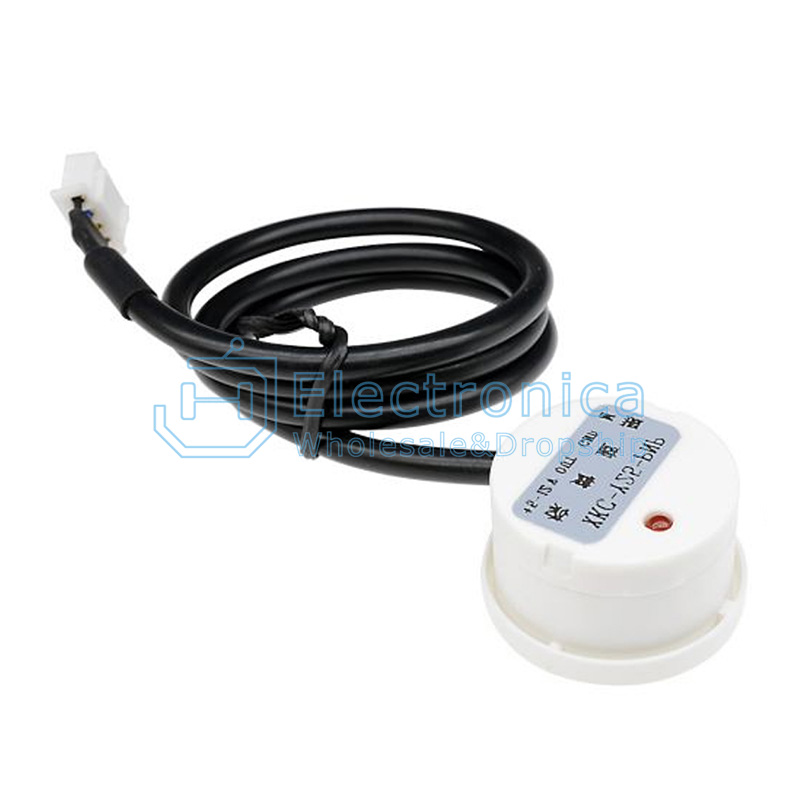

XKC-Y25-RS485[24V]

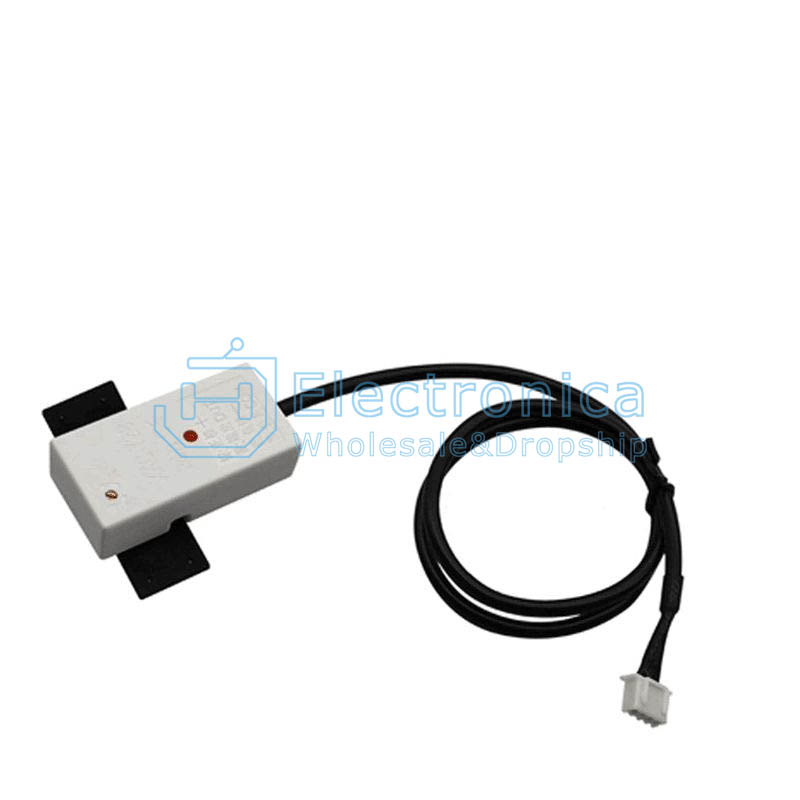

Relay output [XKC-Y28-NO] 24V normally open
Relay output [XKC-Y28-NO] 24V normally closed
