Description

1. Minimum rated working voltage: DC4.5 5V-24V
2. Maximum operating current: 15 mA (DC 5V)
3. Working voltage range: DC 5～18 V
4. Load capacity: ≤10 mA (DC 5V)
5. Operating temperature range: ≤80℃
6. Operating humidity range: 35%～90%RH (no frost)
7. Allowable pressure: water pressure below 1.75Mpa
8. Storage temperature: -25～+80℃
9. Storage humidity: 25%～95%RH
10.Lead-out method:
Red - IN: connected to the positive pole
Yellow - OUT: signal output line
Black - GND: connected to negative pole

Product Features:
1.This product has a light and flexible appearance,small size,and is easy to install
2.The impeller is embedded with a stainless steel shaft,which is always wear-resistant
3.The sealing ring adopts the structure of upper and lower force and never leaks
4.The Hall element is imported from Germany and encapsulated with potting glue to prevent water ingress and never age
5.All raw materials meet ROHS testing standards

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

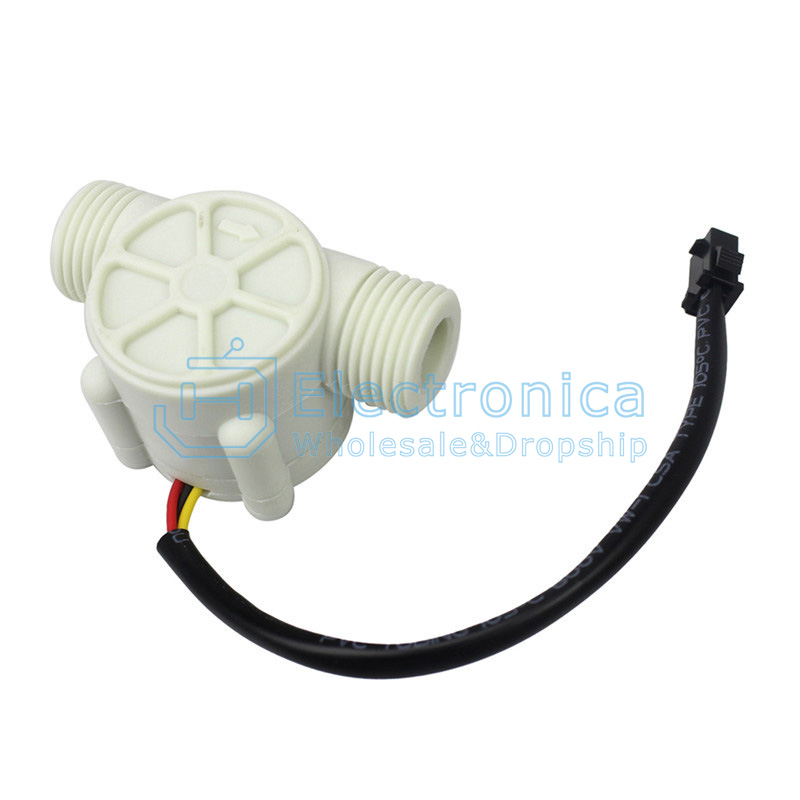

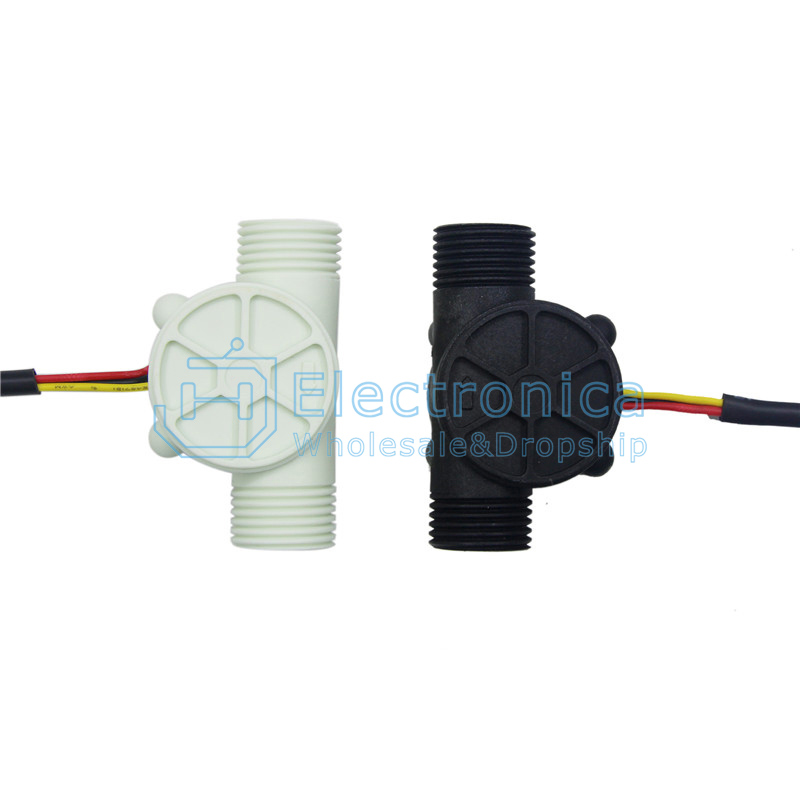

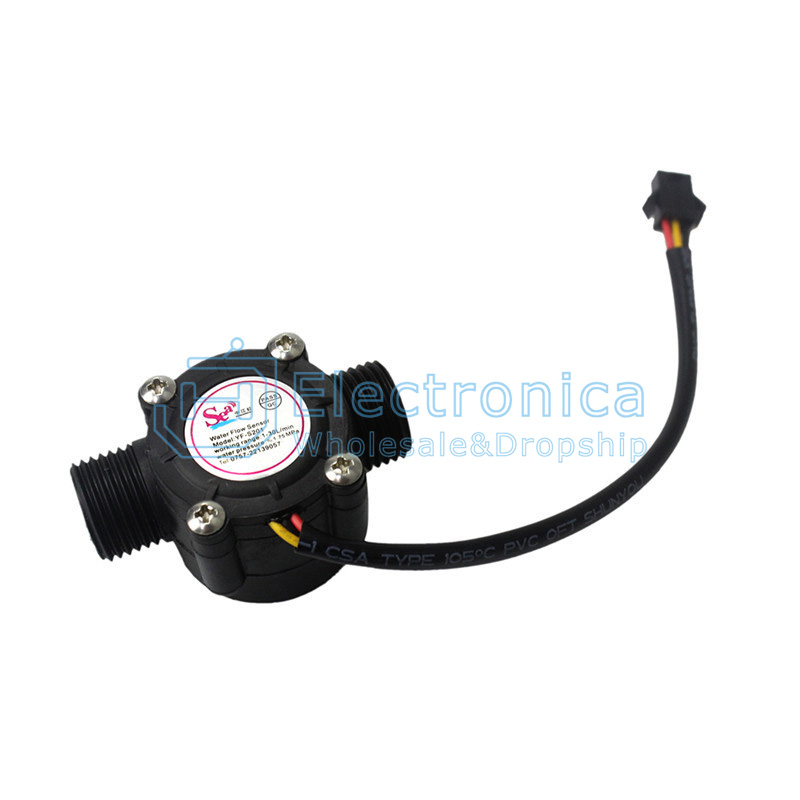

YF-S201 Water Flow Sensor

SKU : YXM078 Brand : JH Sourcing

Price : $ 1.31

100 +: $1.31500 +: $1.311000 +: $1.31

Colour：

Quantity :

- +

ADD TO CART
