Description

Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
High amplitude: ≥ 4.6V
Low amplitude: ≤ 0.5V
Electric strength: 1250V/min
Insulation resistance: ≥ 100MΩ

Hydro static pressure testing: ≤ 2.0Mpa

Specification:
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~18V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

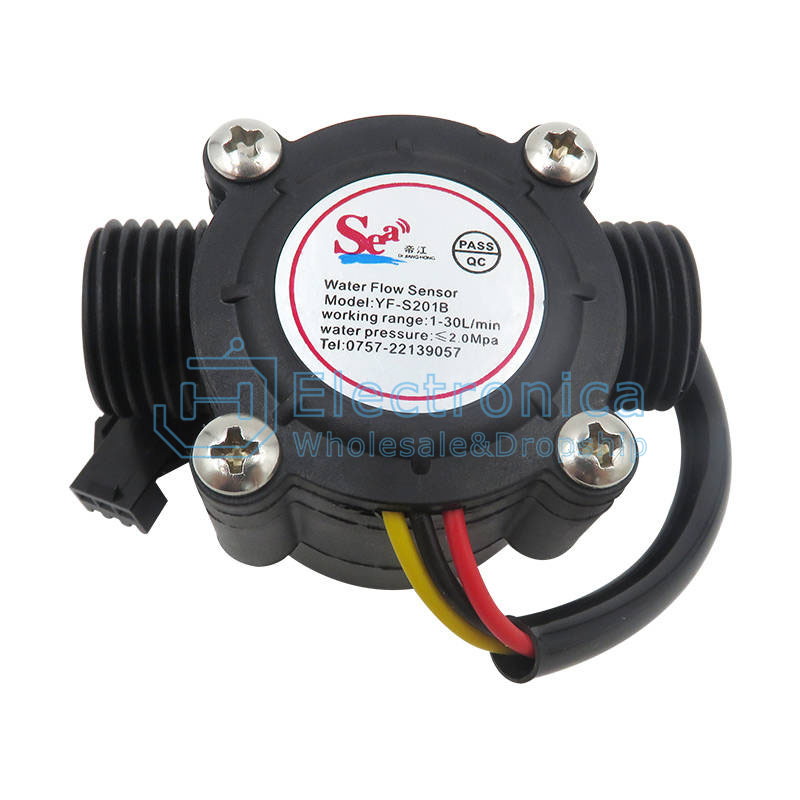

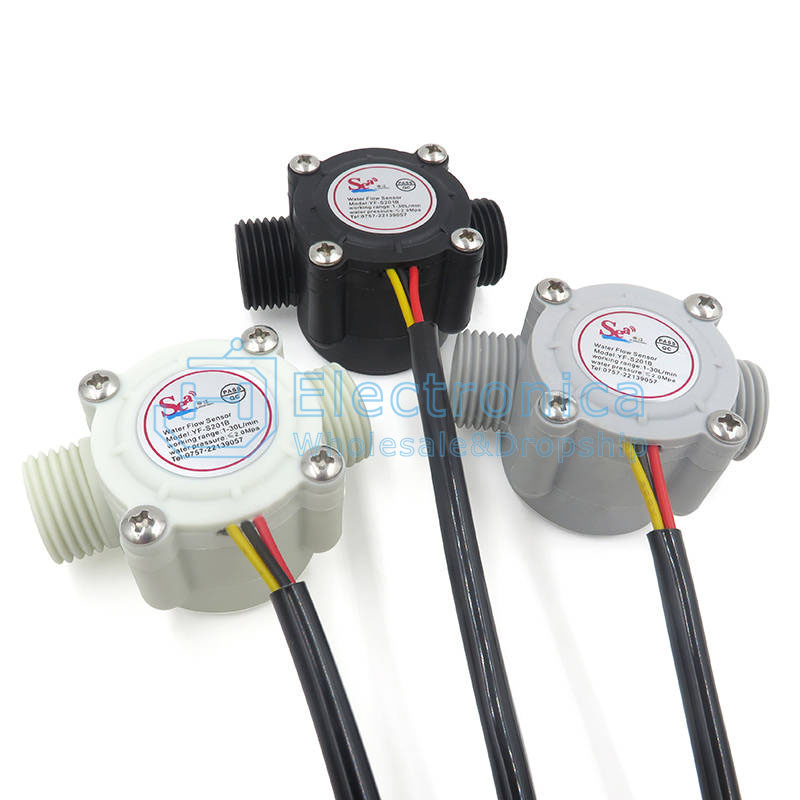

S201B Water Flow Sensor

SKU : YXR038 Brand : JH Sourcing

Price : $ 1.88

100 +: $1.88500 +: $1.881000 +: $1.88

style：

Quantity :

- +

ADD TO CART
