Description

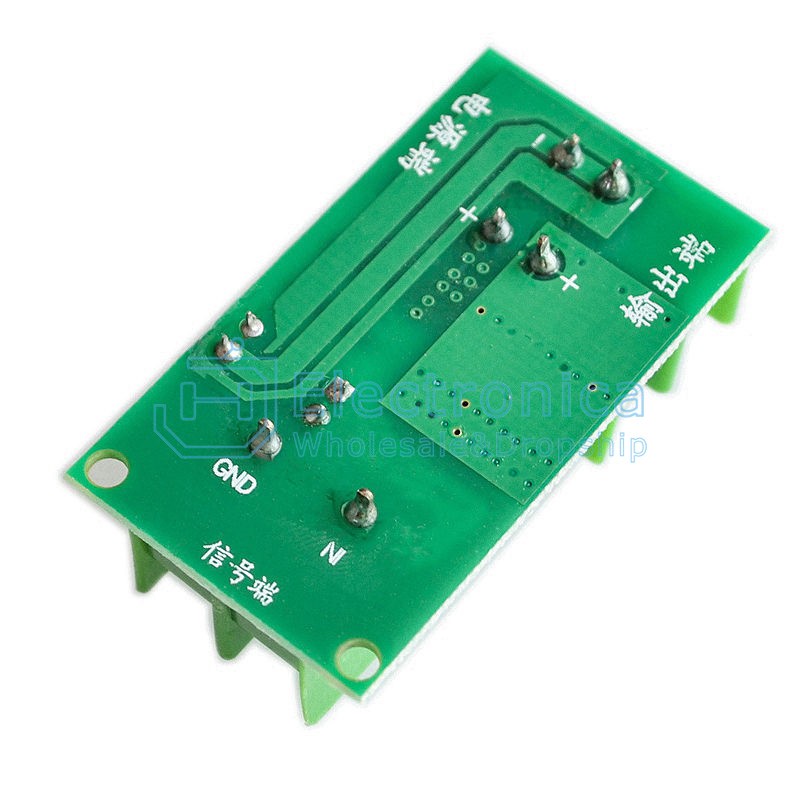

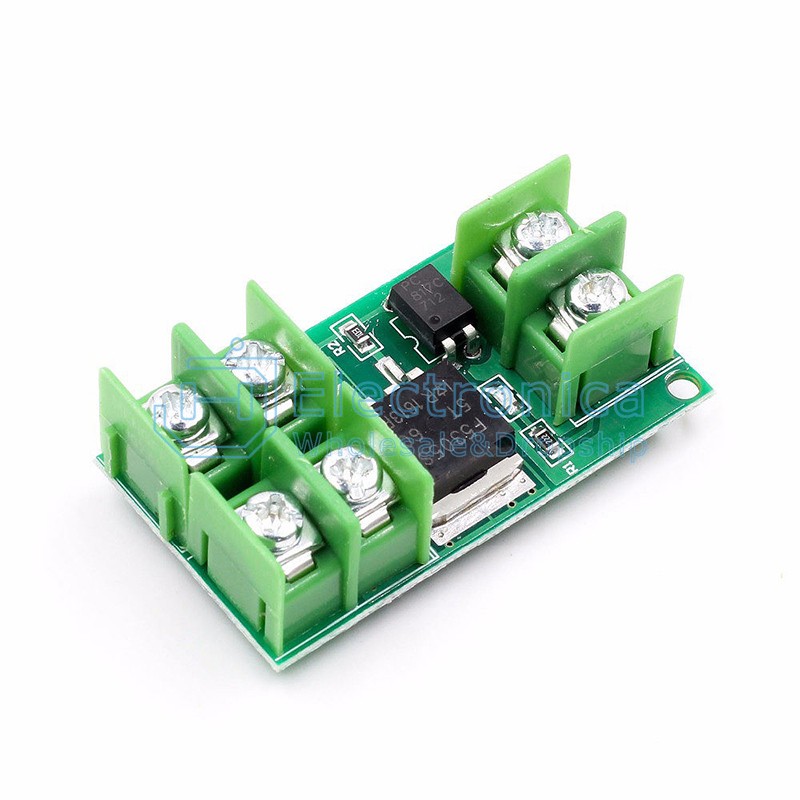

FET modules, input and output is fully isolated.
The signal triggers the end: the digital high-low.IO ports can be connected microcontroller, PLC interfaces, DC power supplies.
The input voltage: 3V-20V; Current: 5mA or so.
You can control the power output of the equipment, motors, light bulbs, LED lights, DC motors, miniature pumps, solenoid valves, etc.
Output controlled voltage: 5V-36V. Current: less than 5A, if the current is more than 5A, heat sank is needed
The maximum should be less than 20A.
The original F5305S power FET can enter PWM, control the motor speed, the lamp brightness.
Overall Size : 46 x 25 x 18mm(L*W*H)
Weight : 15g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

MOS Electronic Control Pulse Triggered Module

SKU : YXK440 Brand : JH Stock

Price : $ 0.40

100 +: $0.40500 +: $0.401000 +: $0.40

Quantity :

- +
