Description

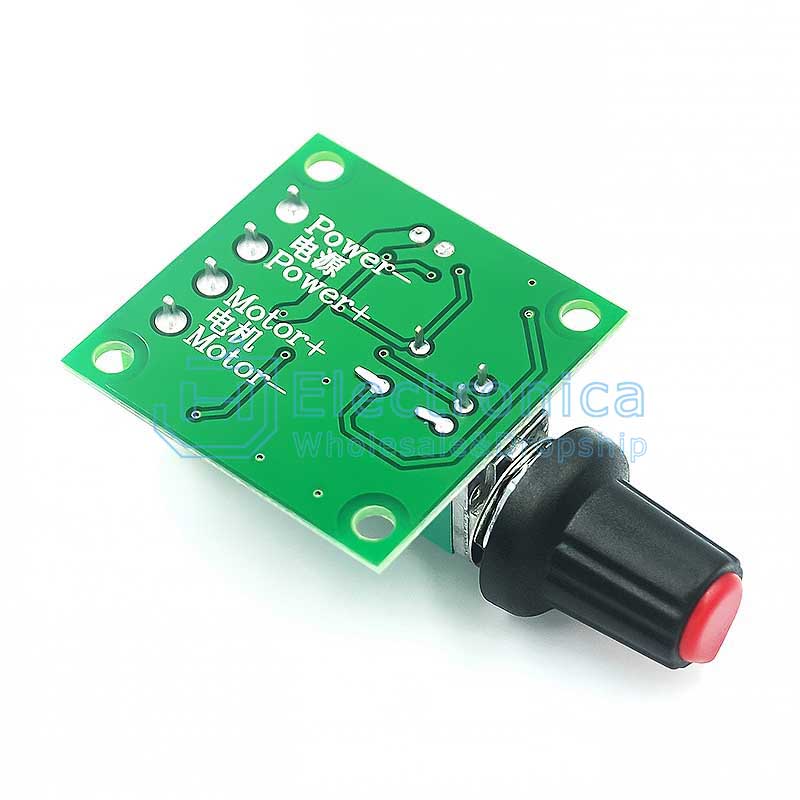

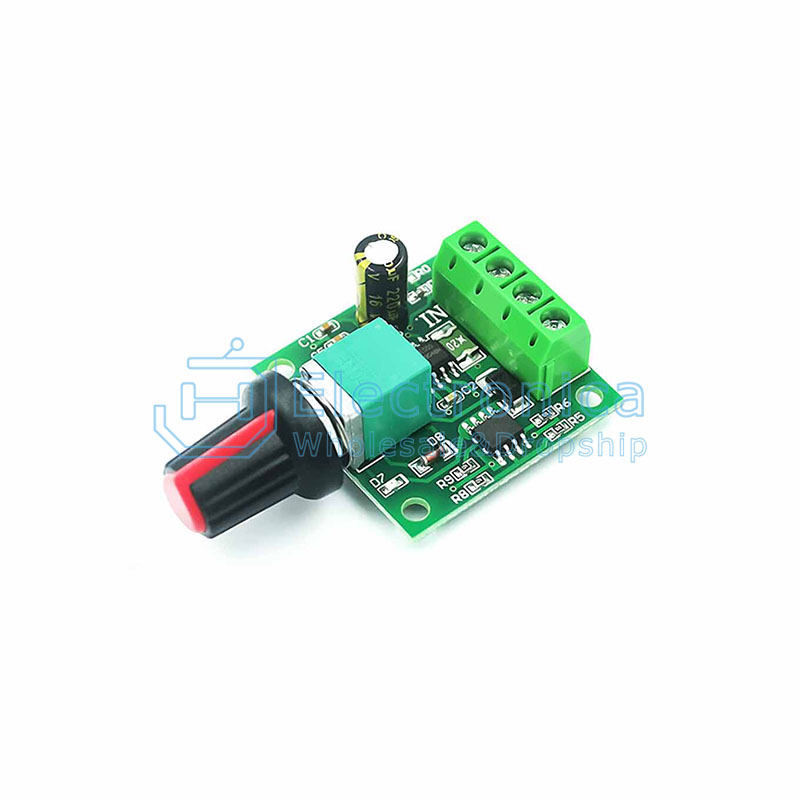

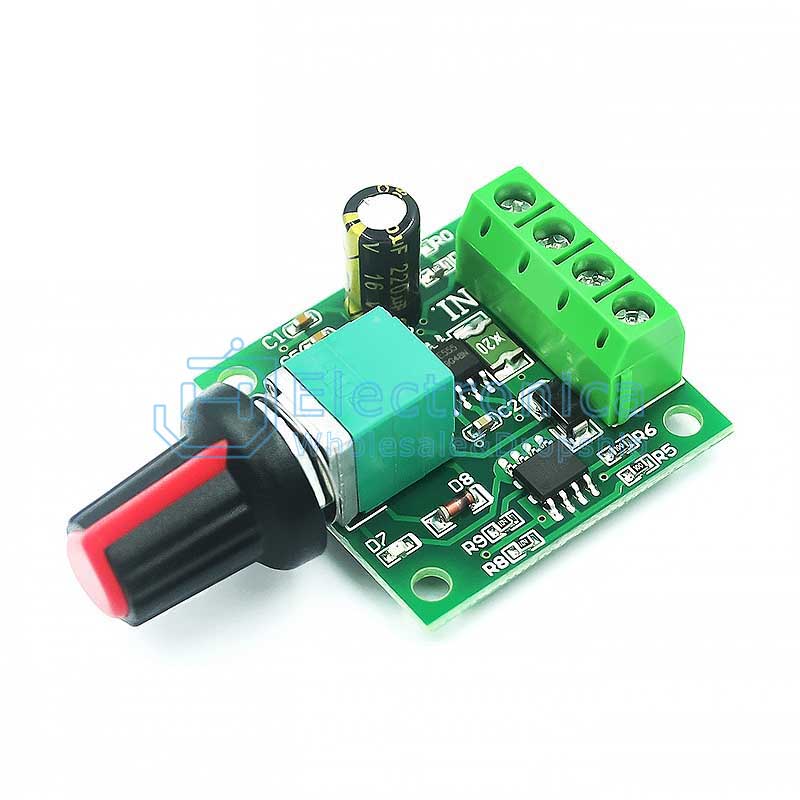

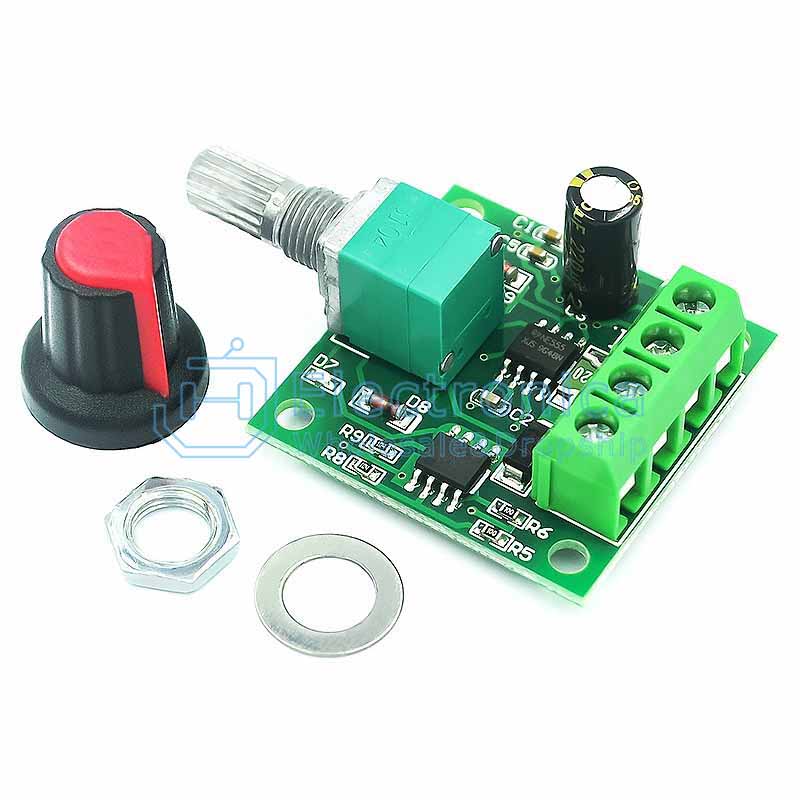

Input supply voltage: DC1.8V-15V
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%

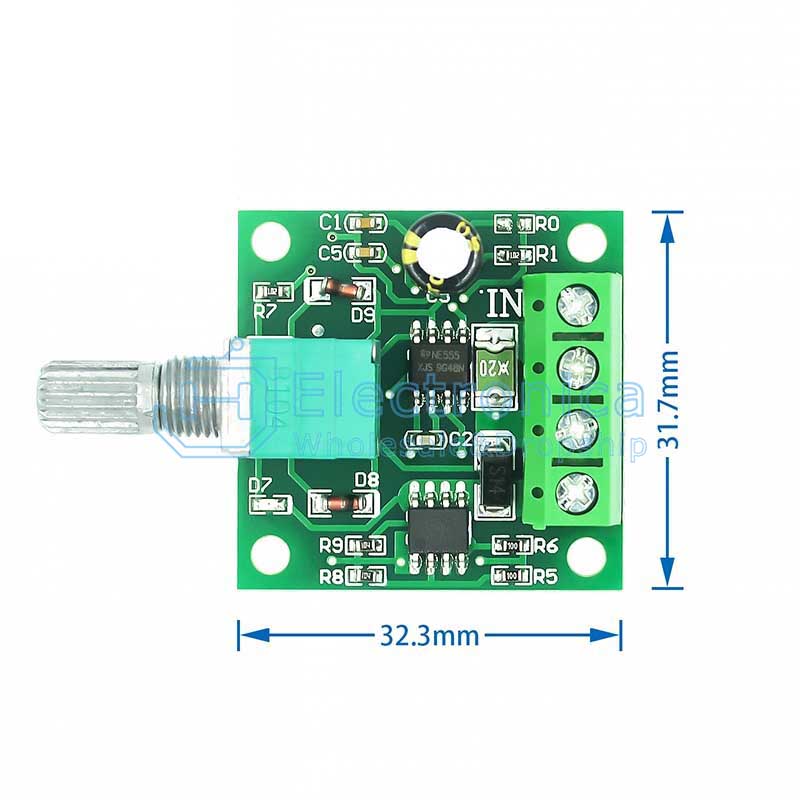

Size: approx. 32.3*31.7*14mm
Features
1. Allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
2. With a self-recovery fuse 2A and a Power-On LED light.
3. Enable to provide a continuous current of 2A to your DC motor or other DC load.
*3A 6V-28V
Voltage: DC6V-28V
Current :3A
Speed regulation range: 0%-100%
Size: approx. 50mm*32mm*15mm

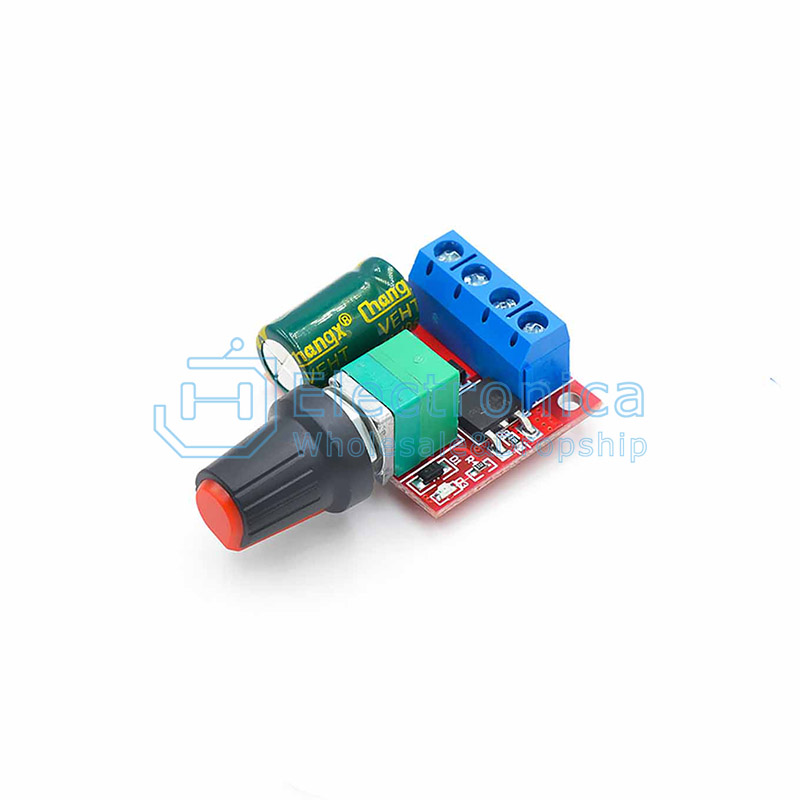

Working Voltage: 3v-35v
Control power (maximum): 90W
Quiescent current: 0.015A (standby state)
PWM frequency: 10kHz
Duty cycle: 1% - 100%
Model: ZS-X4A
Size: 30mm * 24mm * 15mm

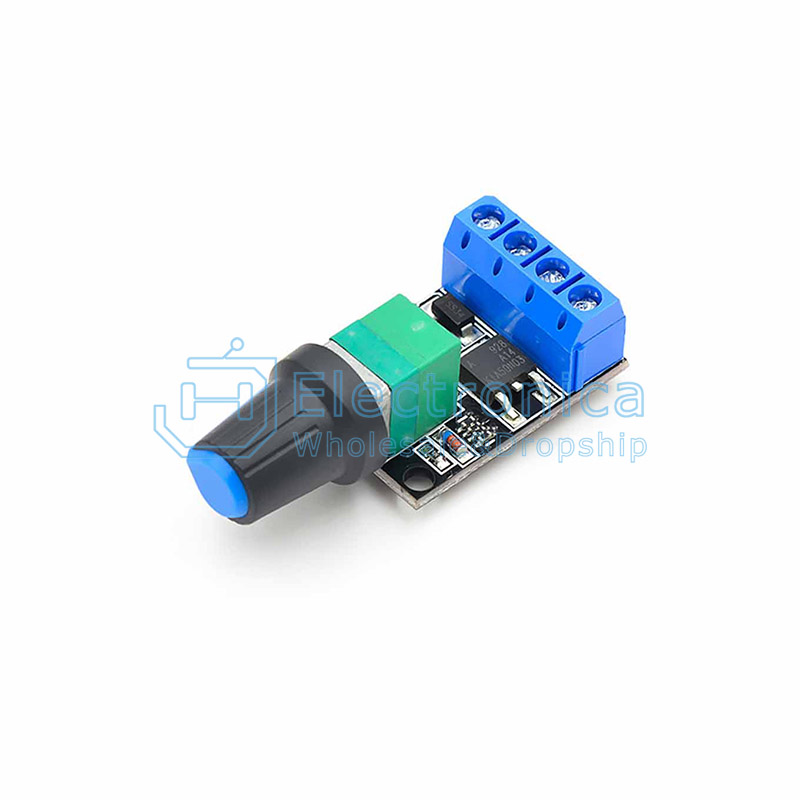

* 5A 4.5V-35V
Working Voltage: DC4.5V-35V
Output Current:0-5A
Control power (maximum): 90W
Quiescent current: 7u A (standby state)
PWM frequency: 20kHz
Size: 30mm * 26mm * 14mm

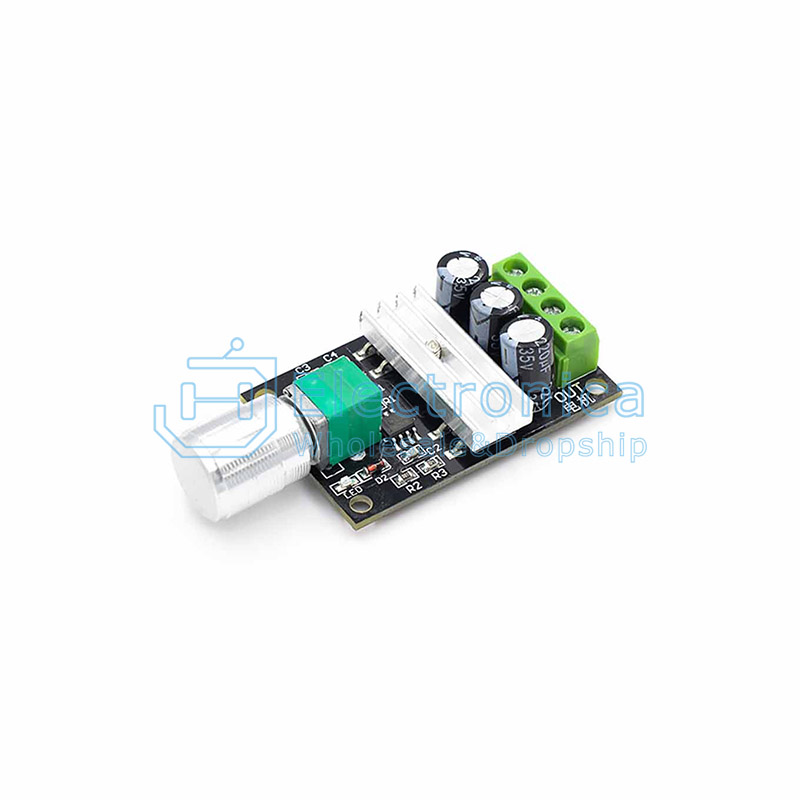

* 10A 5V-16V
Voltage :5V-16V
Current: 10A
Duty cycle :0%-99%
Size: 30mm*20.5mm

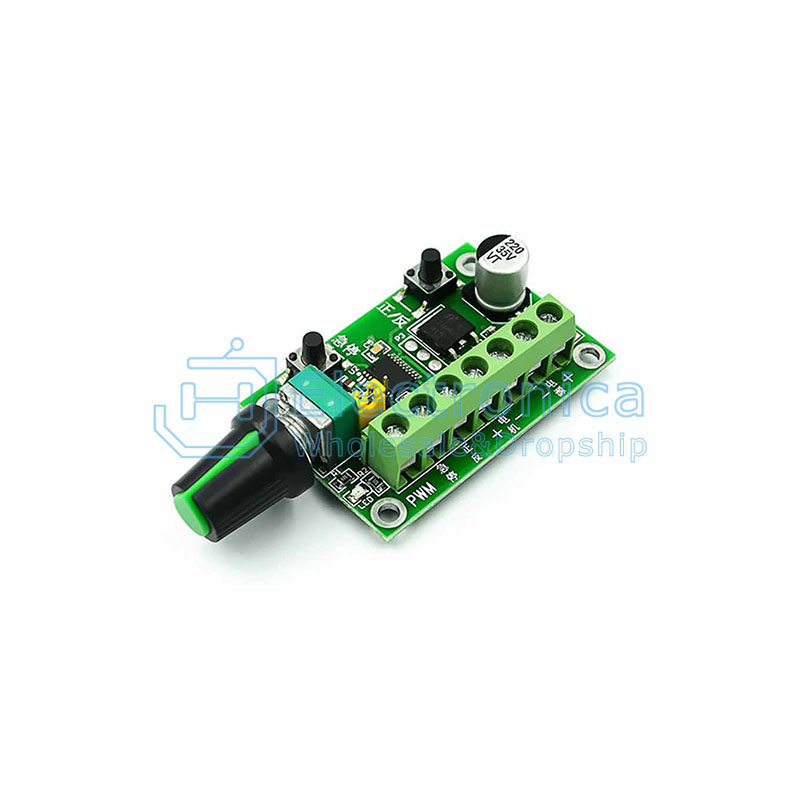

* Brushless motor controller 6V-30V
voltage :6V-30V
Size :47mm*32.1mm
Applicable to 3650, 352524182430 and other three-phase brushless motor series
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
1803BK 1203BK 2A 3A 5A 10A PWM DC Motor Speed Controller
SKU : YXB152 Brand : JH Stock
Style：
2A 1.8-15V
3A 6-28V
5A 3-35V
5A 4.5-35V
10A 5-16V
Controller 6-30V
