Description
Potentiometer:resistance B100K;opening 8mm
Working voltage:DC12V-40V
Control power:12V*3A=36W,24V*3A=72W,.....40V*3A=120W
Rated current:3A
Maximum current:5A
Speed range:10%-100%
Size:73mm*39mm*31mm
PWM frequency:15kHz
Weight:61g
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

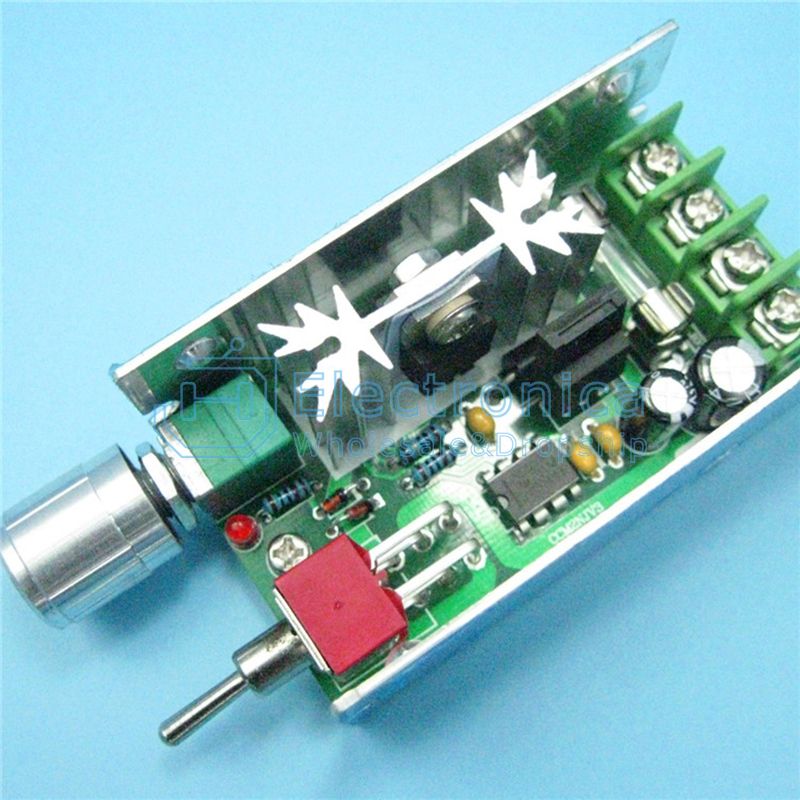

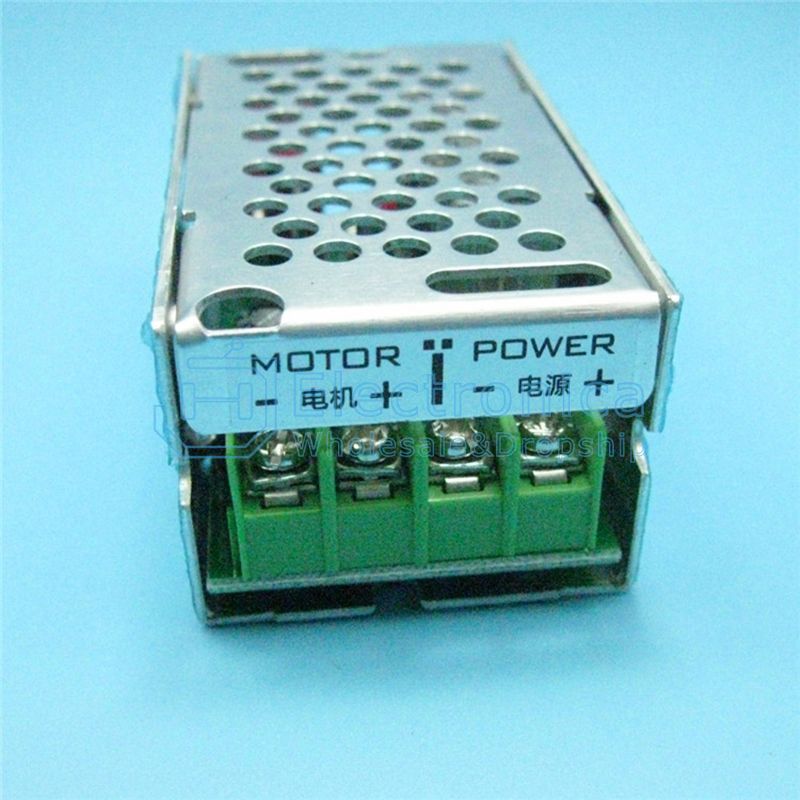

CCM2NJ 12-40V PWM DC Motor Speed Controller with Switch
SKU : YXC848 Brand :
