Description

Input Voltage: DC 9-60V
Output Voltage: Linear Load
Output Current: 0-20A
Maximum Current: 20A
Continuous Current: 18A
Continuous Power: 1200W
Control Frequency: 25KHZ
Speed Regulating Type: Adjust Flow
Speed Mode: Potentiometer (linear)
Speed Range: 0-100%
Potentiometer Mounting Hole: 7mm (Approx.)
Module Size: 77 x 45 x 28mm/3.03 x 1.77 x 1.10 inches (Approx.)
Board Size: 73 x 40mm/2.87 x 1.57 inches (Approx.)
Please note:
1.This governor is used for the use of DC brushed motor
2.It is not suitable for speed regulation of DC brushless motor;it cannot be used as a voltage regulator or regulator

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

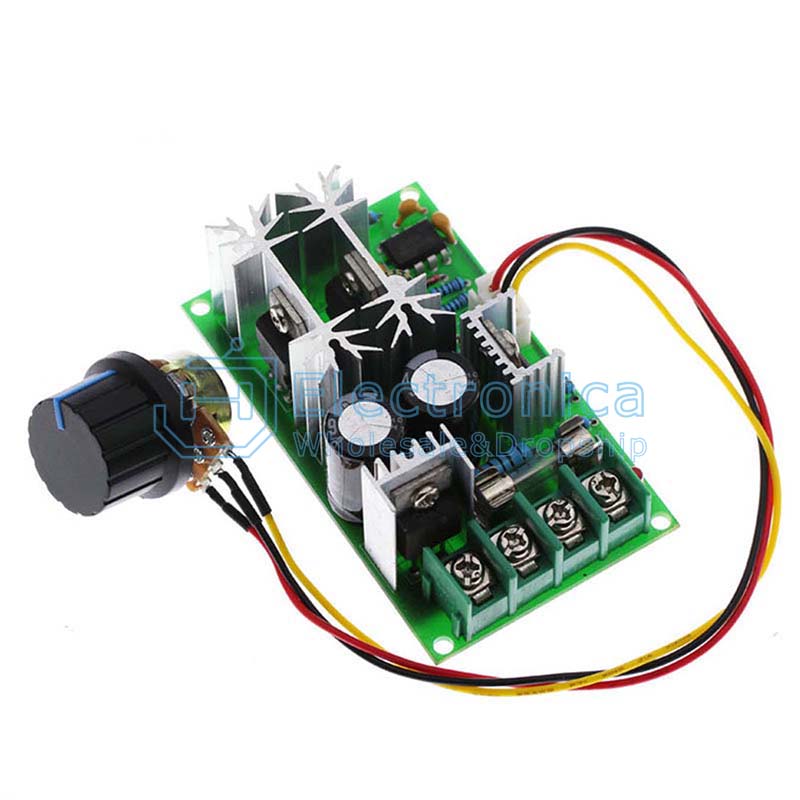

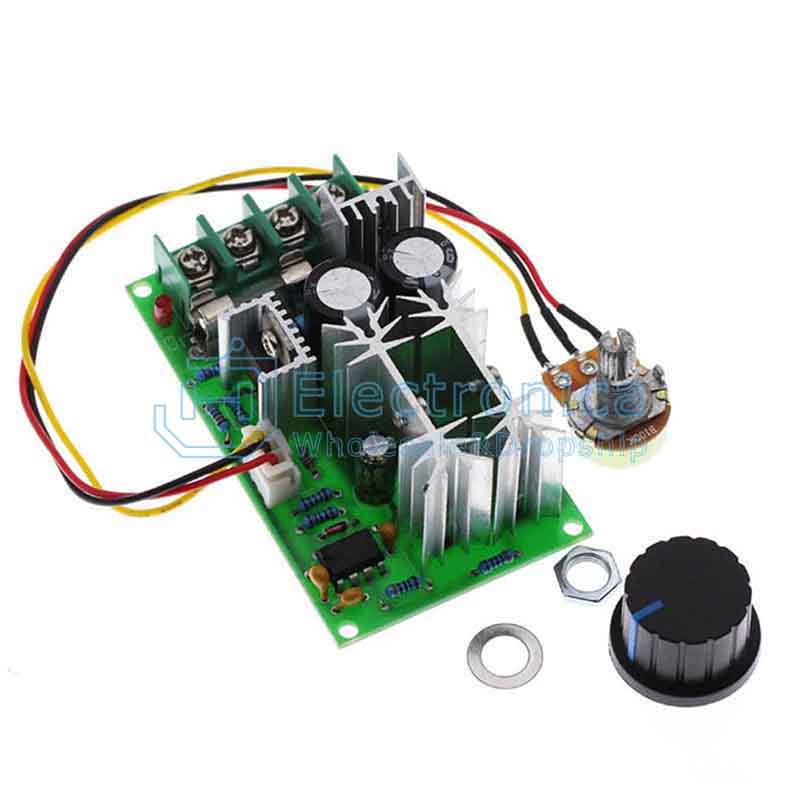

12V24V36V48V High Power Drive Module PWM Controller DC Motor Governor

SKU : YXA314 Brand : JH Stock

Price : $ 1.05

100 +: $1.05500 +: $1.051000 +: $1.05

Quantity :

- +

ADD TO CART
