Description

M18:
KEY:Button control terminal (4 button functions, need to add additional resistant)
MUTE:Mute control terminal (output high level 3.3V when mute, low level when playing)
VCC:Positive power supply 5V (short circuit diode required for 3.7V lithium battery power supply)
GND:Power negative
L:Left channel output
R:Right channel output

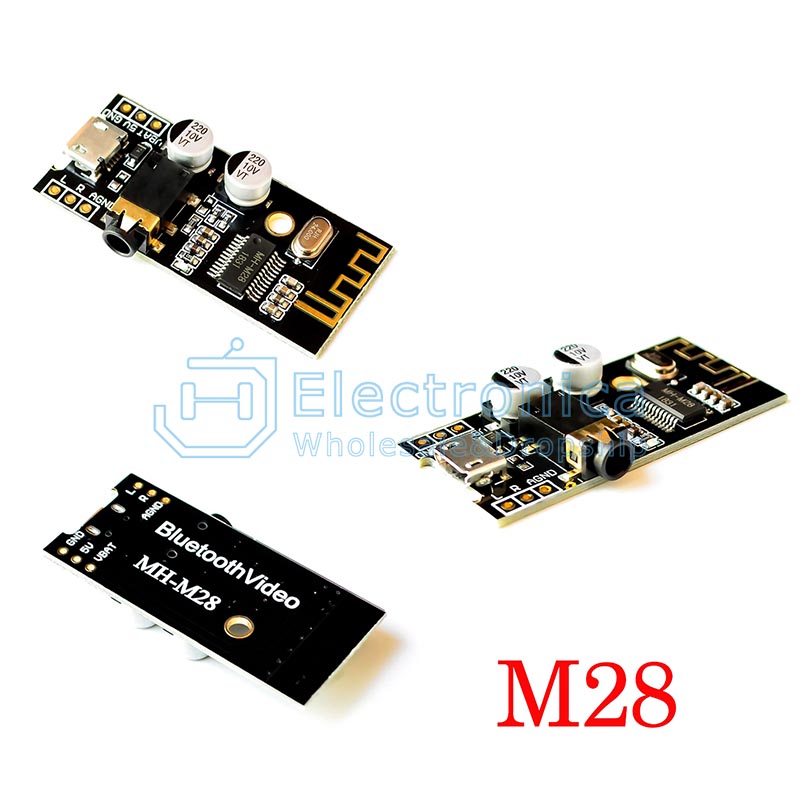

M28:
5V:Power positive 5V
GND:Power negative
VBAT:Lithium battery positive electrode 3.7-4.2V
L:Left channel output
R:Right channel output
AGND:Audio frequency

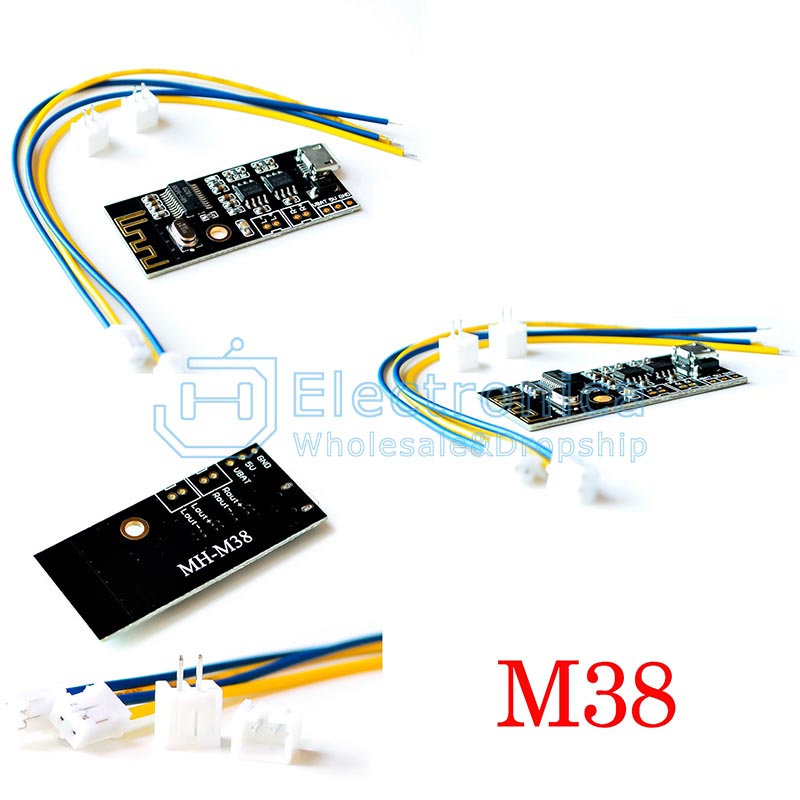

M38:
5V: power supply positive 5V
GND: negative power supply
VBAT: Lithium battery positive electrode 3.7-4.2V
L + / L-: Left channel output (directly connected to the speaker)
R + / R-: right channel output (directly connected to the speaker)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

MH-MX8 M18/28/38 Wireless Bluetooth Audio Module

SKU : YXA003 Brand : JH Stock

Price : $ 0.45~0.62

100 +: $0.45~0.62500 +: $0.45~0.621000 +: $0.45~0.62

Style：

M18
M28
M38
