Description

Single power supply:+5VDC
Input method:MP3 and WAV streams
Supply current:max 800mA
1 microphone, supporting recording encoding format:IMA ADPCM(mono)
Audio decoding formats supported by VS1003:MP3,MP3+V,WMA,WAV,MIDI,SP-MIDI
1.VS1003 supported audio decoding formats:MP3,MP3+V,WMA,WAV,MIDI,SP-MIDI
2.Separate analog,digital and IO power supply;serial Data and Control Interface(SPI)
3.1 headphone and audio output interface,with internal phase-locked loop clock multiplier;high-quality stereo digital-to-analog converters(DACs);16-bit tunable on-chip analog-to-digital converter ADC);high-quality stereo earbud driver(30 ohms)
4.1 microphone,for recording,support recording coding format:IMA ADPCM(mono)
5.1 line_in input interface,support two input modes;support MP3 and WAV streaming
6.Separate analog,digital and IO power supply with power indicator
7.The AMS-1117 LDO chip with 3.3V and 2.5V is on-board,providing a maximum current of 800mA
8.Single power supply:+5VDC,capacitor filtering
9.12.288Mhz crystal oscillator

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

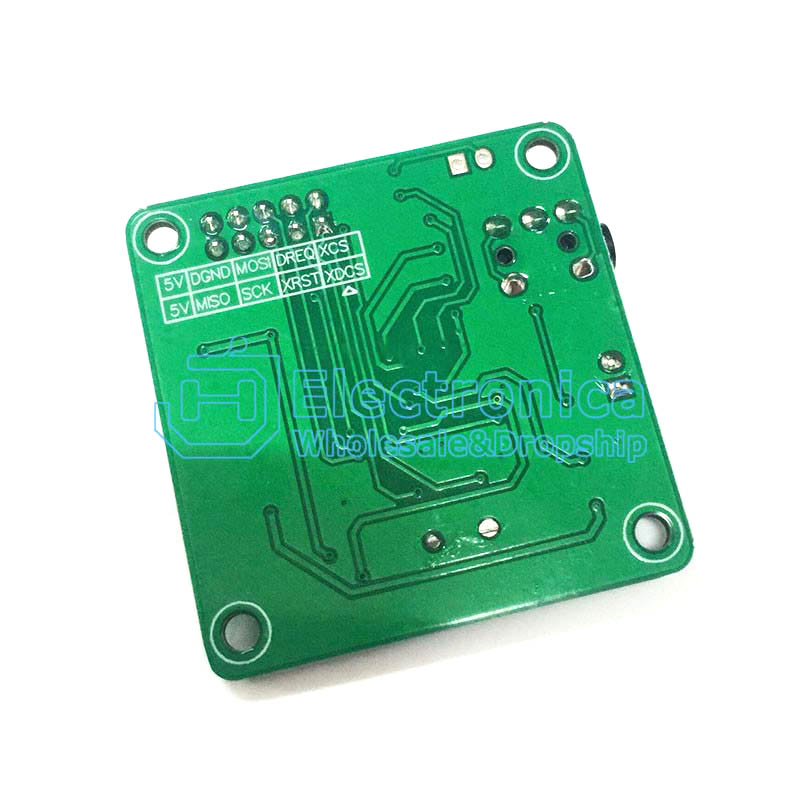

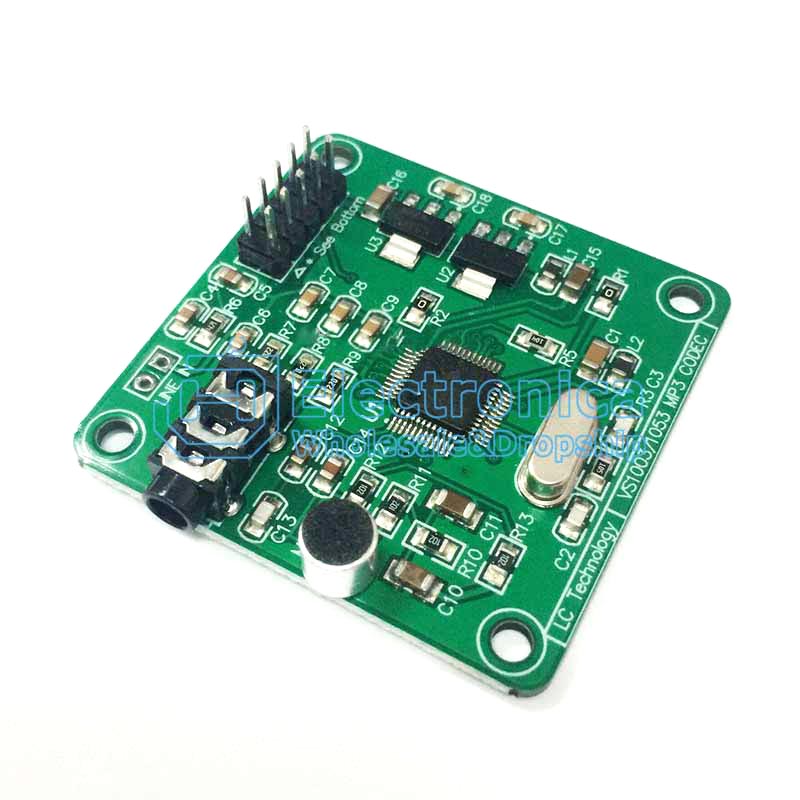

VS1003B MP3 Decoding Module

SKU : YXC601 Brand : JH Stock

Price : $ 4.01

100 +: $4.01500 +: $4.011000 +: $4.01
