Description
Wiring method: Crimping
Plug resistance: 1mm Ω
Wiring specifications: 2.5/4/6mm²
Test voltage: DC6000V
Temperature range: -40℃~+125℃
Shell material: PPO insulation material
Inner core material: copper
Working voltage: ≤DC1000V
Working current: ≤50A
Pollution level: CAT III/2
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

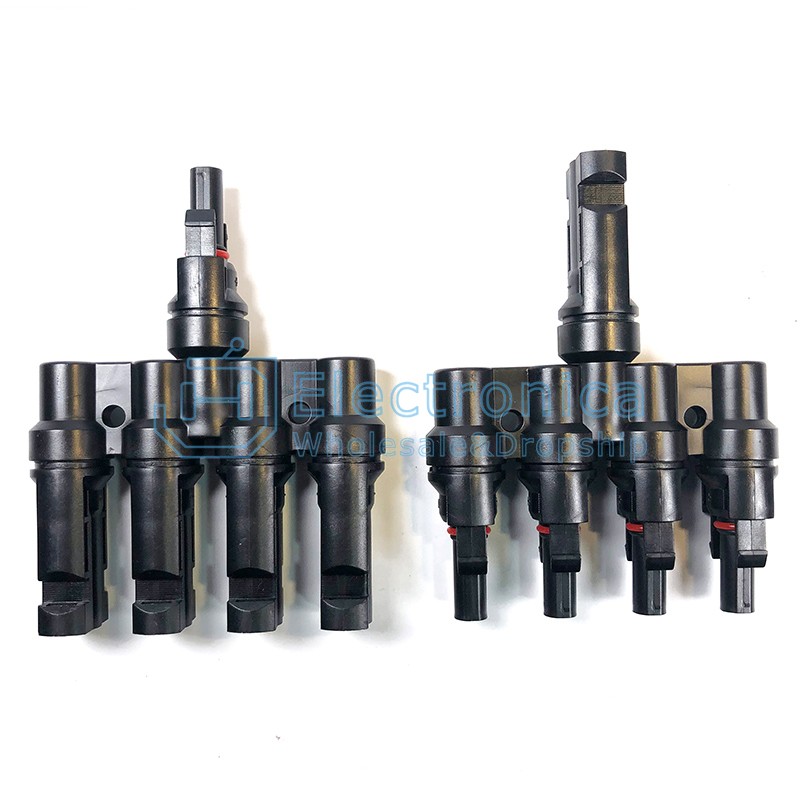

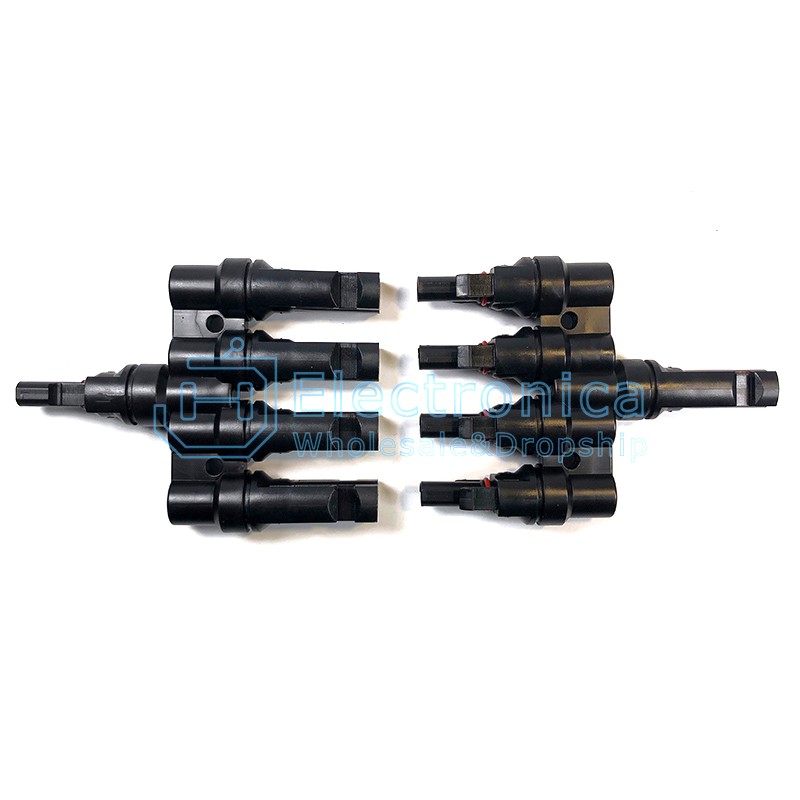

MC4.0 T-shaped 5-Way 50A Photovoltaic Connector
SKU : YXS1711 Brand :
