Description

Main Parameters:
Working voltage: DC3-12V (12V availabel for short-term use)
Working frequency: 315, 433.92MHz
Standby current: 0mA
Working current: 25-240mA
Transmission distance: 4000m (actual 10% -30%)
Output power: 26dBm (400mW)
Transmission rate:<10Kbps
Modulation method: OOK (amplitude modulation)
Working temperature: -10℃~+70℃
Size: 41*30*8mm

Performance Characteristics:
Stable frequency and performance of the sound meter
Wide working voltage range
Good product consistency and high cost-effectiveness
High transmission power and long transmission distance

Note:
The antenna has a significant impact on the receiving effect of the module. It is best to connect an antenna with a 1/4 wavelength, usually using a 50 ohm single core wire. The length of the antenna is approximately 23cm for 315M and 17cm for 433M
The position of the antenna also affects the receiving effect of the module. When installing, the antenna should be as straight as possible, away from the shielding body, high voltage, and interference sources
The adjustable capacitors on the PCB board have been glued and fixed, and cannot be changed, otherwise it will change the frequency or reduce the power

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

315/433mhz 4000m Remote Wireless Transceiver Module

SKU : YXS1695 Brand :

Price : $ 3.44~6.89

100 +: $3.44~6.89500 +: $3.44~6.891000 +: $3.44~6.89

Style：

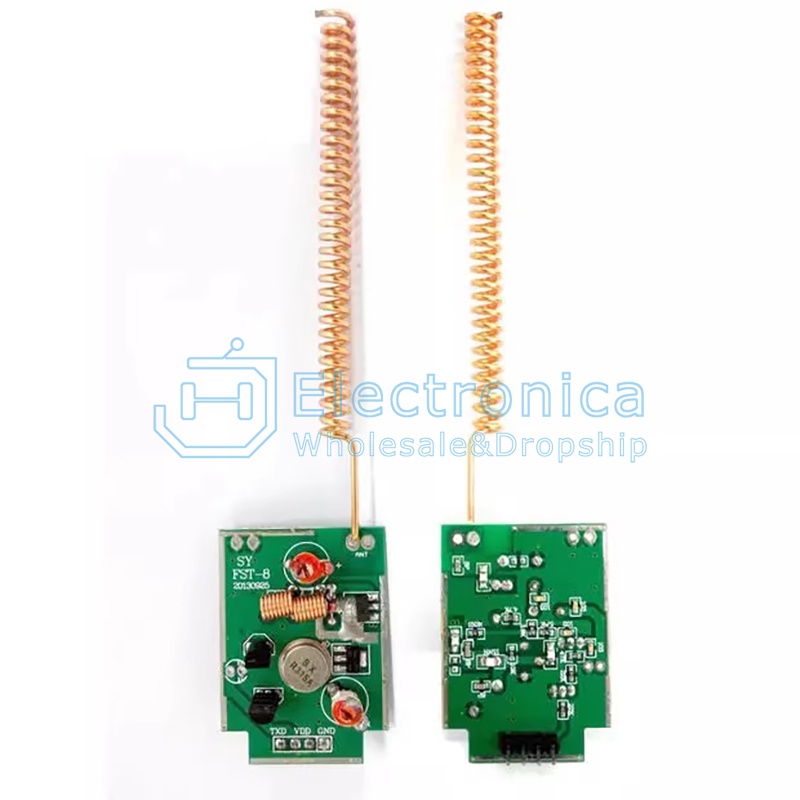

FST-8

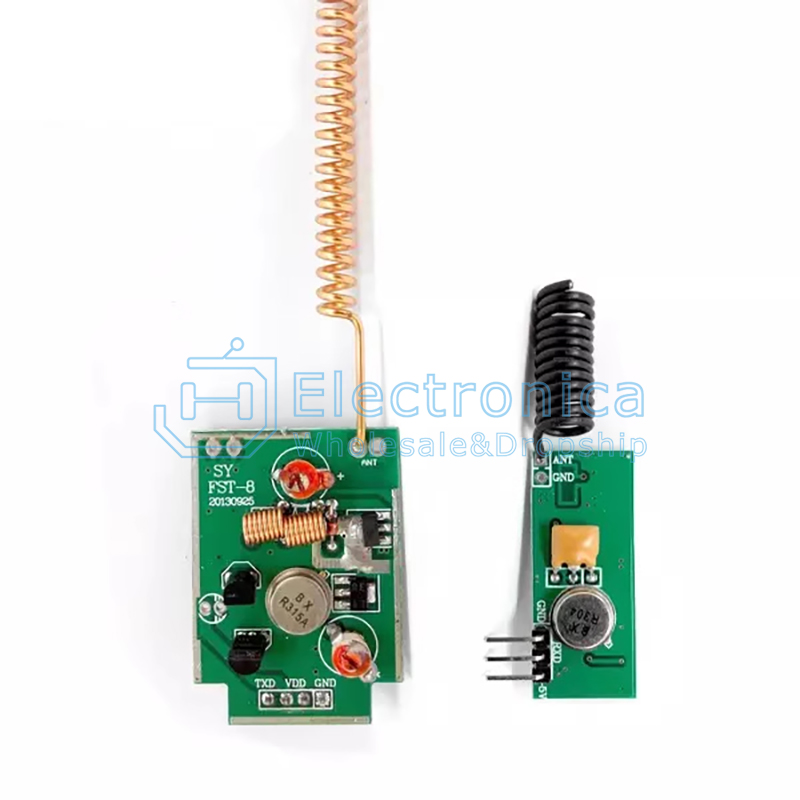

FST-8 with CWC-6

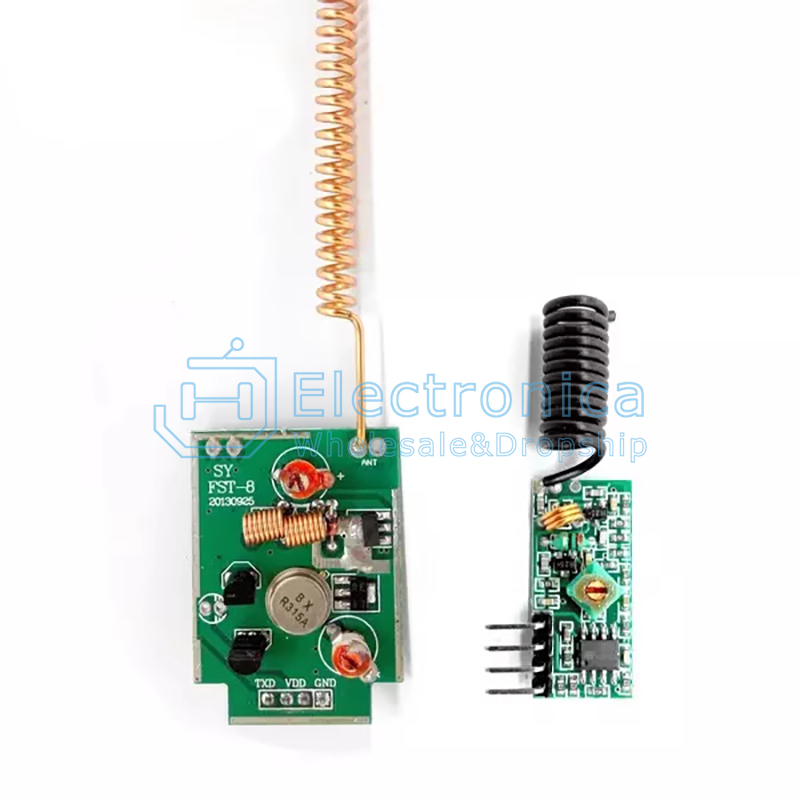

FST-8 with CZS-3

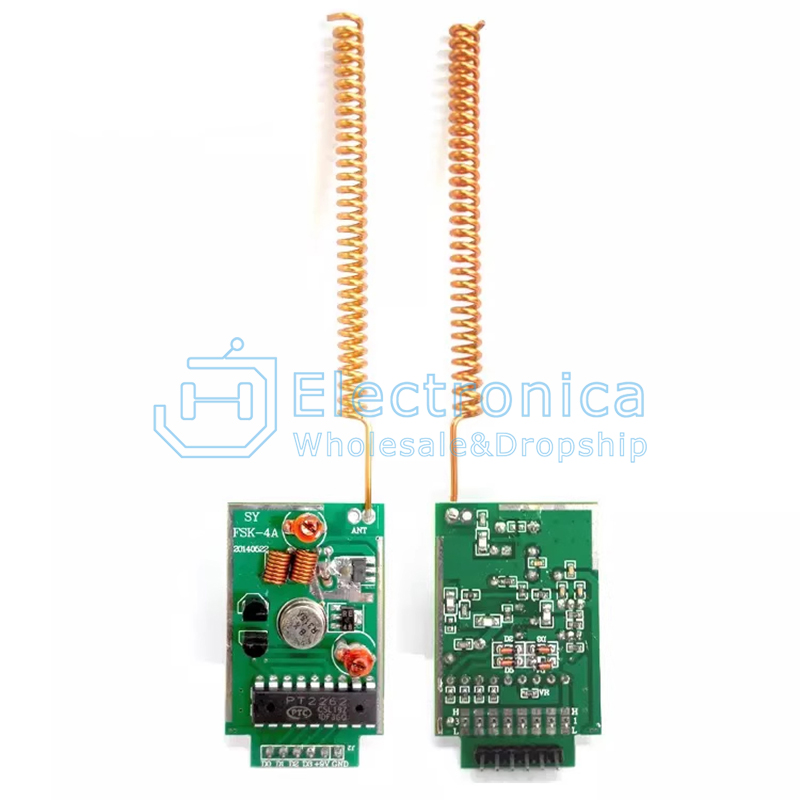

FSK-4A

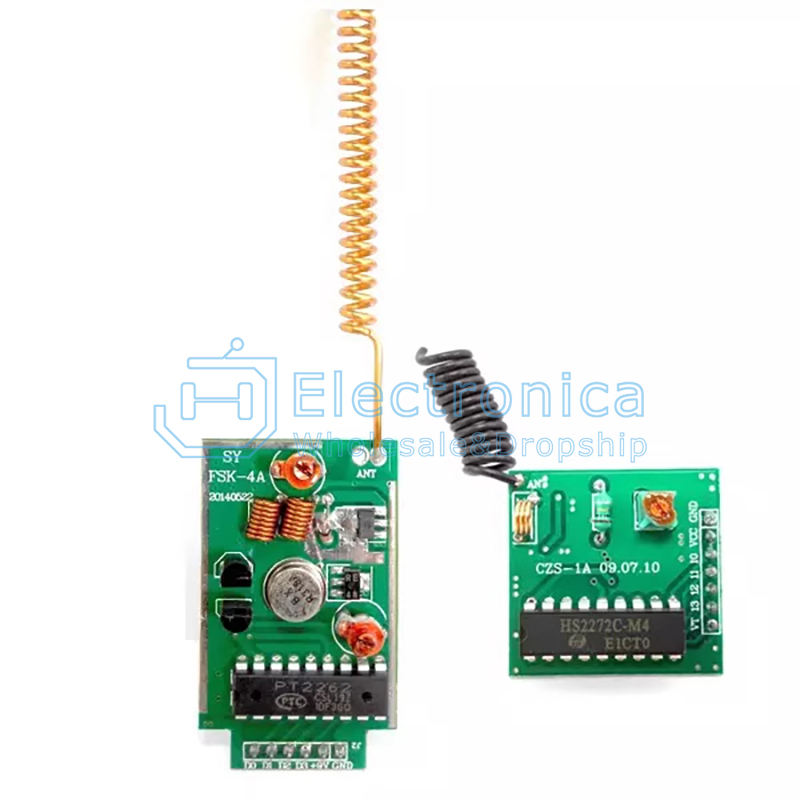

FSK-4A with CZS-1A

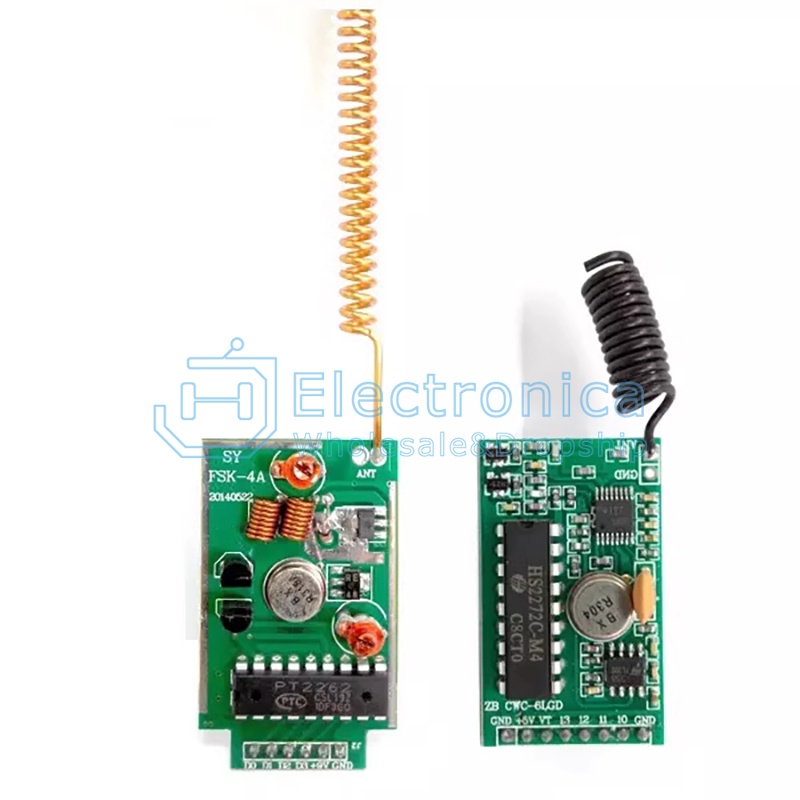

FSK-4A with CWC-6LGD

Quantity :

- +
