Description

Product Parameters:
Input voltage:13-32V
Output voltage:Multiway
Output current:3A(Max)
Output power:9.9W/12W/36W

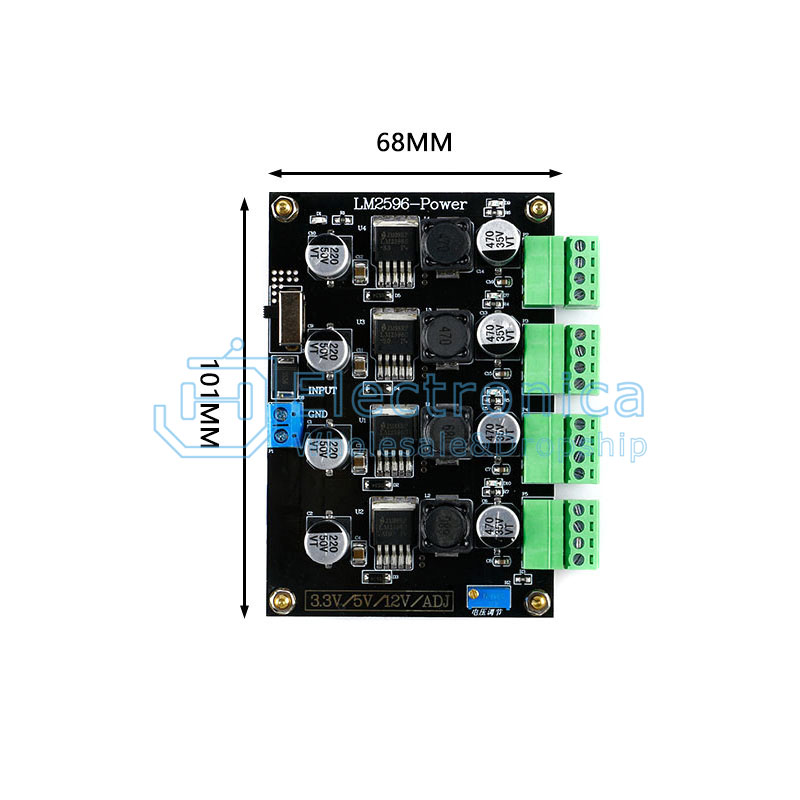

Size:101mm*68mm*12mm

Product Introduction:

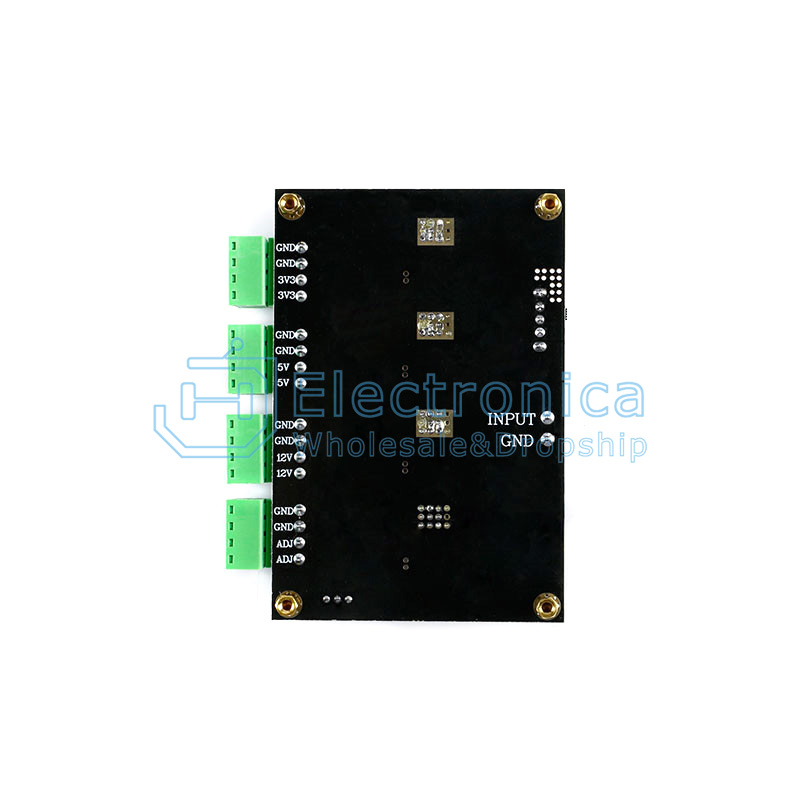

LM2596 is a switching voltage regulator for buck power management single-chip integrated circuits, capable of outputting a driving current of 3A, while possessing excellent linearity and load regulation characteristics. This module integrates four LM2596 chips and can simultaneously output four sets of power supplies: 3.3V, 5V, 12V, and ADJ. The module is strictly arranged and wired according to the design specifications of the power circuit; The material is generous, using SMD aluminum electrolytic capacitors and high Q value high-power inductors to ensure stable output voltage. The windowing treatment on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip. Suitable for power requirements in student learning competitions and company or individual project development

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

LM2596 Multi-switching Power Supply Module

SKU : YXS1043 Brand :

Price : $ 2.97

100 +: $2.97500 +: $2.971000 +: $2.97

Quantity :

- +

ADD TO CART
