Description

Product Parameters:
Supply voltage:5V
Current:50mA
Baud rate:1200~921600bps
Transmission speed:12Mbps
Working temperature:-40~85℃
Size:63*43*11.24mm

Product Features
Carefully optimize the circuit, with a communication speed of up to 12Mps
TTL compatible with 5V level
On board DC5V power interface, 500MA current output, improving load capacity.
On board EEROM, which can be configured as JRAG/SPI or other interface forms through FT PROG software
All availabel IO is exported.
Each serial port is equipped with an independent receiving and sending indicator LED, making it easy to observe the receiving and sending status of the serial port
Sinking gold PCB, lead-free process, with M3 mounting screw holes
Four serial ports connected simultaneously, allowing for simultaneous observation of data

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

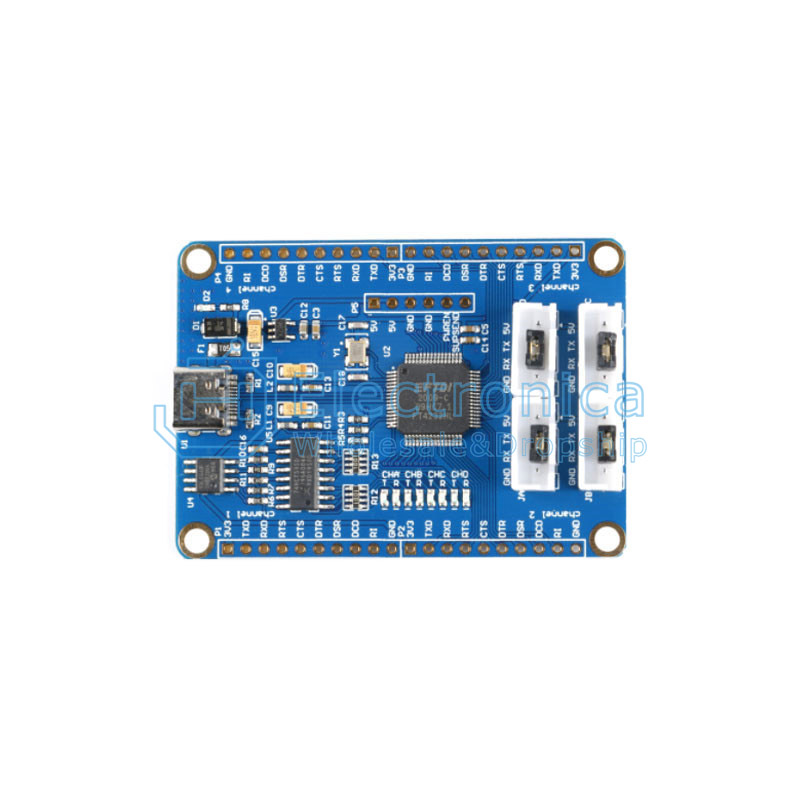

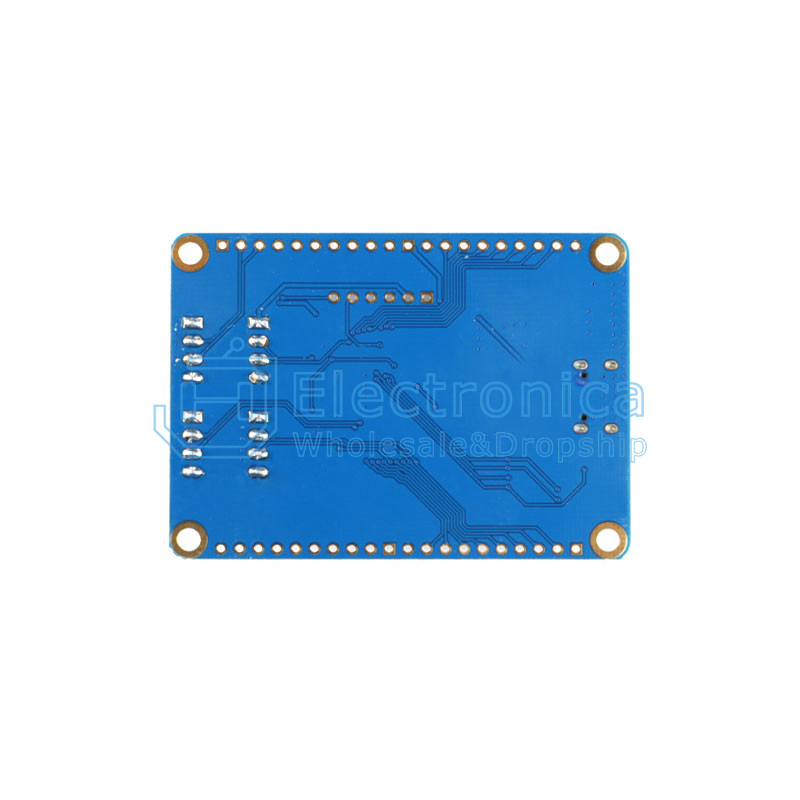

FT4232HL USB to 4-Channels TTL Serial Module

SKU : YXS1075 Brand :

Price : $ 11.78

100 +: $11.78500 +: $11.781000 +: $11.78
