Description

Using the original ft232bl industrial chip, the external eepron (93C46) is more stable
Support for windows 10
Support three power supply modes: 5V external power supply; 3.3V external power supply; external power supply (3.3v-5v required)
With three LEDs: TXD led, RXD led, power LED

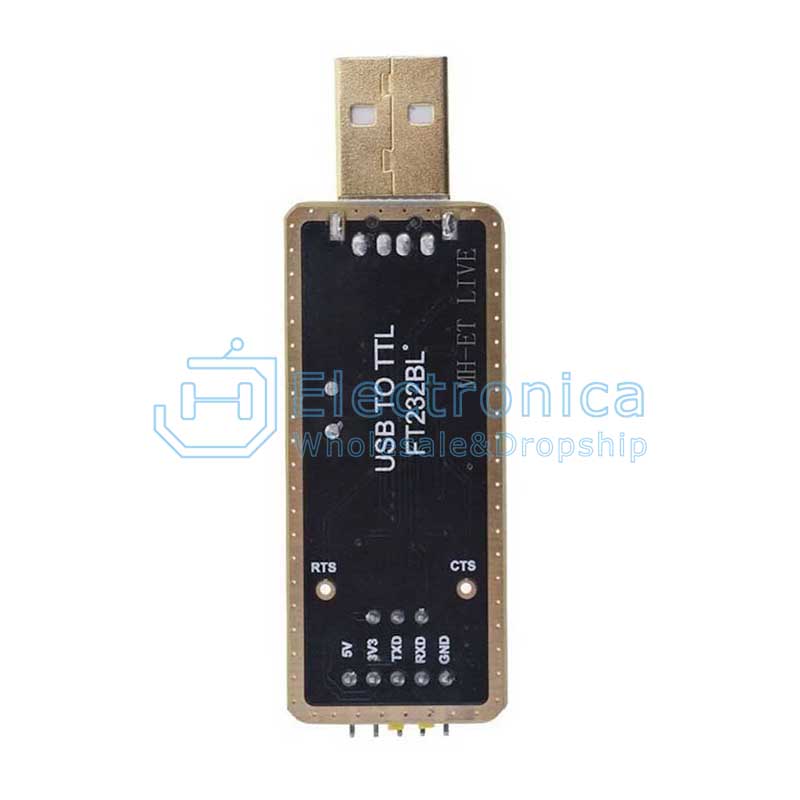

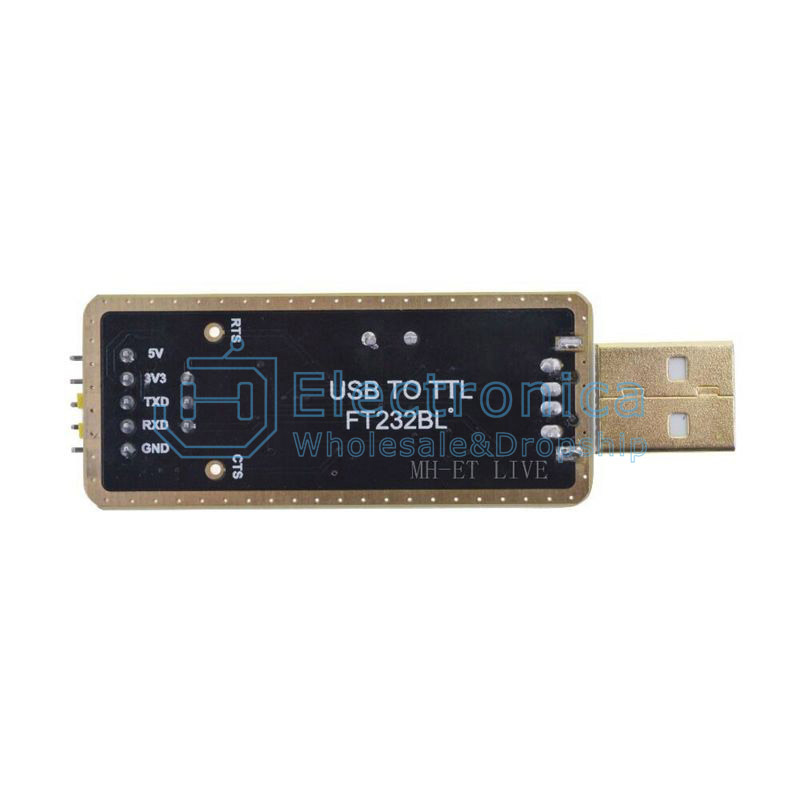

GND, RXD, TXD, 3v3, 5V: lead out with bending needle
Other function pin: Reserve pads CTS, RTs
With 500mA self recovery fuse, reverse connection does not burn
Application cases:
Upgrade RS-232 traditional device to USB
USB to RS-232 serial adapter
Instructions: (take access to MCU as an example)
GND: connected to GND
RXD: Connect MCU.TX (signal flow direction: MCU.TX >> FT232 >> PC.RX )
TXD: Connect MCU.RX (signal flow direction: MCU.RX << FT232 << PC.TX )
3v3 / 5V: output 3.3V or 5V (the module is powered by USB, the jumper cap must be jumped to 3.3V or 5V)
RTS: Connect MCU.CTS (signal flow direction: MCU.CTS << FT232 << PC.RTS )
CTS: Connect MCU.RTS (signal flow direction: MCU.RTS >> FT232 >> PC.CTS )

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

FT232BL USB to TTL Serial Download Module

SKU : YXA095 Brand : JH Stock

Price : $ 1.05

100 +: $1.05500 +: $1.051000 +: $1.05
