Description
Voltage Accuracy:0.2%±0.003V
Current Range:0.1-40A
Current Accuracy:0.2%±0.01A
Discharge Mode:CC Constant Current Discharge/CP Constant Power
Discharge Termination:Time/Voltage Below Set Lower Limit/Manual
Discharge Power:Maximum 200W
Charge Mode:CV Constant Current and Constant Voltage Charging
Charging Terminated:Constant Voltage Current Below the Set Lower Limit/Manual
Capacity Measurement:within 10Ah,Resolution 0.001Ah,10Ah-100Ah,Resolution 0.01Ah,Above 100Ah, Resolution 0.1Ah
Heat Dissipation Method:Fan Active Cooling
Equipment Power Supply:AC 200-240V(Customizable 110V Power Supply)
Package Weight:5.4kg
Charging:within 5V,Current Ranging from 0.1A-40A
Discharge:within 5V,Current Ranging from 0.1A-40A

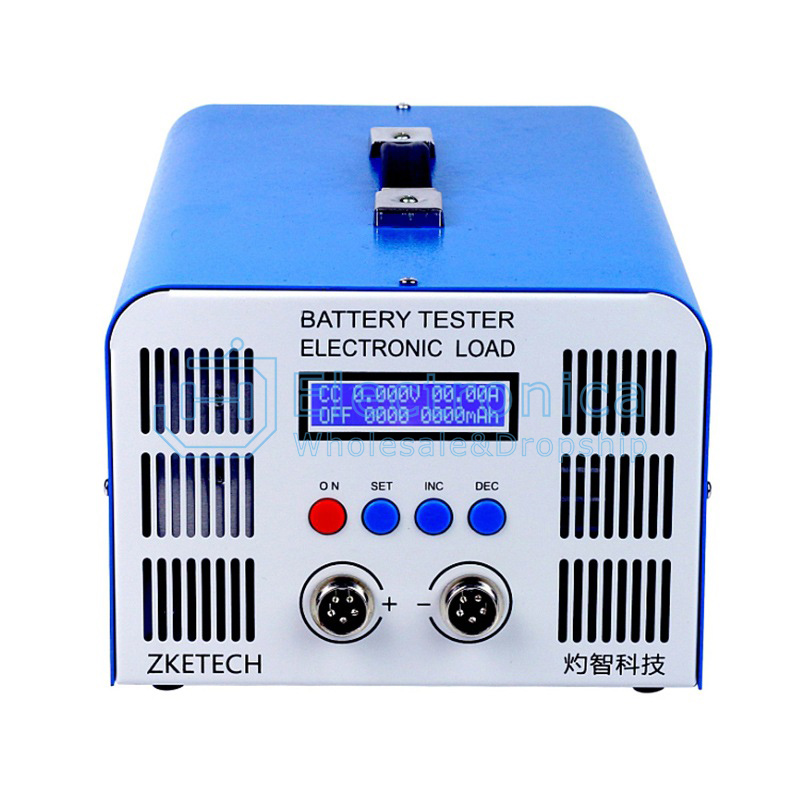

EBC-A40L High Current Lithium Battery Capacity Tester
SKU : YXS2211 Brand :
