Description

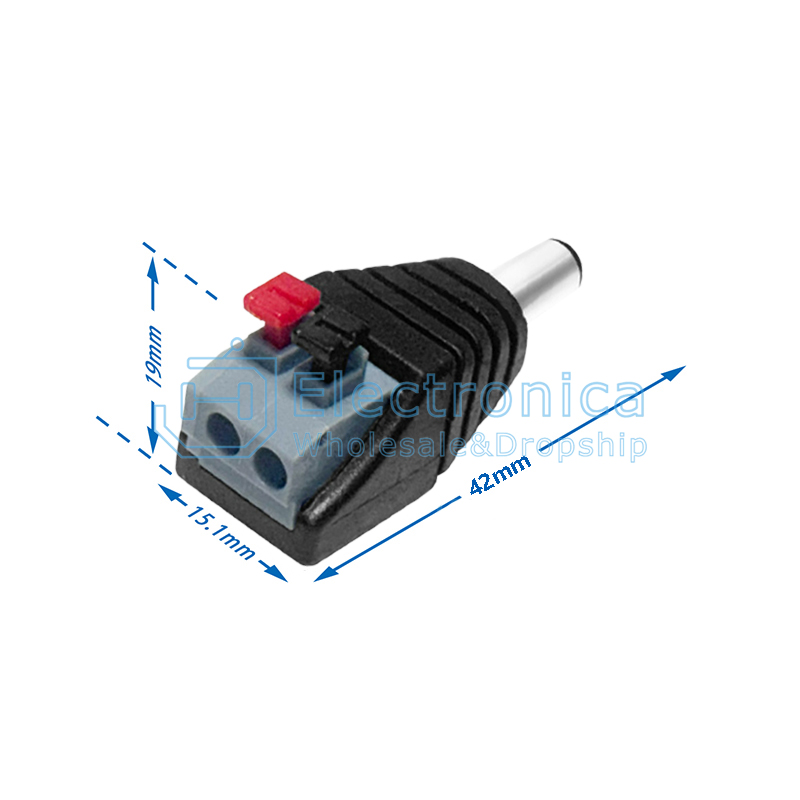

Male:15.1*42*19mm

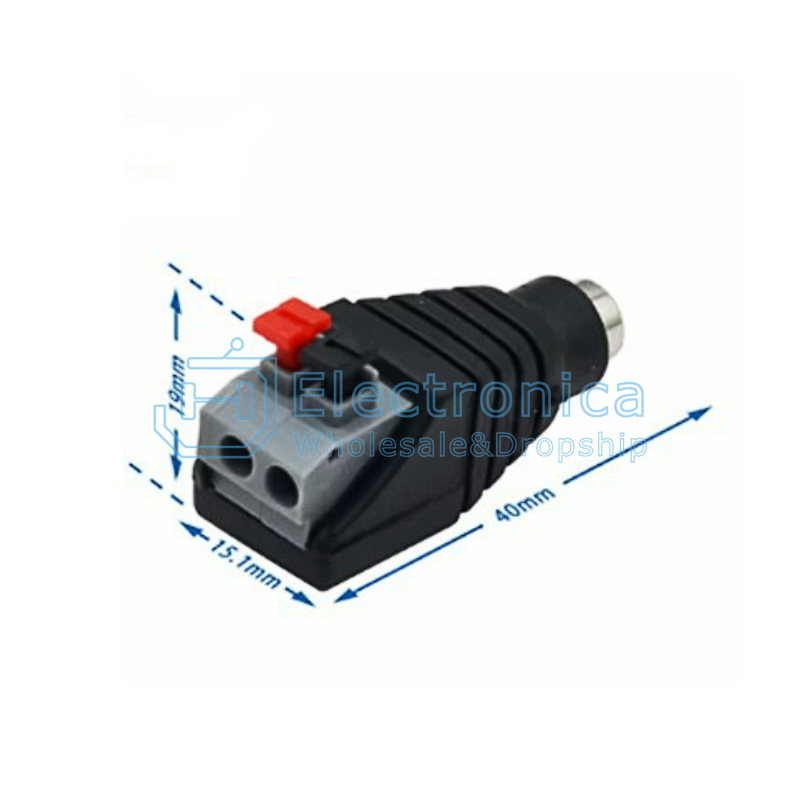

Female:15.1*40*19mm
Weight:
Male:7.5g
Female:8.2g
Joint Material:PVC Black+PC Red-gray Terminal(Flame-retardant New Material)
Socket Specification:5.5*2.1mm
Socket Type:Male/Female Optional
Transmission Voltage:3V-24V
Transmission Current:<=8A-12V/4A-24V
Load Power:<=100W
Port Feature:High-temperature Resistant
Fixing Method:Direct Insertion
Usage Environment:Indoor
Socket Life:Plug and Unplug<=6,000 Times
Wiring Method:Press the Terminal for Crimping(Quick Connection without Loosening)
Incoming Line Size:<=1 Square(16AWG)
Operating Temperature:-35℃~70℃
Factory Requirements:Qualified Conduction and Withstand Voltage QC Test
Quality Grade:Class A
Applicable Equipment:Monitoring Equipment/LED Equipment/Heat Dissipation Equipment and Other Electronic Instruments
5.5*2.1mm Solder-free Press-type DC Power Socket
SKU : YXS2176 Brand :
Style：

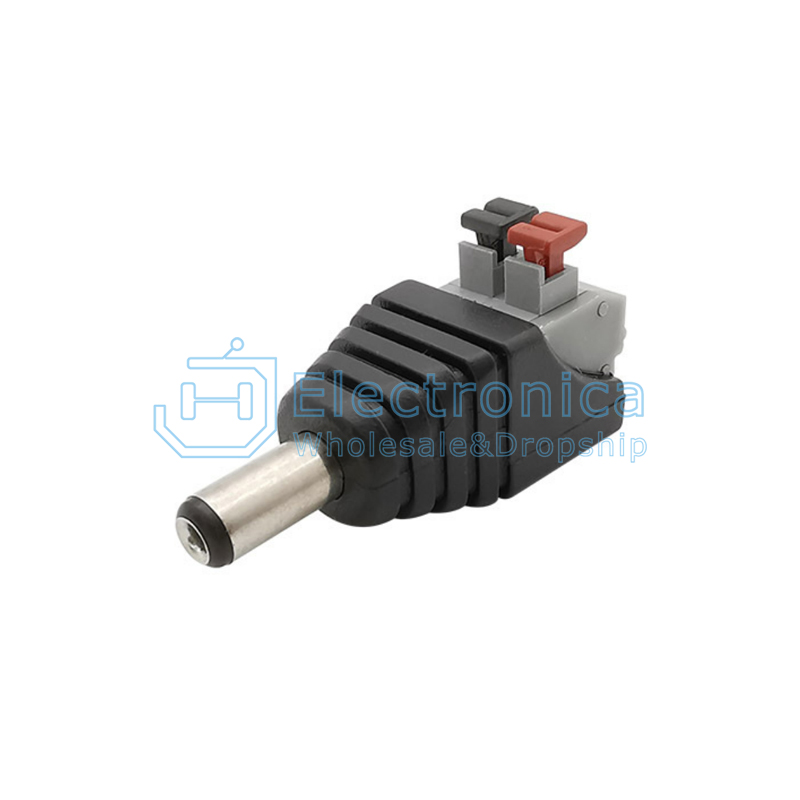

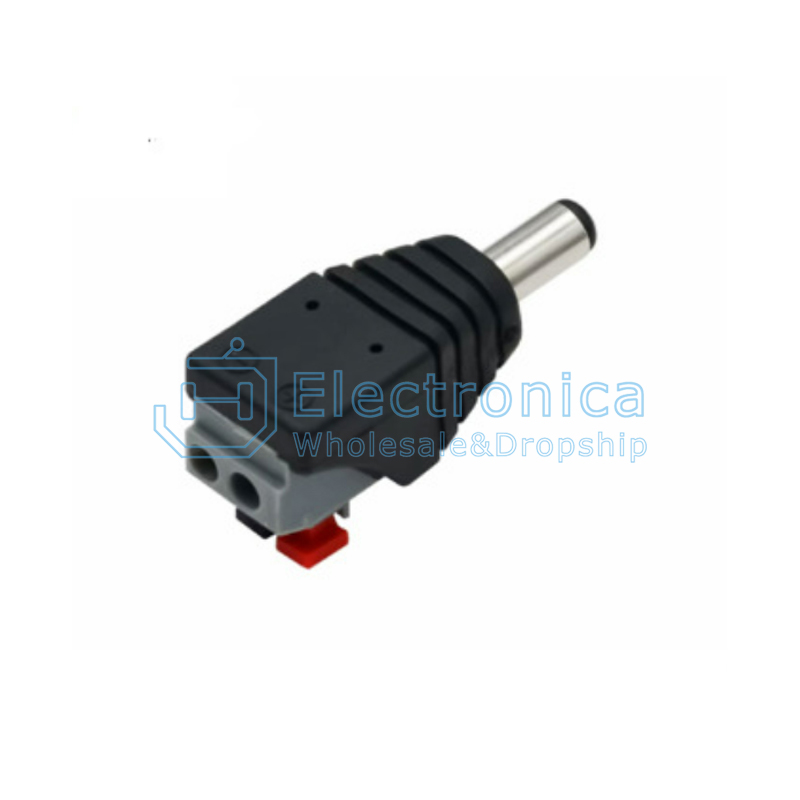

Male

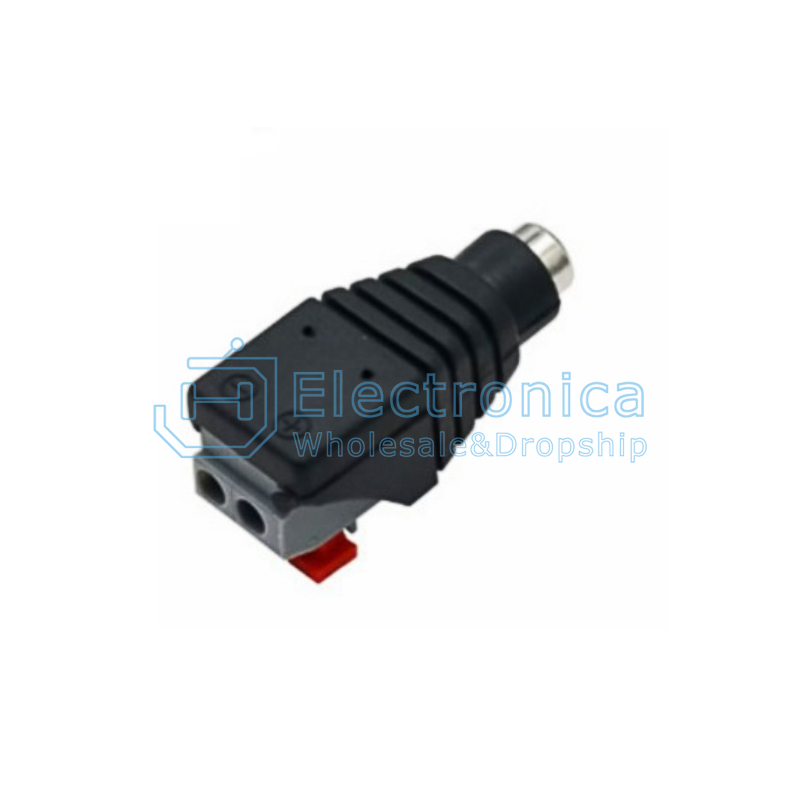

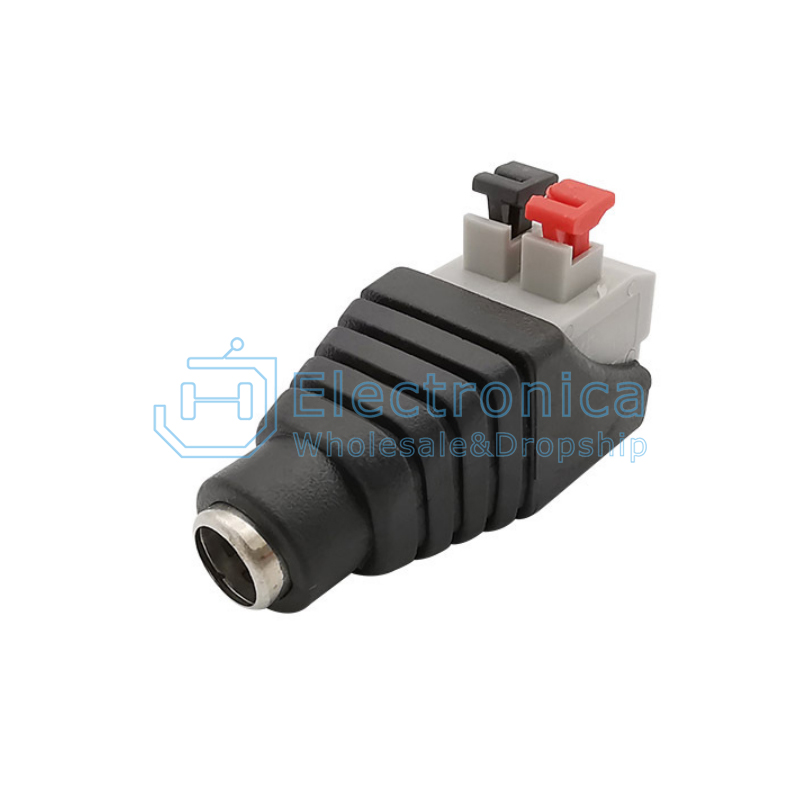

Female
