Description

Weight:65g

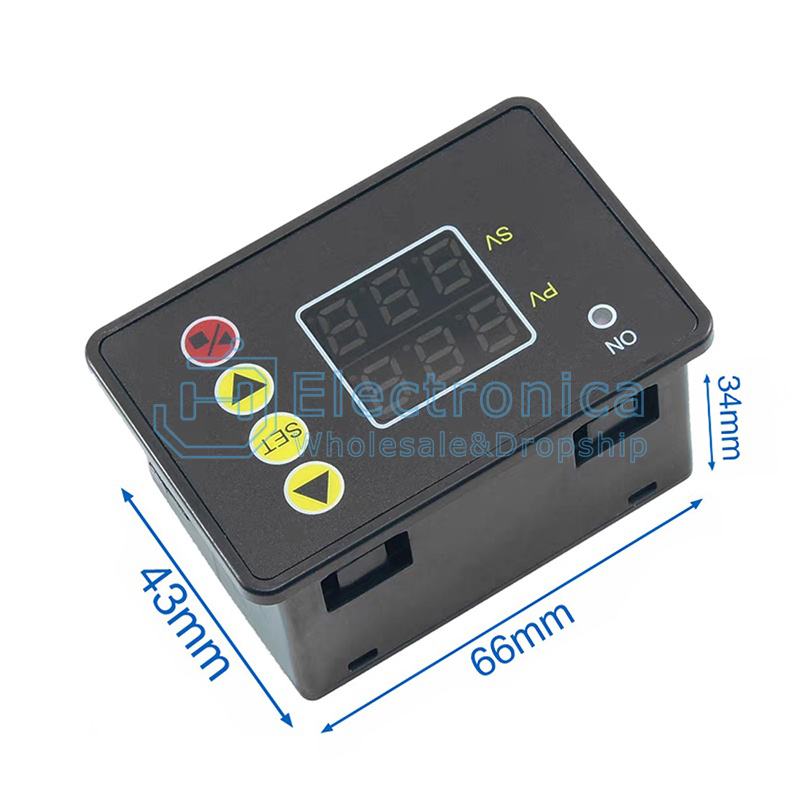

Size:67*45*34mm
Working Voltage:DC 12V/DC 24V/AC110~220V
Control Circuit Voltage:DC 12V/DC 24V/AC110~220V
Relay Carrying Power:240W/480W/10A(Maximum)
Working Power Consumption:Less Than 1W
Relay Service Life:100000 Times Opening and Closing Cycles
Crystal Oscillator Timing Error:+3 Seconds(within 24h)
Installation Method:Embedded Installation
Installation Aperture:63*42mm
Relay Type:Normally Open Relay(Control Circuit Loses Power When Power is Cut Off)
Recommended Power for Control Circuit:not Greater Than Relay Carrying Power*80%

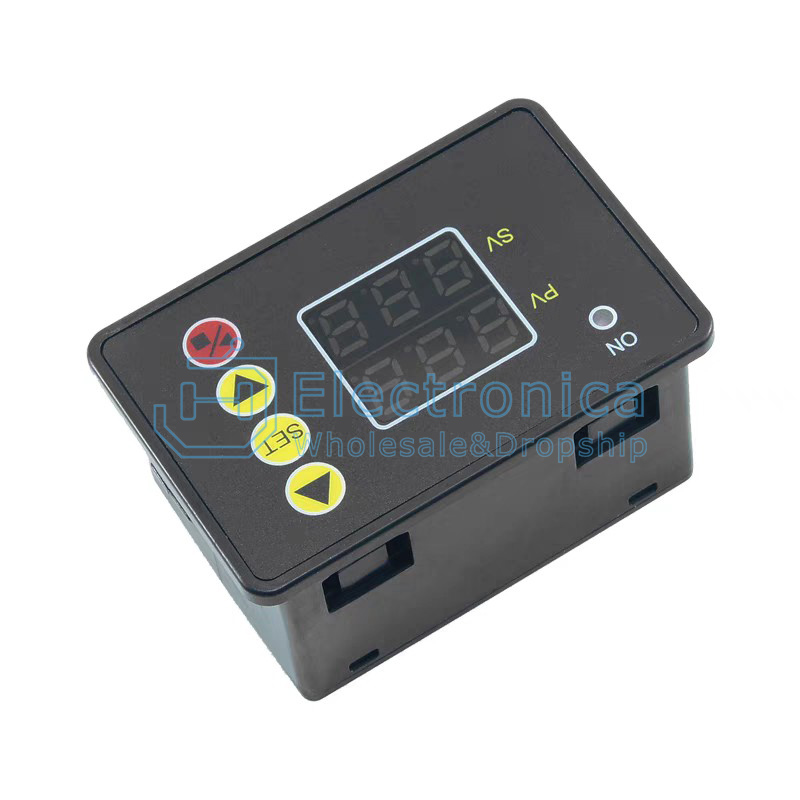

T2310 Delay Time Relay Module

SKU : YXS2192 Brand :

Price : $ 2.90~3.07

100 +: $2.90~3.07500 +: $2.90~3.071000 +: $2.90~3.07

Style：

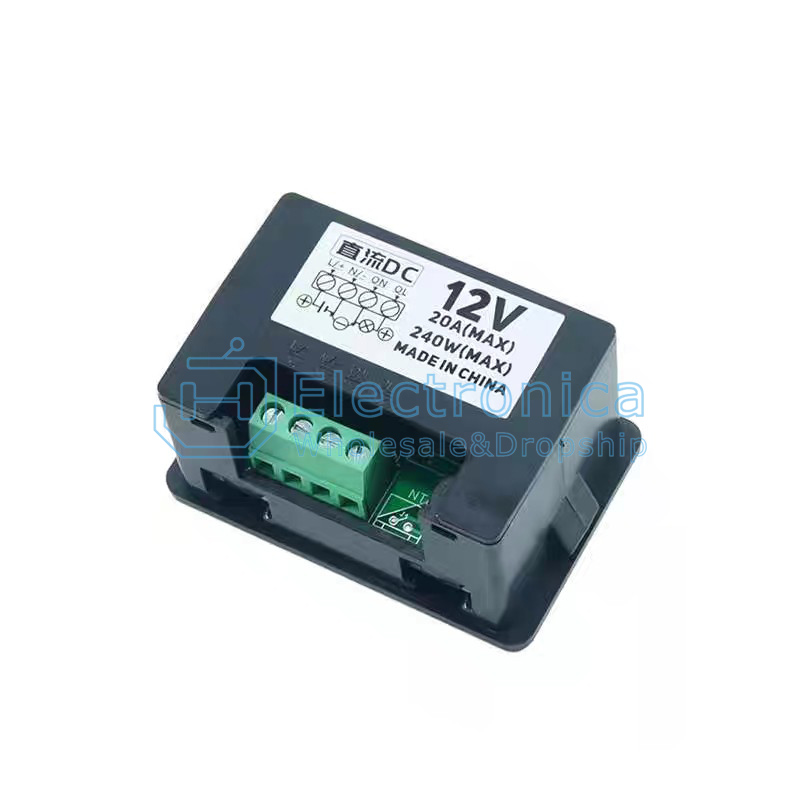

DC 12V-240W

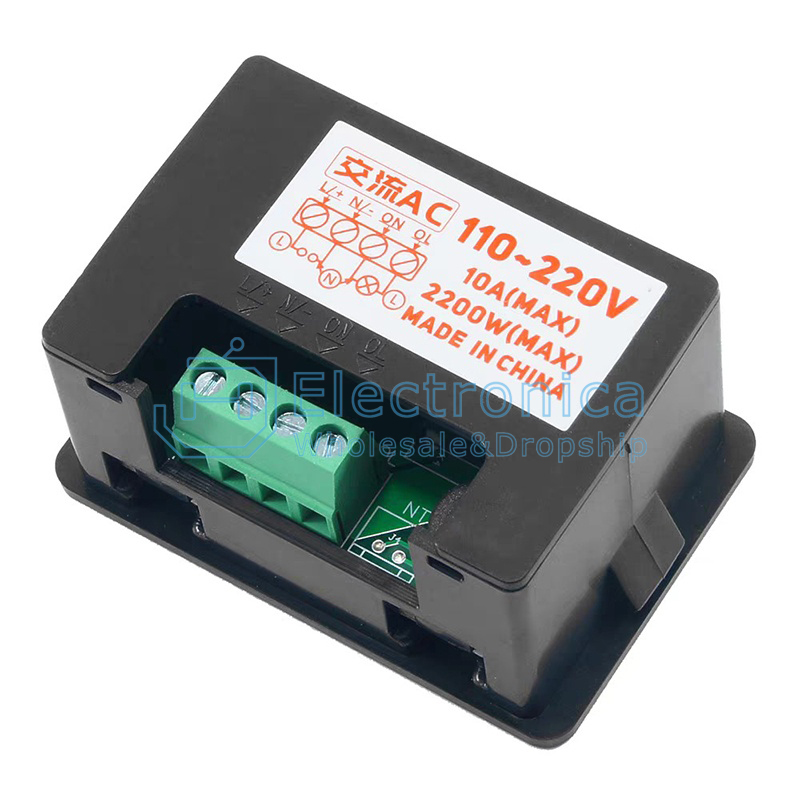

AC 110-220V 2200W
DC 24V

Quantity :

- +

ADD TO CART
