Description

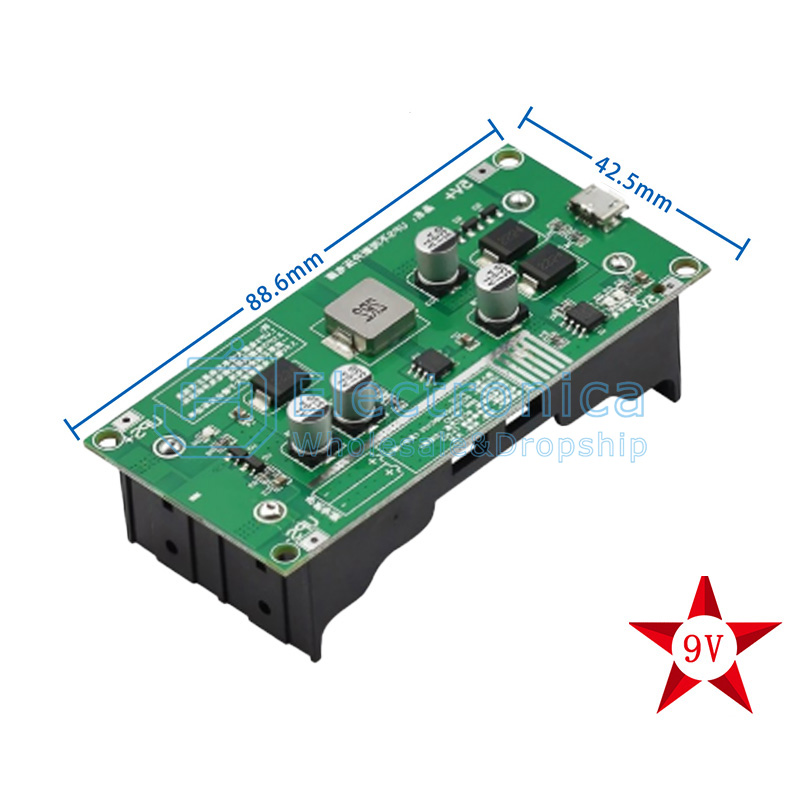

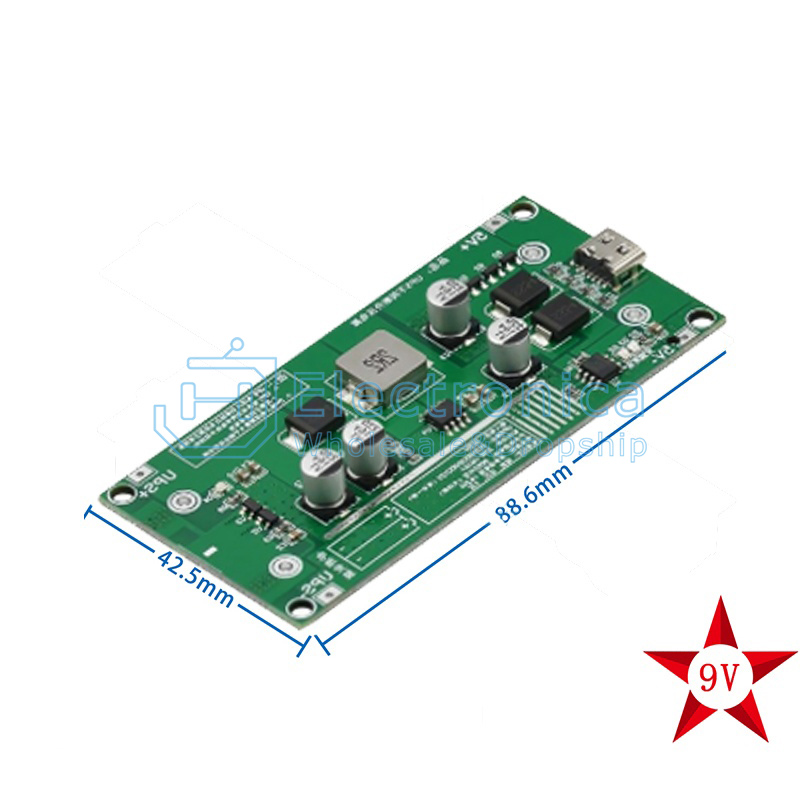

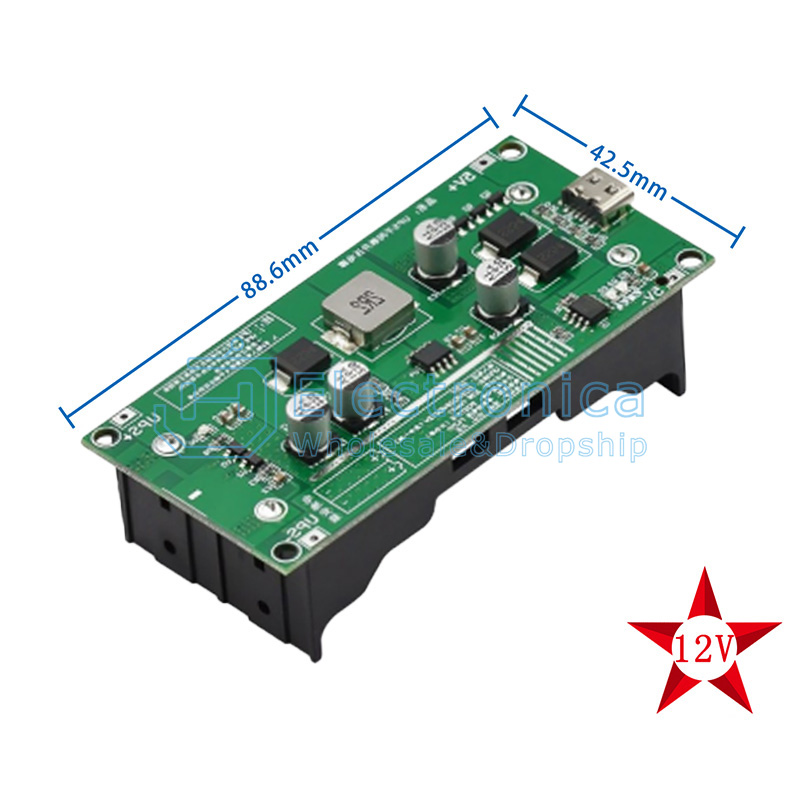

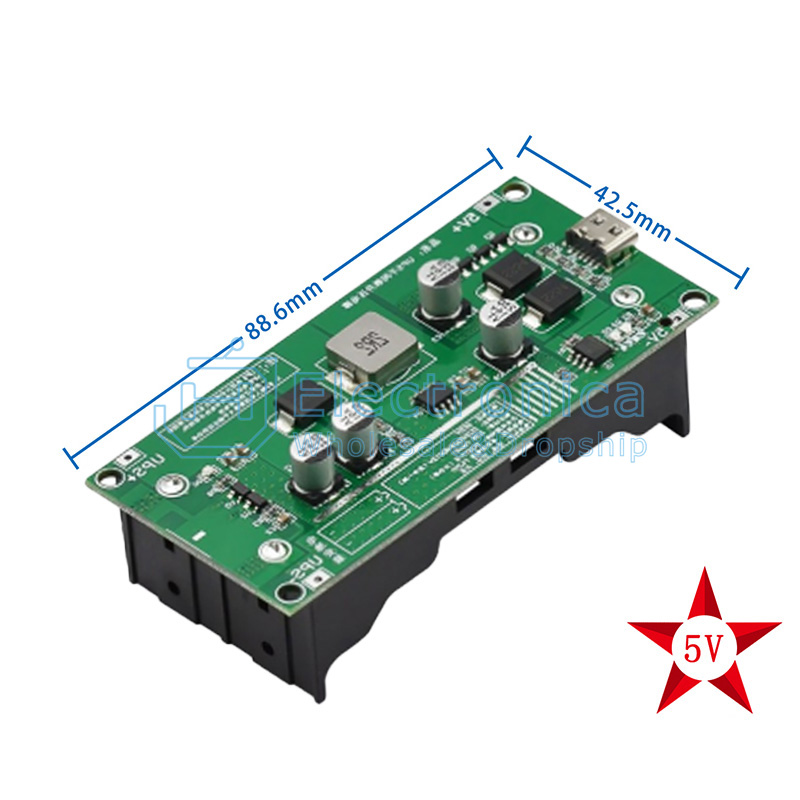

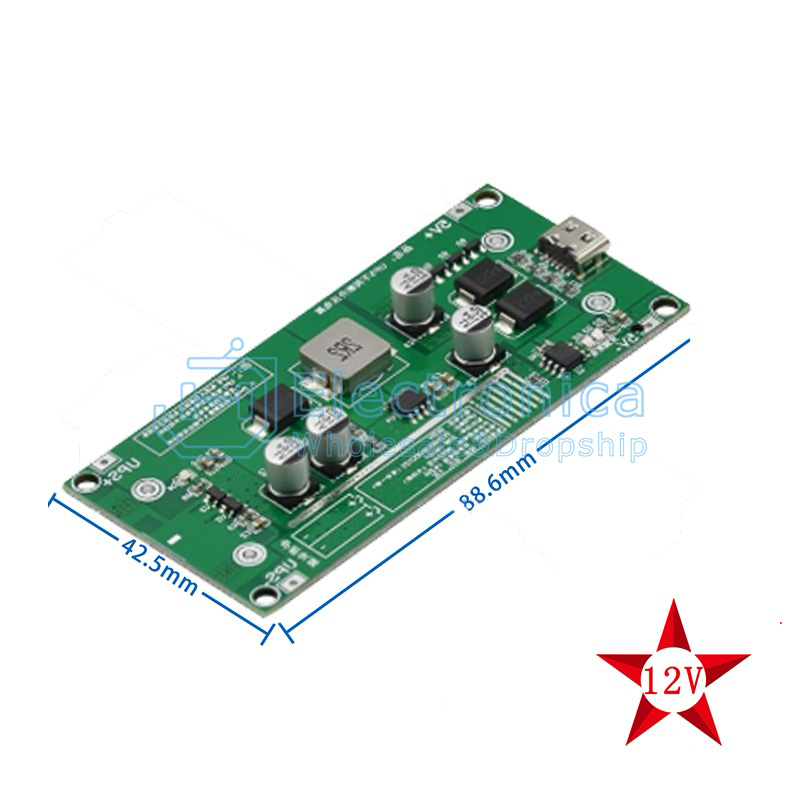

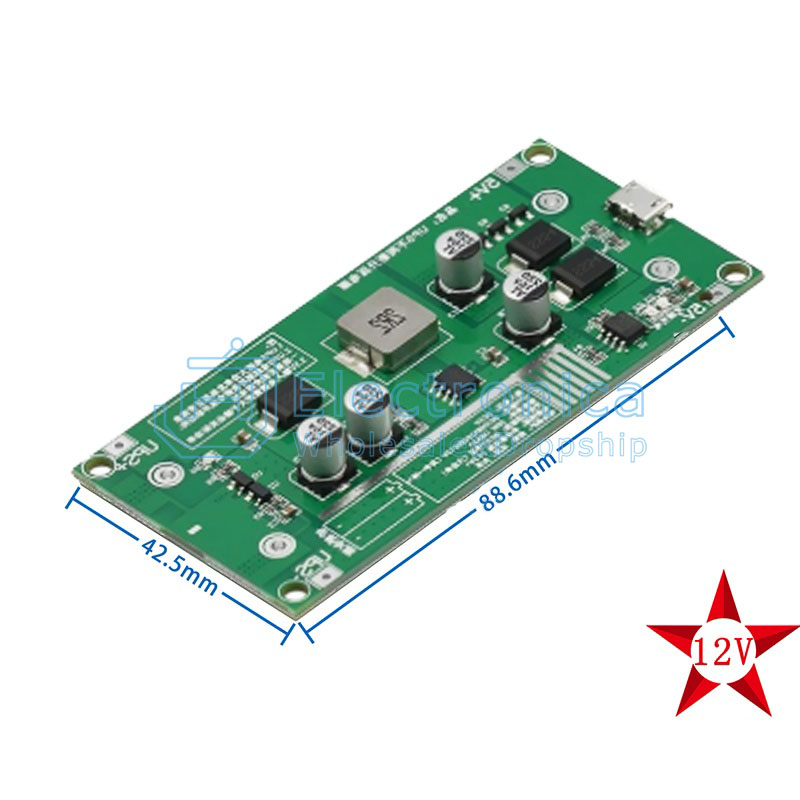

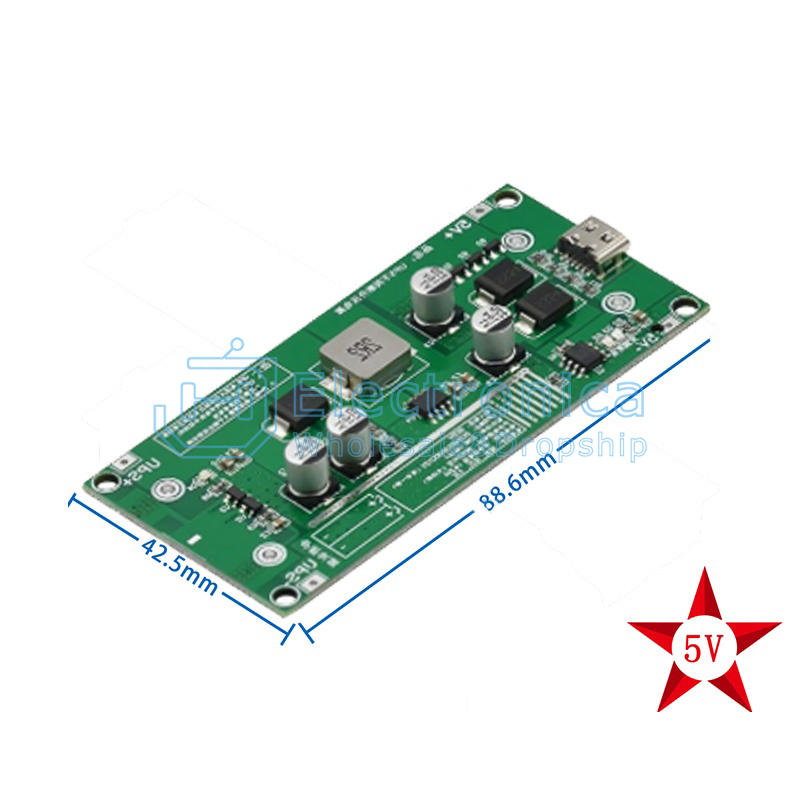

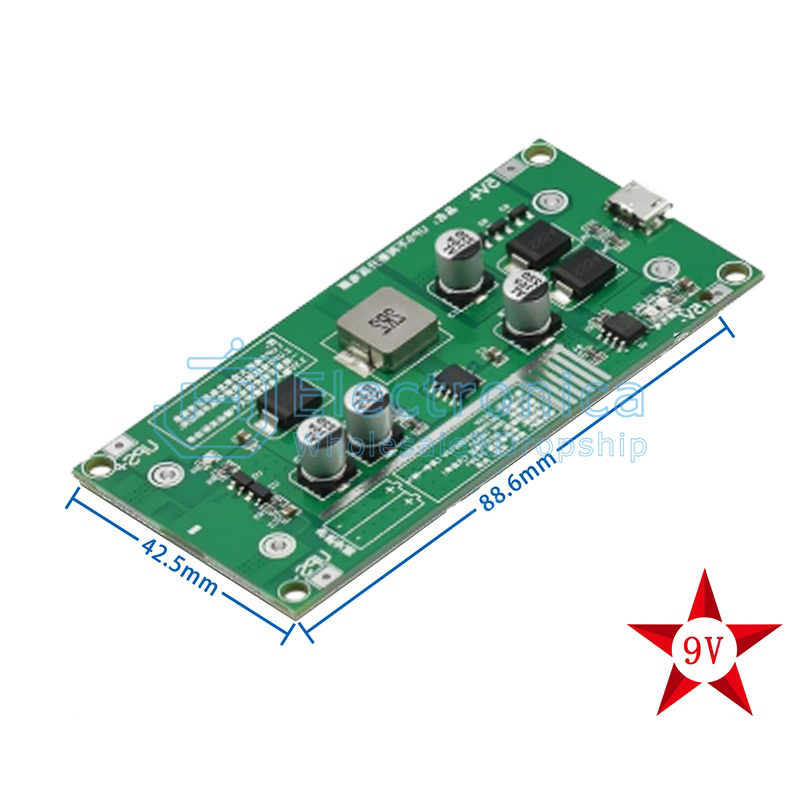

Size:88.6*42.5mm
Weight:
Only Module:18g

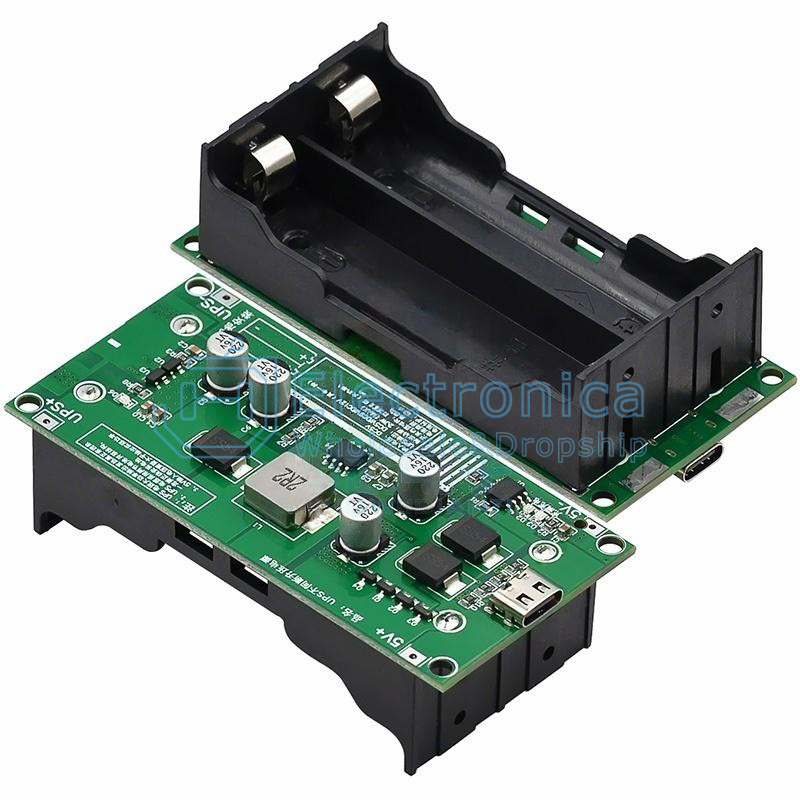

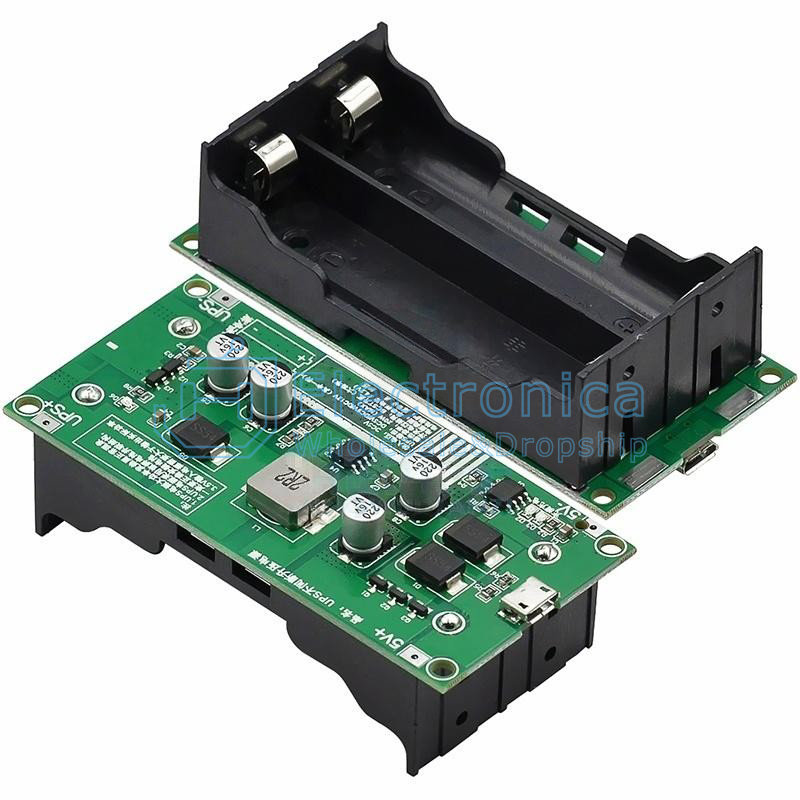

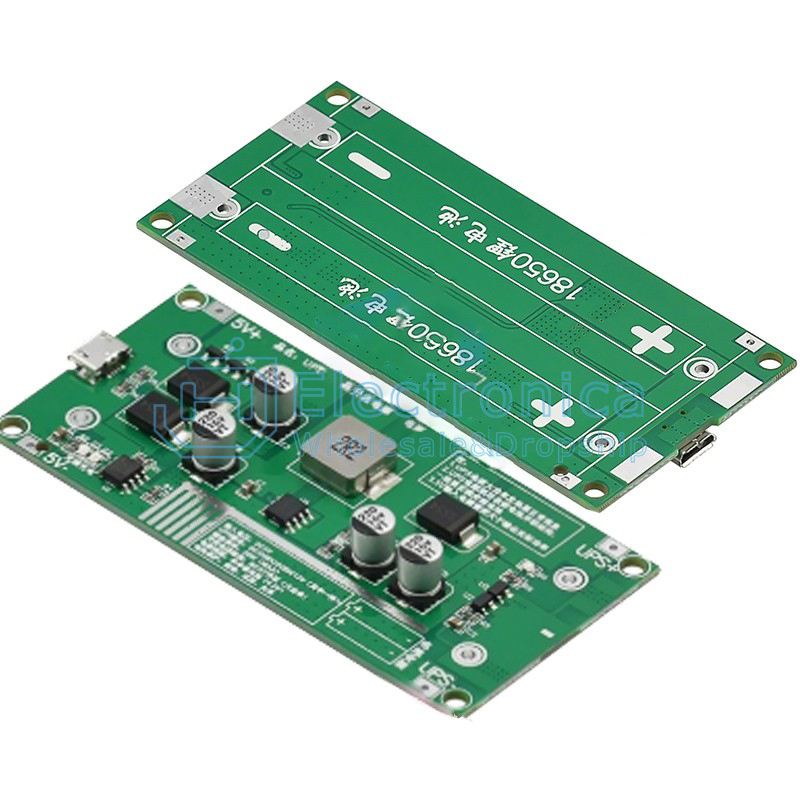

Module with Patch Battery Case:33g
Function Description:
1.UPS Function:When the Power Supply is Powered,It Directly Supplies Power to the Load Through the Boost Circuit and Charges the Lithium Battery at the Same Time.Once the Power Supply is Cut Off,the Battery Circuit is Automatically Activated to Supply Power to the Load Through the Boost Circuit

2.Boost Circuit:Maximum Power Up to 20W,Rated Power Up to 15W,BOST Boost Circuit,Built-in 12A High-current MOS,Efficiency Up to 96%,Module Static Power Consumption 25mA,Optional 5V/9V/12V Output.(It is Recommended That the Load is <15W Under Normal Conditions,5V Output:Current 3A,9V Output:Current 1.6A,12V Output:Current 1.2A)

3.Lithium Battery Protection:Overcharge,Over Discharge,Over Temperature,Over Current Protection(If It Enters the Protection State and Does Not Exit After a Short Circuit By Mistake,It Will Automatically Wake Up and Restore the Output When Connected to 5V Charging)
