Description

Model:MP-D60S12
Output voltage:12V
Rated current:5A
Workting current range:0-5A
Efficiency:≥86%
Voltage Ripple(Max):120mVp-p%
Output accuracy:±3%
Rated power:60W
Linear adjustment rate:±1%
Load adjustment rate:±3%
Start,rise,hold time:1S,10ms,5ms
Input voltage range:36~75VAC
Input frequency:NA
Standby power consumption:≤0.2W
Power factor:NA
Surge current(max):20A
Leakage current(max):0.7mA
Input undervoltage protection:28V-34V
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH
Size:101.6*50.8*27.5mm
Weight:115g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

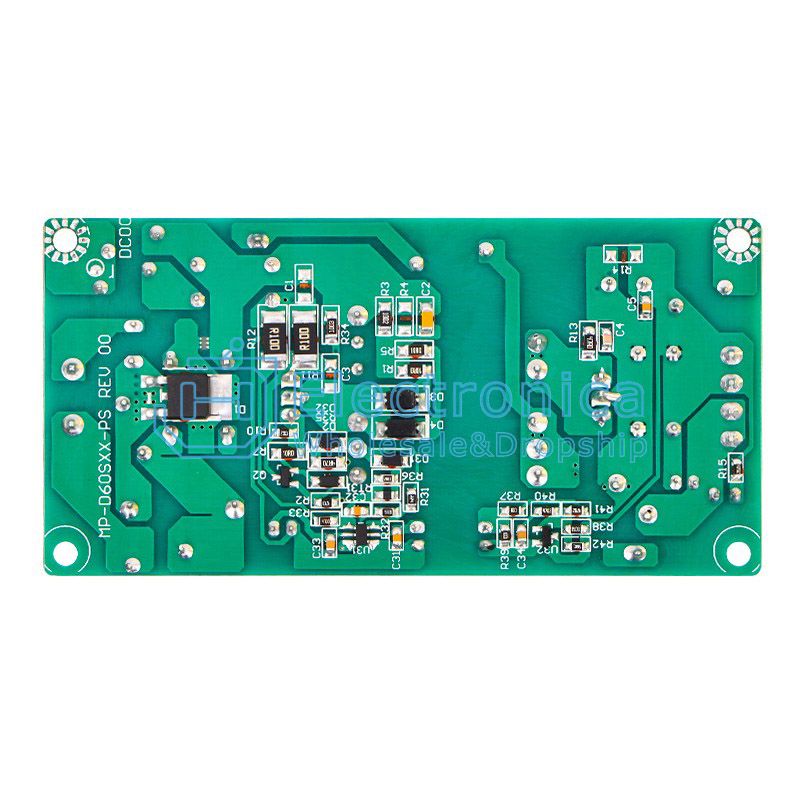

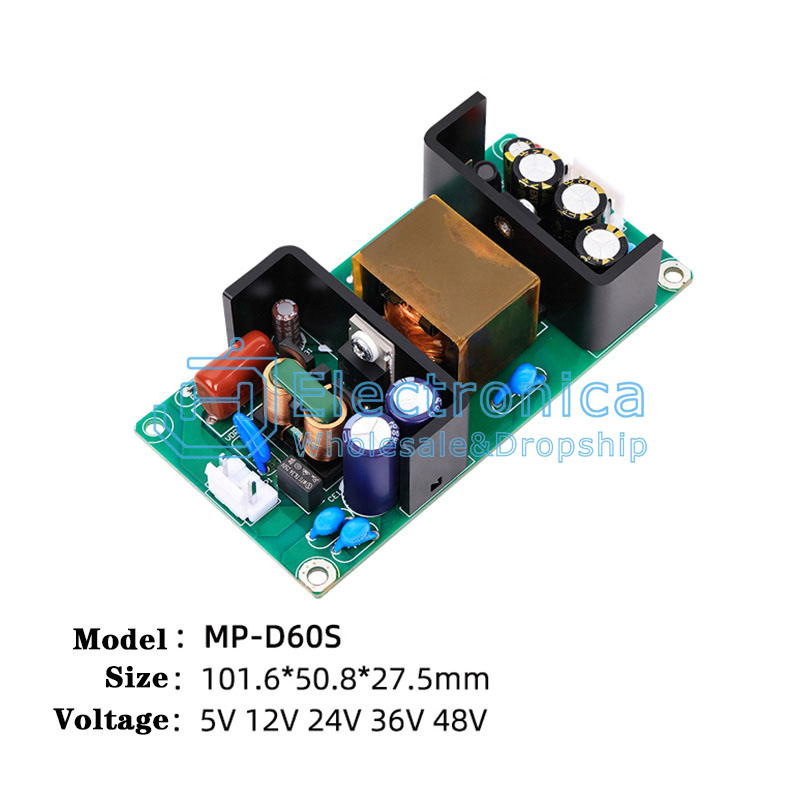

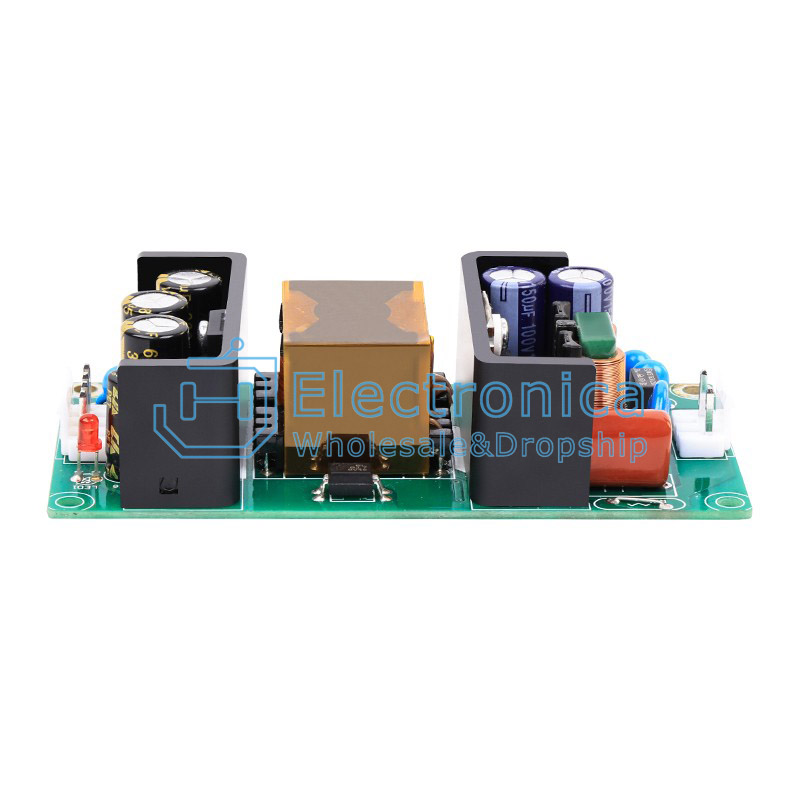

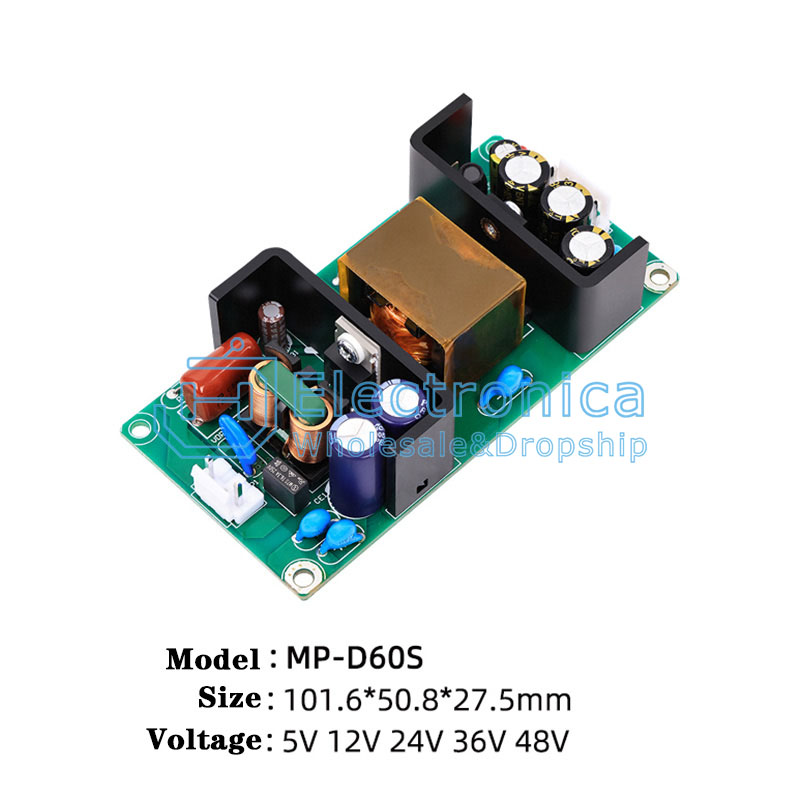

DC to DC 60W Switching Power Module

SKU : YXS831 Brand :

Price : $ 7.17~7.51

100 +: $7.17~7.51500 +: $7.17~7.511000 +: $7.17~7.51

style：

12V 5A
24V 2.5A

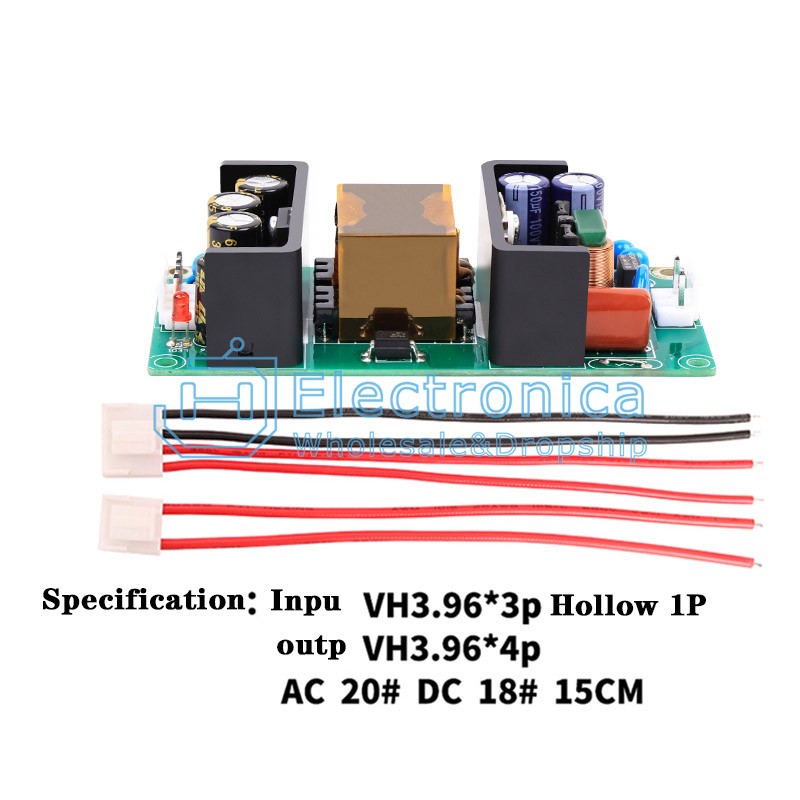

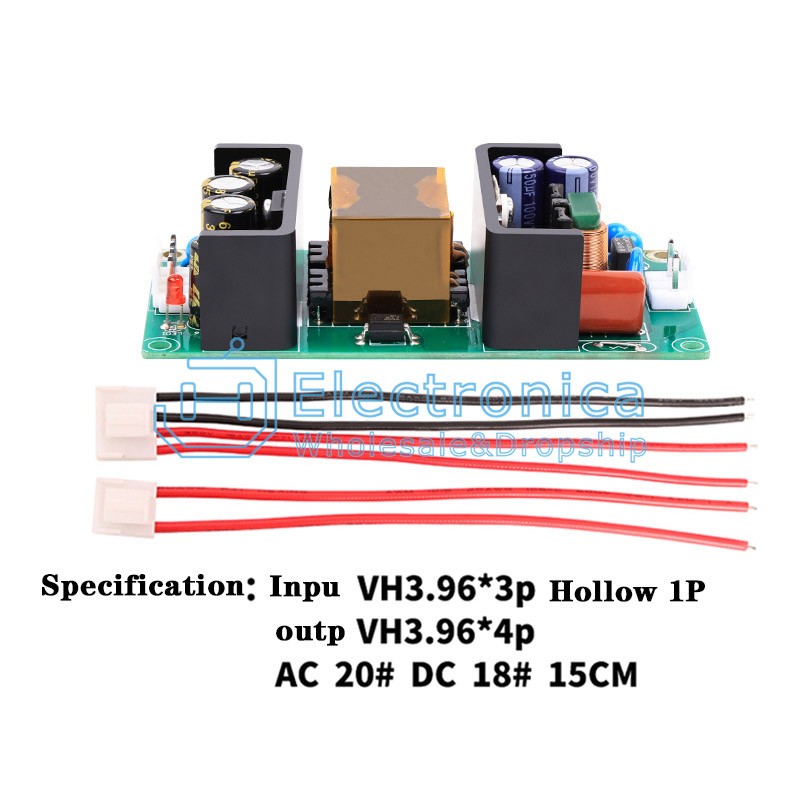

12V 5A(with cable)
24V 2.5A(with cable)

Quantity :

- +

ADD TO CART
