Description

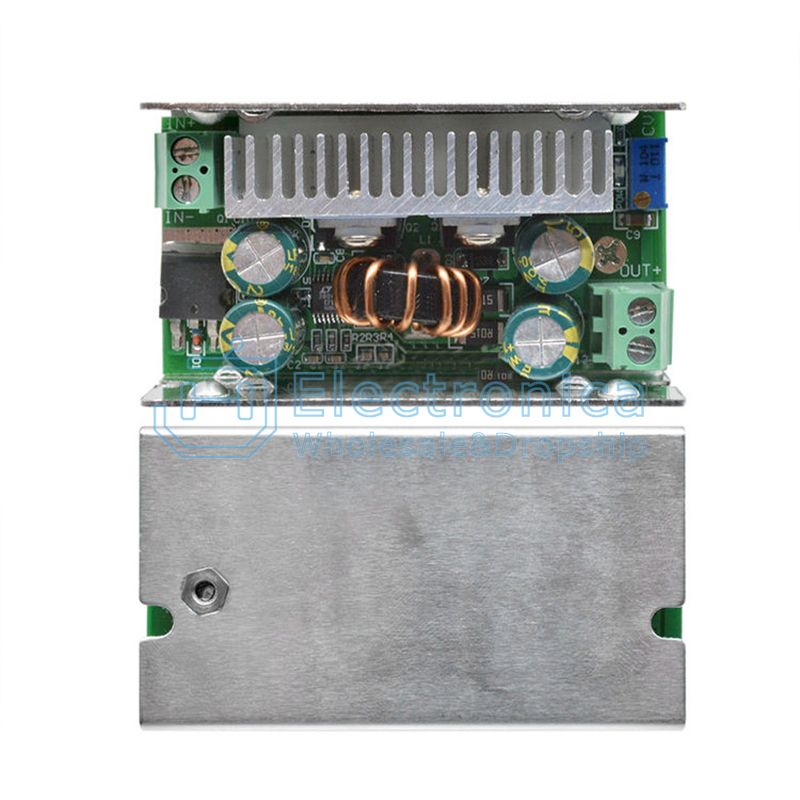

Name: 200W adjustable synchronous buck module
Type: Non-isolated step-down module (BUCK)

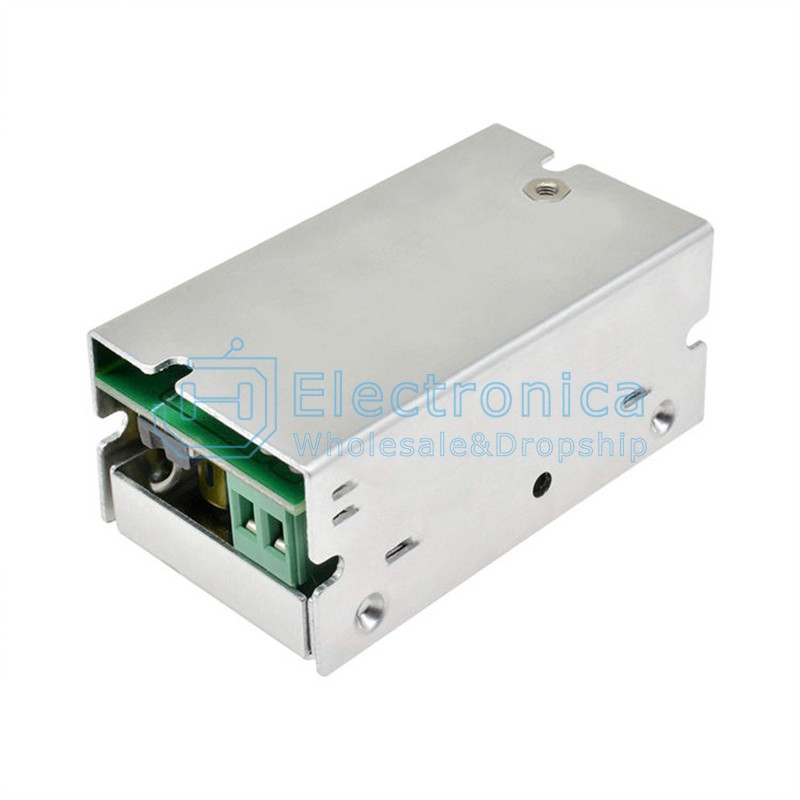

Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
Input voltage: 8-55V (limit 60V, please leave allowance)
Output voltage: 1-36V continuously adjustable (the default output 12V)
Output Current: Normal 10A , MAX15A
Output power: natural cooling ventilated long-term power 100W
To enhance heat dissipation up to 200W
Such as long working hours, please note left margin and make the heat rise
Operating temperature: -10 to +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94%
Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)

Reverse polarity protection: (reverse does not burn)

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

200W 15A Adjustable DC-DC Step Down Converter Module

SKU : YXB401 Brand : JH Sourcing

Price : $ 3.66~4.19

100 +: $3.66~4.19500 +: $3.66~4.191000 +: $3.66~4.19

Style：

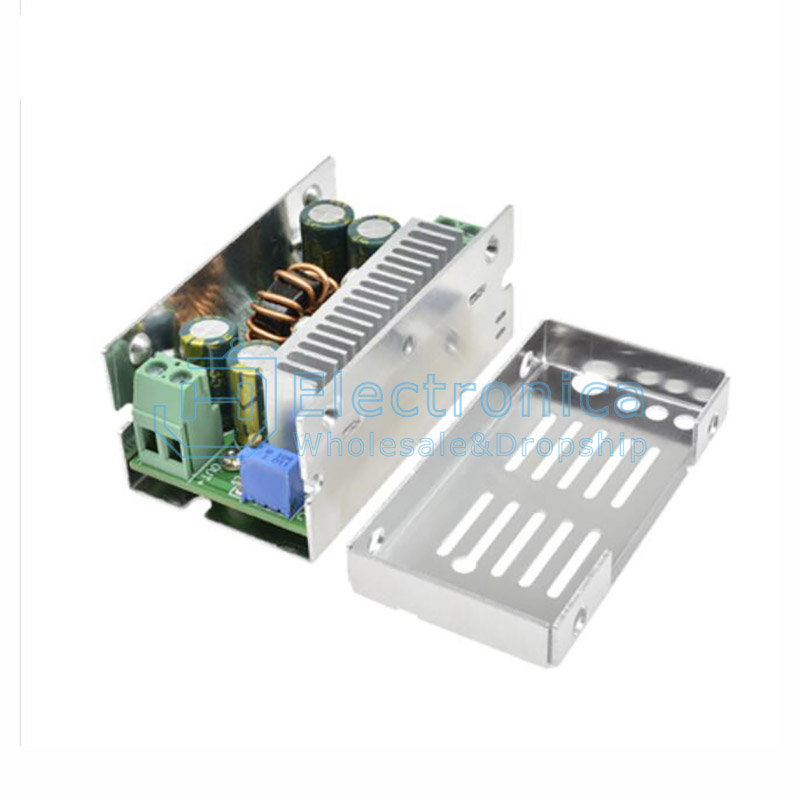

8-55V to 1-36V 15A 200W

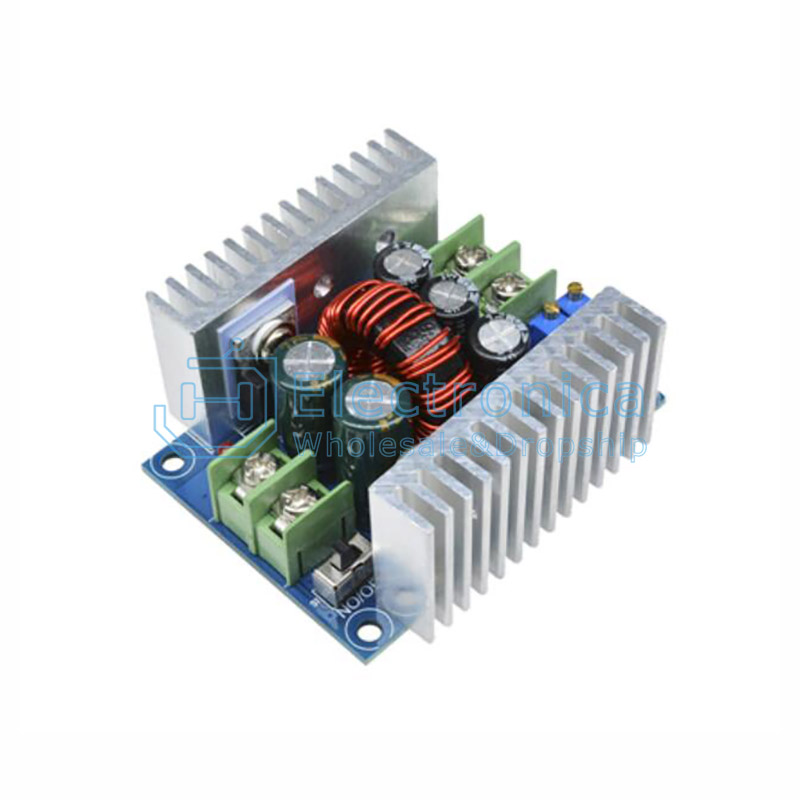

6-40V to 1.2-35V 20A 300W

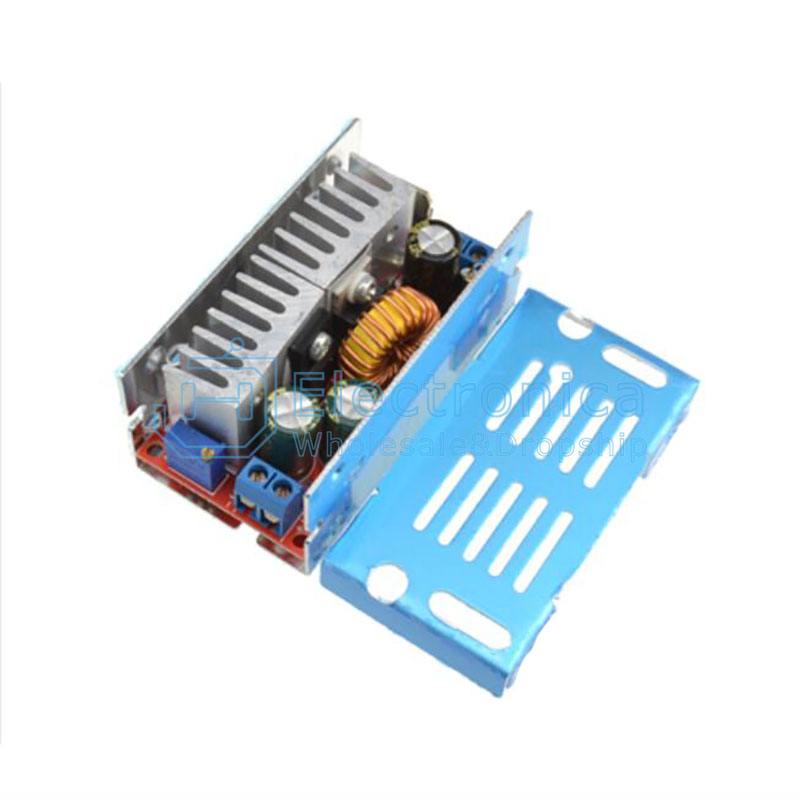

4.5-32V to 0.8V-30V 12A with case
